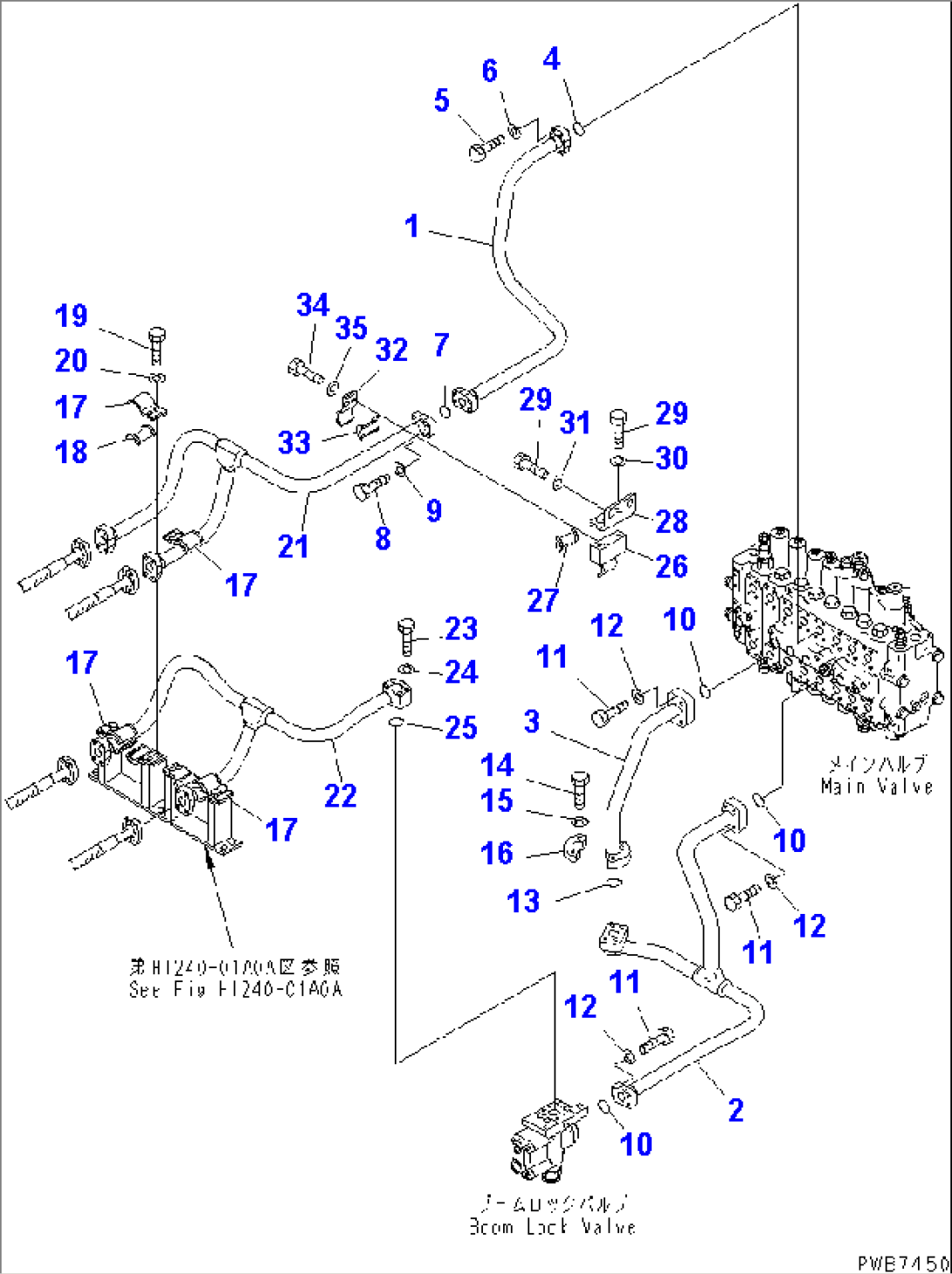

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-62-61432 | TUBE | 12001-12283 | |
| 2 | 207-62-61412 | TUBE | 12001-@ | |
| 3 | 207-62-61422 | TUBE | 10001-@ | |
| 4 | 07000-13035 | O-RING | 10001-@ | |
| 5 | 07372-21040 | BOLT | 10001-@ | |
| 6 | 01643-51032 | WASHER | 10001-@ | |
| 7 | 07000-13035 | O-RING | 10001-12283 | |
| 8 | 07372-21040 | BOLT | 10001-12283 | |
| 9 | 01643-51032 | WASHER | 10001-12283 | |
| 10 | 07000-13035 | O-RING | 10001-@ | |
| 11 | 07372-21040 | BOLT | 10001-@ | |
| 12 | 01643-51032 | WASHER | 10001-@ | |
| 13 | 07000-13032 | O-RING | 10001- | |
| 14 | 07372-21035 | BOLT | 10001- | |
| 15 | 01643-51032 | WASHER | 10001- | |
| 16 | 07371-31049 | FLANGE | 10001- | |
| 17 | 207-62-52430 | CLAMP | 12001- | |
| 18 | 205-62-73430 | SEAT | 10001- | |
| 19 | 01010-81230 | BOLT | 12001- | |
| 20 | 01643-31232 | WASHER | 12001- | |
| 21 | 207-62-61631 | TUBE | 12001- | |
| 22 | 207-62-61840 | TUBE | 12001- | |
| 23 | 01010-81060 | BOLT | 12001- | |
| 24 | 01643-31032 | WASHER | 12001- | |
| 25 | 07000-13035 | O-RING | 10001- | |
| 26 | 207-62-61512 | BRACKET | 12001- | |
| 27 | 205-62-73430 | SEAT | 10001- | |
| 28 | 207-62-61940 | BRACKET | 12001- | |
| 29 | 01010-81230 | BOLT | 12001- | |
| 30 | 01643-31232 | WASHER | 10001- | |
| 31 | 175-54-34170 | WASHER | 10001- | |
| 32 | 207-62-52430 | CLAMP | 10001- | |
| 33 | 205-62-73430 | SEAT | 10001- | |
| 34 | 01010-81230 | BOLT | 12001- | |
| 35 | 01643-31232 | WASHER | 12001- |
