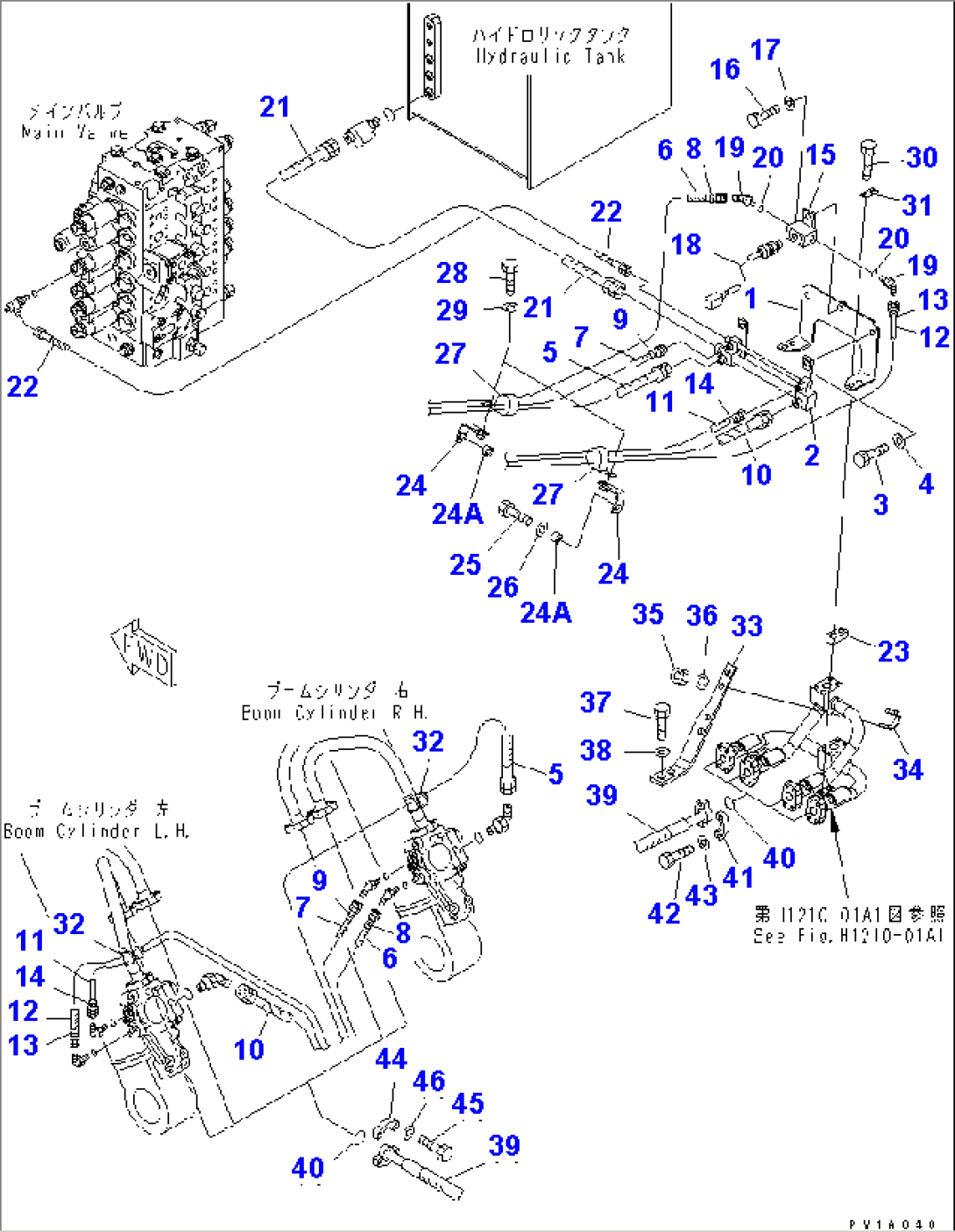

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22U-62-27290 | BRACKET | 20001-@ | |
| 2 | 22U-62-27270 | TUBE | 20001-@ | |
| 3 | 01010-81235 | BOLT | 20001-@ | |
| 4 | 01643-31232 | WASHER | 20001-@ | |
| 5 | 07621-004A5 | HOSE | 20001-@ | |
| 6 | 07637-00211 | HOSE | 20001-@ | |
| 7 | 07184-00210 | HOSE | 20001-@ | |
| 8 | 20Y-62-22790 | BAND¤ RED | 20001-@ | |
| 9 | 20Y-62-22850 | BAND¤ GREEN | 20001-@ | |
| 10 | 07621-00410 | HOSE | 20001-@ | |
| 11 | 07637-00206 | HOSE | 20001-@ | |
| 12 | 07184-00206 | HOSE | 20001-@ | |
| 13 | 20Y-62-22790 | BAND¤ RED | 20001-@ | |
| 14 | 20Y-62-22850 | BAND¤ GREEN | 20001-@ | |
| 15 | 22U-62-27280 | BLOCK | 20001-@ | |
| 16 | 01010-81230 | BOLT | 20001-@ | |
| 17 | 01643-31232 | WASHER | 20001-@ | |
| 18 | 7861-92-1610 | SENSOR | 20001-@ | |
| 19 | 07236-10210 | ELBOW | 20001-@ | |
| 20 | 07002-11423 | O-RING | 20001-@ | |
| 21 | 07623-005A6 | HOSE | 20001-@ | |
| 22 | 22U-62-27340 | HOSE ASS'Y | 20001-@ | |
| 23 | 20Y-62-13340 | PLATE | 20001-@ | |
| 24 | 207-62-51270 | BRACKET | 20001-@ | |
| 24A | 195-33-11220 | SPACER | 20005-@ | |
| 25 | 07372-81250 | BOLT | 20005-@ | |
| 01010-81225 | BOLT | 20001-20004 | ||
| 26 | 01643-31232 | WASHER | 20001-@ | |
| 27 | 04434-53212 | CLIP | 20001-@ | |
| 28 | 01010-81225 | BOLT | 20001-@ | |
| 29 | 01643-31232 | WASHER | 20001-@ | |
| 30 | 01010-81260 | BOLT | 20001-@ | |
| 31 | 20Y-62-13450 | PLATE | 20001-@ | |
| 32 | 08034-20823 | BAND | 20001-@ | |
| 33 | 22U-62-21411 | PLATE | 20001-@ | |
| 34 | 07283-32738 | CLIP | 20001-@ | |
| 35 | 01597-01009 | NUT | 20001-@ | |
| 36 | 01643-31032 | WASHER | 20001-@ | |
| 37 | 01010-81230 | BOLT | 20001-@ | |
| 38 | 01643-31032 | WASHER | 20001-@ | |
| 39 | 20Y-62-17480 | HOSE | 20001-@ | |
| 40 | 07000-13025 | O-RING | 20001-@ | |
| 41 | 07371-30640 | FLANGE | 20001-@ | |
| 42 | 07372-21035 | BOLT | 20001-@ | |
| 43 | 01643-51032 | WASHER | 20001-@ | |
| 44 | 07371-30640 | FLANGE | 20001-@ | |
| 45 | 07372-21035 | BOLT | 20001-@ | |
| 46 | 01643-51032 | WASHER | 20001-@ |
