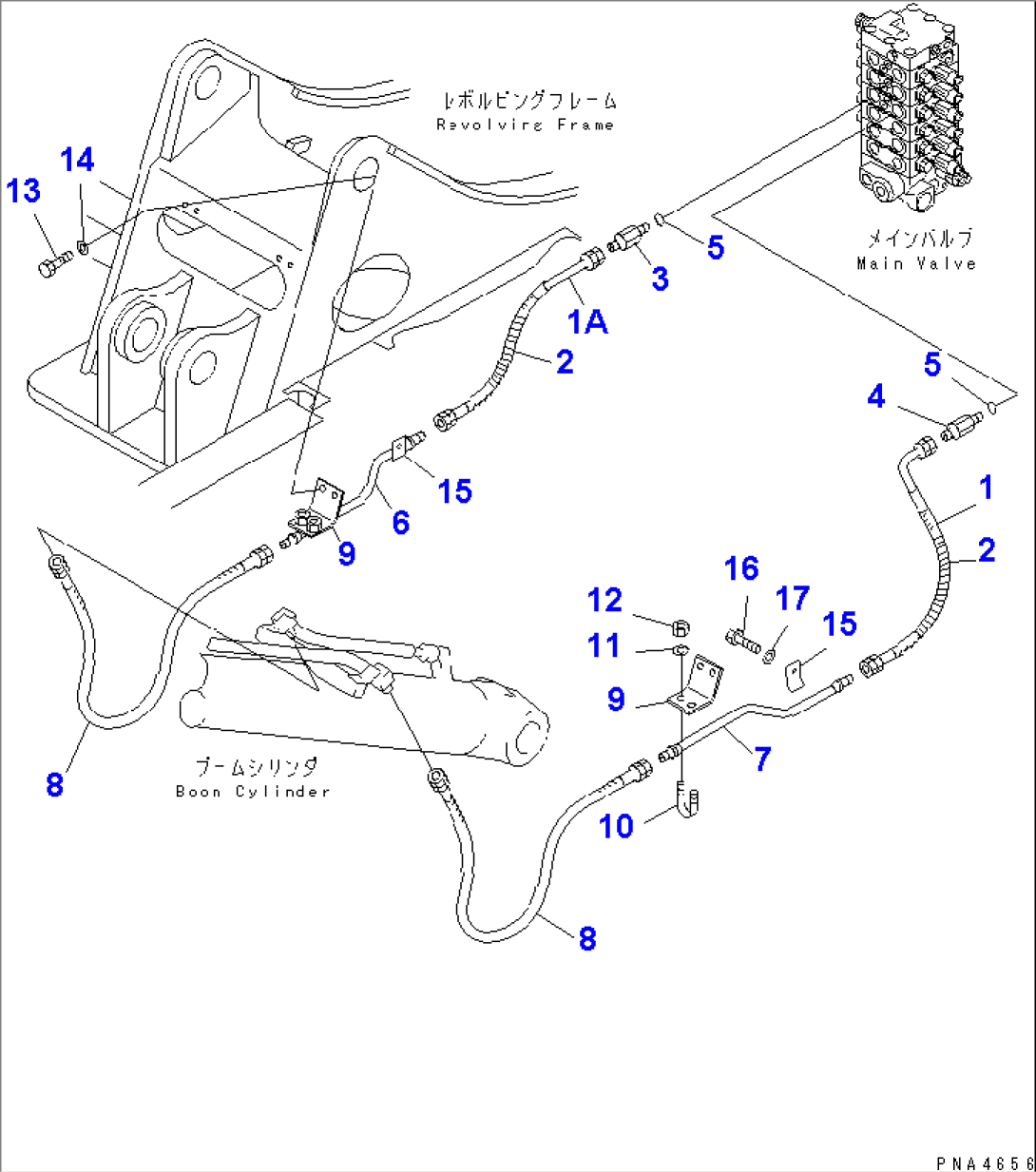

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 201-62-71490 | HOSE | 52374-58000 | |
| 201-62-71490 | HOSE | 45001-52373 | ||
| 1A | 201-62-74820 | HOSE | 52374-58000 | |
| 2 | 203-62-32440 | COVER | 45001-58000 | |
| 3 | 201-62-71830 | NIPPLE | 45001-@ | |
| 4 | 201-946-7520 | NIPPLE | 45001-@ | |
| 5 | 07002-12434 | O-RING | 45001-@ | |
| 6 | 201-62-71520 | TUBE | 45001-@ | |
| 7 | 201-62-71510 | TUBE | 45001-@ | |
| 8 | 201-62-71150 | HOSE | 45001-@ | |
| 9 | 201-62-74270 | BRACKET | 52374-58000 | |
| 201-62-71550 | BRACKET | 45001-52373 | ||
| 10 | 07283-22236 | CLIP | 45001-58000 | |
| 11 | 01643-31032 | WASHER | 45001-58000 | |
| 12 | 01599-01011 | NUT | 45001-58000 | |
| 13 | 01010-81030 | BOLT | 45001-@ | |
| 14 | 01643-31032 | WASHER | 45001-@ | |
| 15 | 201-62-21890 | CLAMP | 45001-58000 | |
| 16 | 01010-81025 | BOLT | 45001-58000 | |
| 17 | 01643-31032 | WASHER | 45001-58000 |
