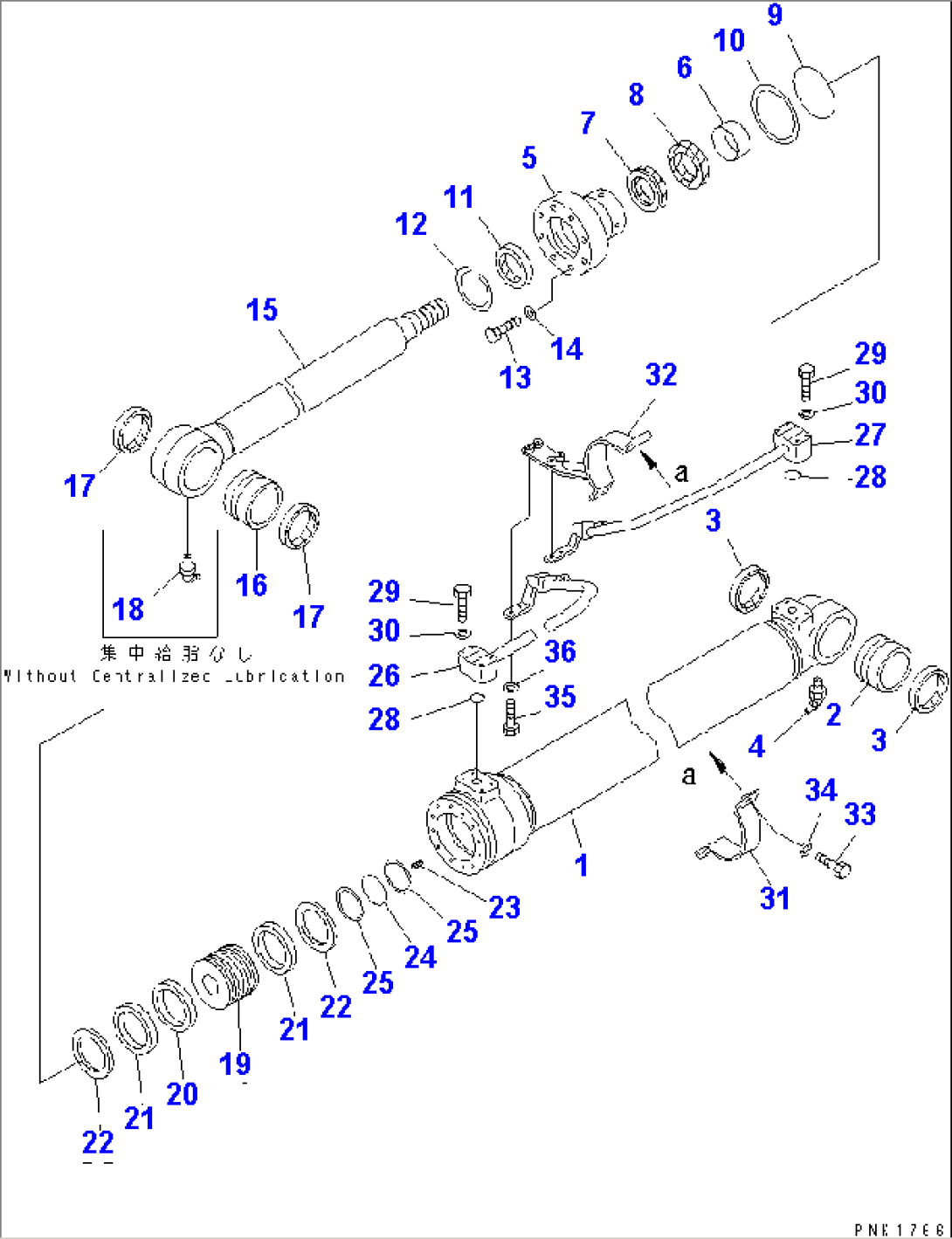

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\202-63-X9050) | CYLINDER GROUP,(L.H.) | 46473- | |
| G1 | (\8\202-63-X7700) | CYLINDER GROUP,(L.H.) | 45000-46472 | |
| G2 | (\8\202-63-X9060) | CYLINDER GROUP,(R.H.) | 46473- | |
| G2 | (\8\202-63-X7710) | CYLINDER GROUP,(R.H.) | 45000-46472 | |
| ==================== | ||||
| 202-63-07700 | CYLINDER ASS'Y,BOOM | 45000- | ||
| 1 | 202-63-55140 | CYLINDER | 45000- | |
| 2 | 203-70-66120 | BUSHING | 45000- | |
| 3 | 07145-00070 | SEAL,DUST (KIT) | 40001- | |
| 4 | 07020-00675 | FITTING,GREASE | 40001- | |
| 5 | 707-27-95921 | HEAD,CYLINDER | 45000- | |
| 6 | 707-52-90420 | BUSHING | 45000- | |
| 7 | 707-51-65030 | PACKING,ROD (KIT) | 40001- | |
| 8 | 707-51-65630 | RING,BUFFER (KIT) | 40001- | |
| 9 | 07000-15085 | O-RING (KIT) | 45000- | |
| 10 | 707-35-90970 | RING,BACK-UP (KIT) | 45000- | |
| 11 | 144-63-92170 | SEAL,DUST (KIT) | 40001- | |
| 12 | 07179-12079 | RING,SNAP | 40001- | |
| 13 | 01010-81465 | BOLT | 40001- | |
| 14 | 705-17-04980 | WASHER | 40001- | |
| 15 | 202-63-55120 | ROD | 45000- | |
| 16 | 203-70-66120 | BUSHING | 45000- | |
| 17 | 07145-00070 | SEAL,DUST (KIT) | 40001- | |
| 18 | 07020-00675 | FITTING,GREASE | 40001- | |
| 19 | 707-36-95531 | PISTON | 45000- | |
| 20 | 707-44-95180 | RING,PISTON (KIT) | 40001- | |
| 21 | 707-39-95120 | RING,WEAR (KIT) | 40001- | |
| 22 | 707-44-95911 | RING | 40001- | |
| 23 | 01310-01016 | SCREW | 45000- | |
| 24 | 707-34-55020 | O-RING (KIT) | 45000- | |
| 25 | 707-35-90610 | RING,BACK-UP (KIT) | 45000- | |
| 26 | 202-63-55170 | TUBE,L.H. | 45000- | |
| 202-63-55270 | TUBE,R.H. | 45000- | ||
| 27 | 202-63-54380 | TUBE,L.H. | 40001- | |
| 202-63-54480 | TUBE,R.H. | 40001- | ||
| 28 | 07000-13025 | O-RING (KIT) | 40001- | |
| 29 | 01010-80850 | BOLT | 45000- | |
| 30 | 01643-50823 | WASHER | 40001- | |
| 31 | 707-88-96950 | BAND | 40001- | |
| 32 | 707-88-95480 | BRACKET | 40001- | |
| 33 | 01010-81035 | BOLT | 45000- | |
| 34 | 01643-51032 | WASHER | 40001- | |
| 35 | 01010-81030 | BOLT | 40001- | |
| 36 | 01643-31032 | WASHER | 40001- | |
| ==================== | ||||
| 707-98-36250 | SERVICE KIT,BOOM | 45000- |
