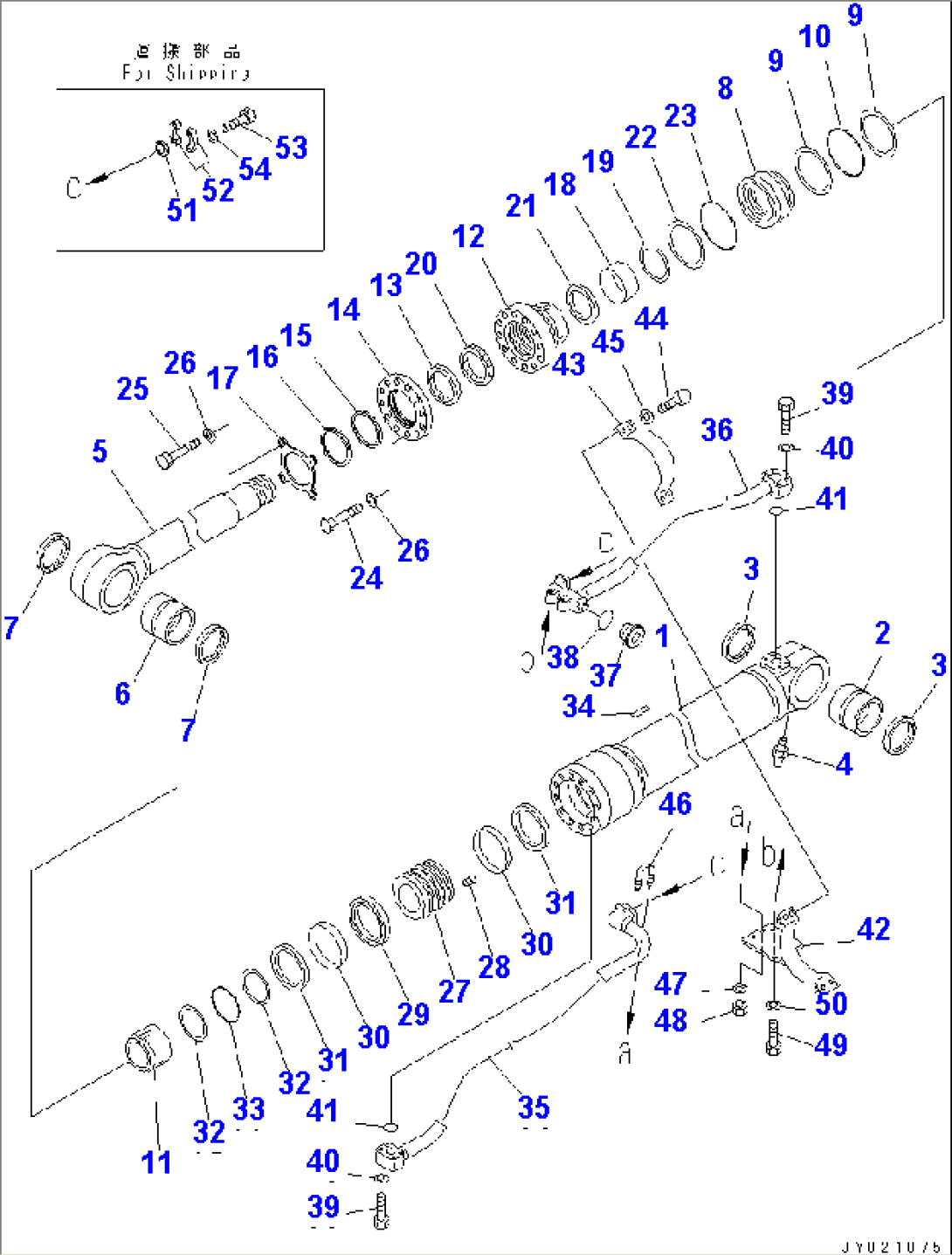

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\707-01-XP060) | CYLINDER GROUP,L.H. (FINAL COATING) | 50473-52628 | |
| G-2 | (\8\707-01-XP070) | CYLINDER GROUP,R.H. (FINAL COATING) | 50473-52628 | |
| ==================== | ||||
| 707-01-0K050 | CYLINDER ASS'Y | 50473-52628 | ||
| 1 | 707-13-16960 | CYLINDER | 50473-52628 | |
| 2 | 707-76-10270 | BUSHING | 50473-@ | |
| 3 | 07145-10100 | SEAL,DUST (KIT) | 50473-@ | |
| 4 | 07020-00000 | FITTING,GREASE | 50473-@ | |
| 5 | 707-58-11830 | ROD | 50473-@ | |
| 6 | 707-76-10130 | BUSHING | 50473-@ | |
| 7 | 07145-10100 | SEAL,DUST (KIT) | 50473-@ | |
| 8 | 707-71-71610 | COLLAR | 50473-@ | |
| 9 | 707-35-91640 | RING,BACK-UP (KIT) | 50473-@ | |
| 10 | 07000-55150 | O-RING (KIT) | 50473-@ | |
| 11 | 707-71-61140 | PLUNGER | 50473-@ | |
| 12 | 707-27-16580 | HEAD | 50473-52628 | |
| 13 | 707-56-11740 | SEAL,DUST (KIT) | 50473-@ | |
| 14 | 707-88-05010 | COLLAR | 50473-@ | |
| 15 | 707-56-11651 | SEAL,DUST (KIT) | 50473-52628 | |
| 16 | 707-88-36541 | RING | 50473-@ | |
| 17 | 707-88-05020 | PLATE | 50473-@ | |
| 18 | 707-52-90851 | BUSHING | 50473-@ | |
| 19 | 707-75-11040 | RING,SNAP | 50473-@ | |
| 20 | 707-51-11732 | PACKING,ROD (KIT) | 50473-@ | |
| 21 | 707-51-11640 | RING,BUFFER (KIT) | 50473-@ | |
| 22 | 707-35-91640 | RING,BACK-UP (KIT) | 50473-@ | |
| 23 | 07000-55150 | O-RING (KIT) | 50473-@ | |
| 24 | 01011-82010 | BOLT | 50473-@ | |
| 25 | 01011-82015 | BOLT | 50473-@ | |
| 26 | 707-88-75310 | WASHER | 50473-@ | |
| 27 | 707-36-16580 | PISTON | 50473-@ | |
| 28 | 01310-01216 | SCREW | 50473-@ | |
| 29 | 707-44-16180 | RING,PISTON (KIT) | 50473-@ | |
| 30 | 707-39-16120 | RING,WEAR (KIT) | 50473-@ | |
| 31 | 707-44-16910 | RING | 50473-@ | |
| 32 | 07001-05100 | RING,BACK-UP (KIT) | 50473-@ | |
| 33 | 07000-55100 | O-RING (KIT) | 50473-@ | |
| 34 | 700-11-31980 | PLATE, NAME | 50473-@ | |
| 35 | 707-86-12790 | TUBE,L.H. | 50473-@ | |
| 35 | 707-86-12800 | TUBE,R.H. | 50473-@ | |
| 36 | 707-86-00930 | TUBE,L.H. | 50473-@ | |
| 36 | 707-86-00940 | TUBE,R.H. | 50473-@ | |
| 37 | 707-87-14700 | PLUG | 50473-@ | |
| 38 | 07002-63034 | O-RING | 50473-@ | |
| 39 | 07372-21060 | BOLT | 50473-@ | |
| 40 | 01643-51032 | WASHER | 50473-@ | |
| 41 | 07000-53035 | O-RING (KIT) | 50473-@ | |
| 42 | 707-88-25370 | BRACKET,L.H. | 50473-@ | |
| 42 | 707-88-25380 | BRACKET,R.H. | 50473-@ | |
| 43 | 707-88-21660 | BAND | 50473-@ | |
| 44 | 07372-21240 | BOLT | 50473-@ | |
| 45 | 01643-51232 | WASHER | 50473-@ | |
| 46 | 07283-33442 | CLIP | 50473-@ | |
| 47 | 01643-31032 | WASHER | 50473-@ | |
| 48 | 01597-01009 | NUT | 50473-@ | |
| 49 | 01010-81025 | BOLT | 50473-@ | |
| 50 | 01643-31032 | WASHER | 50473-@ | |
| 51 | 707-88-33040 | CAP | 50473-@ | |
| 52 | 07371-31049 | FLANGE,SPLIT | 50473-@ | |
| 53 | 07372-21035 | BOLT | 50473-@ | |
| 54 | 01643-51032 | WASHER | 50473-@ | |
| ==================== | ||||
| 707-99-72270 | SERVICE KIT | 50473-52628 |
