| Item | Part No. | Part Name | Qty | Serial No. |

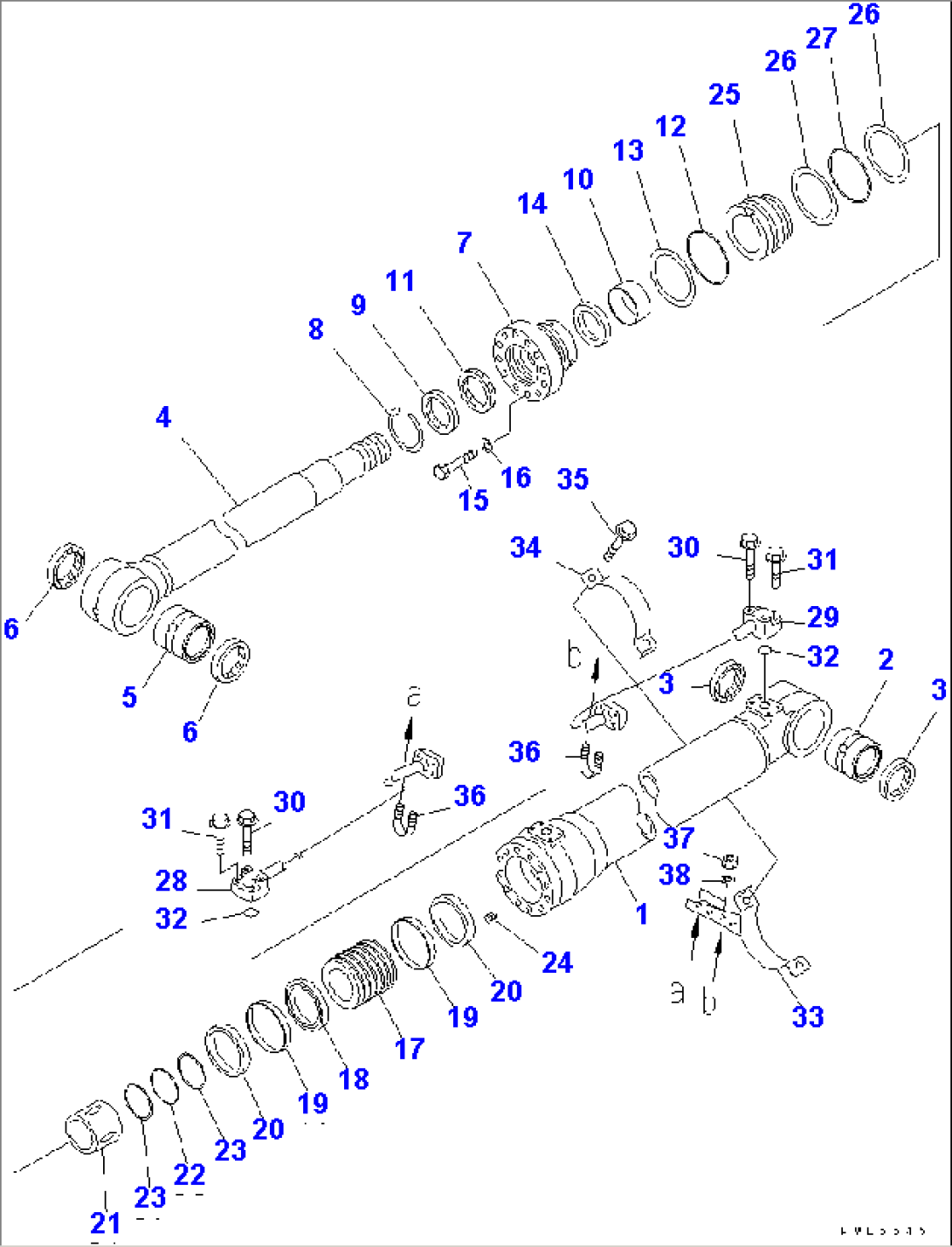

| G-1 | (\8\707-01-XZ880) | BOOM CYLINDER GROUP,L.H. (FINAL COATING) | 60001- | |
| G-2 | (\8\707-01-XZ890) | BOOM CYLINDER GROUP,R.H. (FINAL COATING) | 60001- | |
| ==================== | ||||
| 707-01-0A350 | CYLINDER ASS'Y | 60001- | ||
| 1 | 707-13-13470 | CYLINDER | 60001- | |
| 2 | 707-76-80431 | BUSHING | 60001- | |
| 3 | 07145-00080 | SEAL,DUST (KIT) | 60001- | |
| 4 | 707-58-90930 | ROD,PISTON | 60001- | |
| 5 | 707-76-80431 | BUSHING | 60001- | |
| 6 | 07145-00080 | SEAL,DUST (KIT) | 60001- | |
| 7 | 707-27-13921 | HEAD,CYLINDER | 60001- | |
| 8 | 07179-13104 | RING,SNAP | 60001- | |
| 9 | 195-63-94170 | SEAL,DUST (KIT) | 60001- | |
| 10 | 707-52-90680 | BUSHING | 60001- | |
| 11 | 707-51-90030 | PACKING,ROD (KIT) | 60001- | |
| 12 | 07000-15120 | O-RING (KIT) | 60001- | |
| 13 | 707-35-91320 | RING,BACK-UP (KIT) | 60001- | |
| 14 | 707-51-90640 | RING,BUFFER (KIT) | 60001- | |
| 15 | 01010-81670 | BOLT | 60001- | |
| 16 | 01643-51645 | WASHER | 60001- | |
| 17 | 707-36-13780 | PISTON | 60001- | |
| 18 | 707-44-13180 | RING,PISTON (KIT) | 60001- | |
| 19 | 707-39-13150 | RING,WEAR (KIT) | 60001- | |
| 20 | 707-44-13911 | RING | 60001- | |
| 21 | 707-71-60970 | PLUNGER | 60001- | |
| 22 | 07000-15080 | O-RING (KIT) | 60001- | |
| 23 | 707-35-90940 | RING,BACK-UP (KIT) | 60001- | |
| 24 | 01310-01216 | SCREW | 60001- | |
| 25 | 707-71-34630 | COLLAR | 60001- | |
| 26 | 707-35-91320 | RING,BACK-UP (KIT) | 60001- | |
| 27 | 07000-15120 | O-RING (KIT) | 60001- | |
| 28 | 707-86-66290 | TUBE,L.H. | 60001- | |
| 28 | 707-86-66320 | TUBE,R.H. | 60001- | |
| 29 | 707-86-66310 | TUBE,L.H. | 60001- | |
| 29 | 707-86-66330 | TUBE,R.H. | 60001- | |
| 30 | 01435-01055 | BOLT | 60001- | |
| 31 | 01435-01040 | BOLT | 60001- | |
| 32 | 07000-13030 | O-RING (KIT) | 60001- | |
| 33 | 707-88-22610 | BRACKET,L.H. | 60001- | |
| 33 | 707-88-22620 | BRACKET,R.H. | 60001- | |
| 34 | 707-88-21311 | BAND | 60001- | |
| 35 | 01435-01030 | BOLT | 60001- | |
| 36 | 07283-22738 | CLIP | 60001- | |
| 37 | 01599-01011 | NUT | 60001- | |
| 38 | 01643-31032 | WASHER | 60001- | |
| ==================== | ||||
| 707-99-47790 | SERVICE KIT | 60001- |
