| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81025 | BOLT | 4001-@ | |
| 2 | 01643-31032 | WASHER | 4001-@ | |
| 3 | 01010-81035 | BOLT | 4001-@ | |
| 4 | 01643-31032 | WASHER | 4001-@ | |
| 5 | 01010-81065 | BOLT | 4001-4242 | |
| 6 | 01643-31032 | WASHER | 4001-4242 |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc78us 6 s/n 4001 up (overseas version)
- Work equipment
- Boom (bolt) (attachment) (yellow)(#4001 4242)
Поиск по каталогу

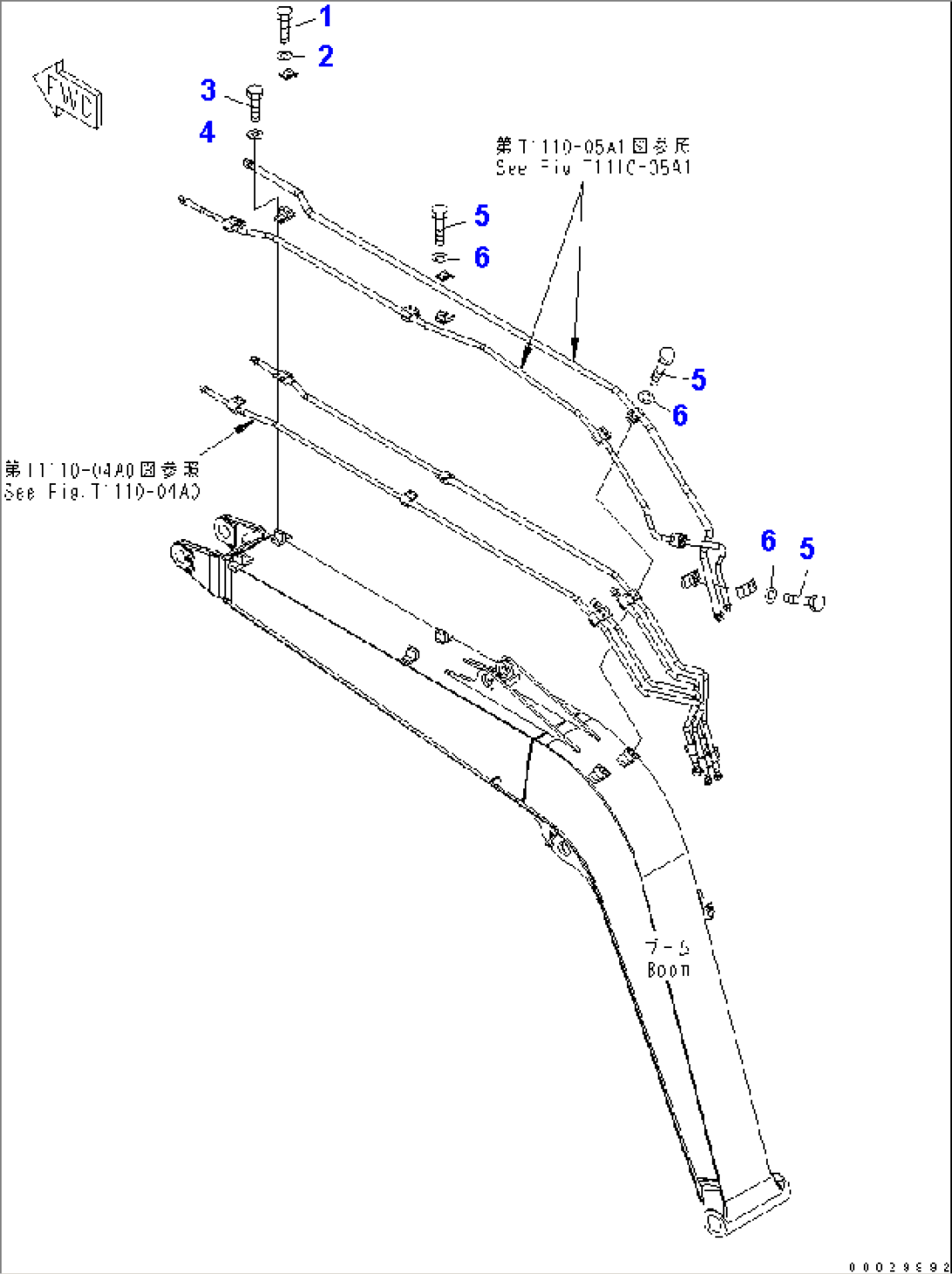

BOOM (BOLT) (ATTACHMENT) (YELLOW)(#4001-4242)
