| Item | Part No. | Part Name | Qty | Serial No. |

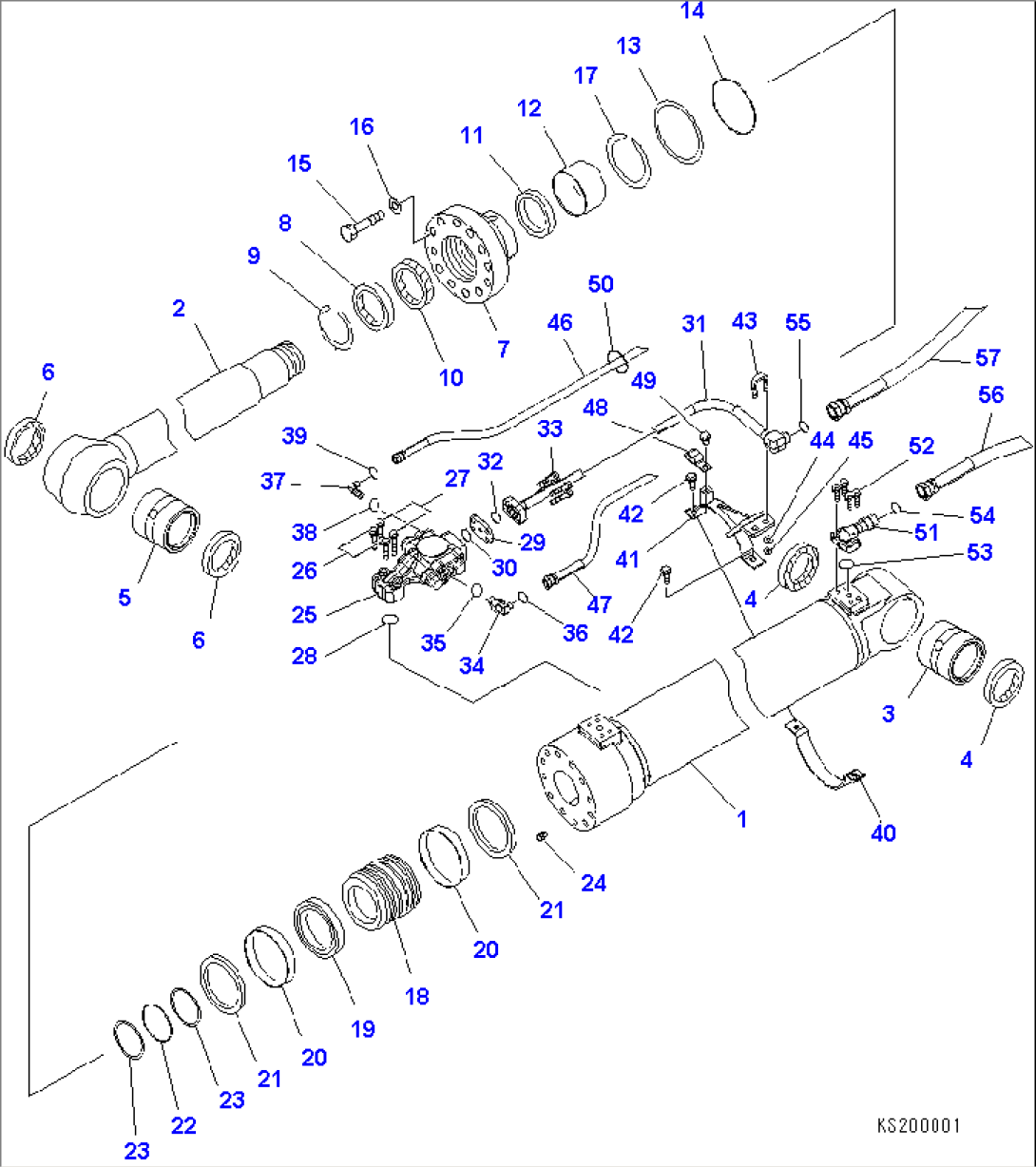

| G-1 | (\8\707-01-0M220) | CYLINDER GROUP,(FINAL COATING) | K45001- | |
| ==================== | ||||
| 707-01-0AE20 | CYLINDER ASS'Y | K45001- | ||
| 1 | 707-13-15480 | CYLINDER | K45001- | |
| 2 | 707-58-90F80 | ROD,PISTON | K45001- | |
| 3 | 707-76-90540 | BUSHING | K45001- | |
| 4 | 07145-00090 | SEAL,DUST (KIT) | K45001- | |
| 5 | 707-76-90490 | BUSHING | K45001- | |
| 6 | 07145-00090 | SEAL,DUST (KIT) | K45001- | |
| 7 | 707-27-15580 | HEAD,CYLINDER | K45001- | |
| 8 | 195-63-94170 | SEAL,DUST (KIT) | K45001- | |
| 9 | 07179-13104 | RING,SNAP | K45001- | |
| 10 | 707-51-90030 | PACKING,ROD (KIT) | K45001- | |
| 11 | 707-51-90650 | RING,BUFFER (KIT) | K45001- | |
| 12 | 707-52-90680 | BUSHING | K45001- | |
| 13 | 707-35-91660 | RING,BACK-UP (KIT) | K45001- | |
| 14 | 07000-15140 | O-RING (KIT) | K45001- | |
| 15 | 01010-82085 | BOLT | K45001- | |
| 16 | 707-88-75310 | WASHER | K45001- | |
| 17 | 707-75-90110 | RING,SNAP | K45001- | |
| 18 | 707-36-90560 | PISTON | K45001- | |
| 19 | 707-44-15150 | RING,PISTON (KIT) | K45001- | |
| 20 | 707-39-15110 | RING,WEAR (KIT) | K45001- | |
| 21 | 707-44-15911 | RING | K45001- | |
| 22 | 07000-15090 | O-RING (KIT) | K45001- | |
| 23 | 07001-05090 | RING,BACK-UP (KIT) | K45001- | |
| 24 | 01310-01216 | SCREW | K45001- | |
| 25 | 702-21-08330 | VALVE ASS'Y | K45001- | |
| 26 | 07375-21050 | BOLT | K45001- | |
| 27 | 07375-21060 | BOLT | K45001- | |
| 28 | 07000-13030 | O-RING | K45001- | |
| 29 | 21K-62-K1990 | ORIFICE | K45001- | |
| 30 | 07000-13030 | O-RING | K45001- | |
| 31 | 21K-62-K1711 | TUBE | K45001- | |
| 32 | 07000-13030 | O-RING | K45001- | |
| 33 | 07375-21045 | BOLT | K45001- | |
| 34 | 20J-62-11630 | ELBOW | K45477- | |
| 02782-10315 | ELBOW | K45001-K45476 | ||
| 35 | 07002-12034 | O-RING | K45001- | |
| 36 | 02896-11009 | O-RING | K45001- | |
| 37 | 02782-10210 | ELBOW | K45001- | |
| 38 | 07002-11423 | O-RING | K45001- | |
| 39 | 02896-11008 | O-RING | K45001- | |
| 40 | 21K-62-K1730 | BAND | K45001- | |
| 41 | 21K-62-K1721 | BRACKET | K45001- | |
| 42 | 01024-81035 | BOLT | K45001- | |
| 43 | 02783-32236 | CLIP | K45001- | |
| 44 | 01643-31032 | WASHER | K45001- | |
| 45 | 01597-01009 | NUT | K45001- | |
| 21K-62-K1741 | HOSE ASS'Y | K45001- | ||
| 46 | 02760-00229 | HOSE | K45001- | |
| 47 | 02760-00325 | HOSE | K45001- | |
| 48 | 04435-51812 | CLIP | K45001- | |
| 49 | 01024-81020 | BOLT | K45001- | |
| 50 | 08034-20834 | BAND | K45001- | |
| 51 | 21K-62-K1950 | TUBE | K45001- | |
| 52 | 07375-21035 | BOLT | K45001- | |
| 53 | 07000-13030 | O-RING | K45001- | |
| 54 | 02896-61015 | O-RING | K45001- | |
| 55 | 02896-61015 | O-RING | K45001- | |
| 56 | 21K-62-K2111 | HOSE | K45001- | |
| 57 | 21K-62-K2121 | HOSE | K45001- | |
| 707-99-56630 | SERVICE KIT | K45001- |
