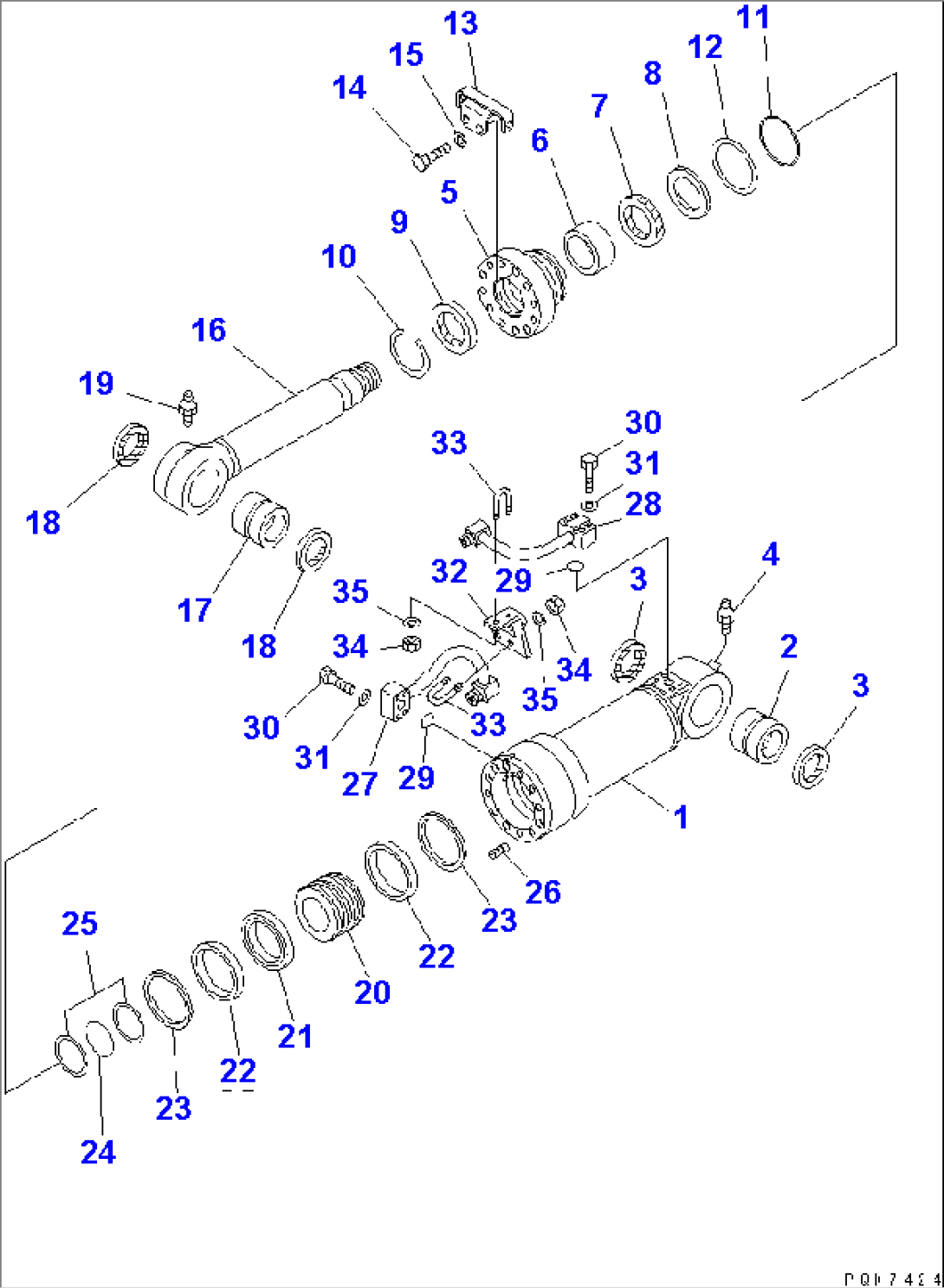

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\22B-63-X9010) | CYLINDER GROUP,BLADE LIFT¤ L.H. | | 46473- |
| G1 | (\8\22B-63-X2450) | CYLINDER GROUP,BLADE LIFT¤ L.H. | | 45000-46472 |
| G2 | (\8\22B-63-X9020) | CYLINDER GROUP,BLADE LIFT¤ R.H. | | 46473- |
| G2 | (\8\22B-63-X2460) | CYLINDER GROUP,BLADE LIFT¤ R.H. | | 45000-46472 |
| | ==================== | | |
| 22B-63-02450 | CYLINDER ASS'Y,BLADE LIFT¤ L.H. | | 45000- |
| 22B-63-02460 | CYLINDER ASS'Y,BLADE LIFT¤ R.H. | | 45000- |
| 1 | 22B-63-95140 | CYLINDER,BLADE LIFT¤ L.H. | | 45000- |
| 22B-63-95240 | CYLINDER,BLADE LIFT¤ R.H. | | 45000- |
| 2 | 707-76-70230 | BUSHING | | 40001- |
| 3 | 07145-00070 | SEAL,DUST (KIT) | | 40001- |
| 4 | 07020-00000 | FITTING,GREASE | | 40001- |
| 5 | 707-27-11971 | HEAD,CYLINDER | | 45000- |
| 6 | 707-52-90050 | BUSHING | | 40001- |
| 7 | 707-51-75030 | PACKING,ROD (KIT) | | 40001- |
| 8 | 707-51-75630 | RING,BUFFER (KIT) | | 40001- |
| 9 | 114-63-94170 | SEAL,DUST (KIT) | | 40001- |
| 10 | 07179-13089 | RING,SNAP | | 40001- |
| 11 | 07000-15105 | O-RING (KIT) | | 45000- |
| 12 | 707-35-91150 | RING,BACK-UP (KIT) | | 45000- |
| 13 | 707-88-84850 | BRACKET,L.H. | | 45000- |
| 707-88-84860 | BRACKET,R.H. | | 45000- |
| 14 | 01010-81670 | BOLT | | 40001- |
| 15 | 01643-51645 | WASHER | | 40001- |
| 16 | 22B-63-95120 | ROD,PISTON | | 45000- |
| 17 | 707-76-70230 | BUSHING | | 40001- |
| 18 | 07145-00070 | SEAL,DUST (KIT) | | 40001- |
| 19 | 07020-00000 | FITTING,GREASE | | 40001- |
| 20 | 707-36-11661 | PISTON | | 45000- |
| 21 | 707-44-11280 | RING,PISTON (KIT) | | 40001- |
| 22 | 707-39-11510 | RING,WEAR (KIT) | | 40001- |
| 23 | 707-44-11920 | RING | | 40001- |
| 24 | 07000-15070 | O-RING | | 45000- |
| 25 | 707-35-90360 | RING,BACK-UP | | 45000- |
| 26 | 01310-01216 | SCREW | | 45000- |
| 27 | 22B-63-95170 | TUBE,(L.H.) | | 45000- |
| 22B-63-95270 | TUBE,(R.H.) | | 45000- |
| 28 | 21Y-63-92180 | TUBE,(L.H.) | | 45000- |
| 21Y-63-92280 | TUBE,(R.H.) | | 45000- |
| 29 | 07000-13025 | O-RING (KIT) | | 40001- |
| 30 | 01010-80850 | BOLT | | 40001- |
| 31 | 01643-50823 | WASHER | | 40001- |
| 32 | 21Y-63-92190 | BRACKET,(L.H.) | | 40001- |
| 21Y-63-92290 | BRACKET,(R.H.) | | 40001- |
| 33 | 07283-22236 | CLIP | | 40001- |
| 34 | 01599-01011 | NUT | | 40001- |
| 35 | 01643-31032 | WASHER | | 40001- |
| | ==================== | | |
| 707-99-44270 | SERVICE KIT,BLADE CYLINDER | | 45000- |
