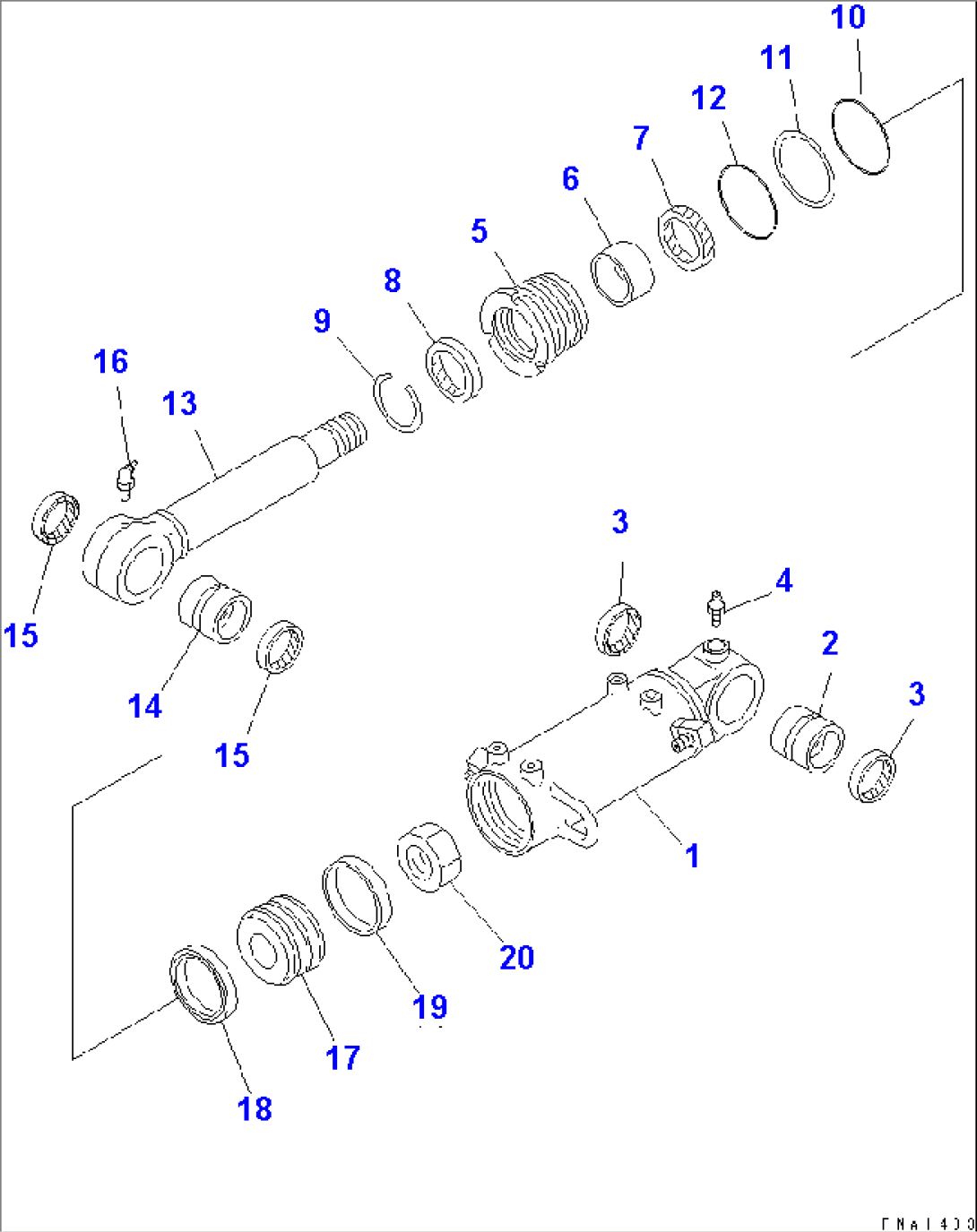

| Item | Part No. | Part Name | Qty | Serial No. |
| 20U-63-02650 | BLADE CYLINDER ASS'Y,(BLACK GRAY) | 18001- | ||
| 20U-63-02251 | BLADE CYLINDER ASS'Y | 14993-18000 | ||
| 20U-63-02250 | BLADE CYLINDER ASS'Y | 8001-14992 | ||
| 1 | 20U-63-96340 | CYLINDER,BLADE | 8001- | |
| 2 | 707-76-55430 | BUSHING | 14993- | |
| 07144-10506 | BUSHING | 8001-14992 | ||
| 3 | 07145-00055 | SEAL,DUST (KIT) | 8001- | |
| 4 | 07020-00000 | FITTING,GREASE | 8001- | |
| 5 | 707-29-10720 | HEAD,CYLINDER | 8001- | |
| 6 | 07177-05030 | BUSHING | 8001- | |
| 7 | 707-51-50211 | PACKING,ROD (KIT) | 8001- | |
| 8 | 176-63-92240 | SEAL,DUST (KIT) | 8001- | |
| 9 | 07179-12062 | RING,SNAP | 8001- | |
| 10 | 07000-12095 | O-RING (KIT) | 8001- | |
| 11 | 07146-02096 | RING,BACK-UP (KIT) | 8001- | |
| 12 | 07000-12100 | O-RING (KIT) | 8001- | |
| 13 | 20T-63-97121 | ROD,PISTON | 8001- | |
| 14 | 707-76-55430 | BUSHING | 14993- | |
| 07144-10506 | BUSHING | 8001-14992 | ||
| 15 | 07145-00055 | SEAL,DUST (KIT) | 8001- | |
| 16 | 07020-00675 | FITTING,GREASE | 8001- | |
| 17 | 707-36-10340 | PISTON | 8001- | |
| 18 | 707-44-10180 | RING,PISTON (KIT) | 8001- | |
| 19 | 07156-01012 | RING,WEAR (KIT) | 8001- | |
| 20 | 01580-03629 | NUT | 8001- | |
| SERVICE KIT | ||||
| KIT | 707-98-32120 | SERVICE KIT,BLADE CYLINDER | 8001- |
