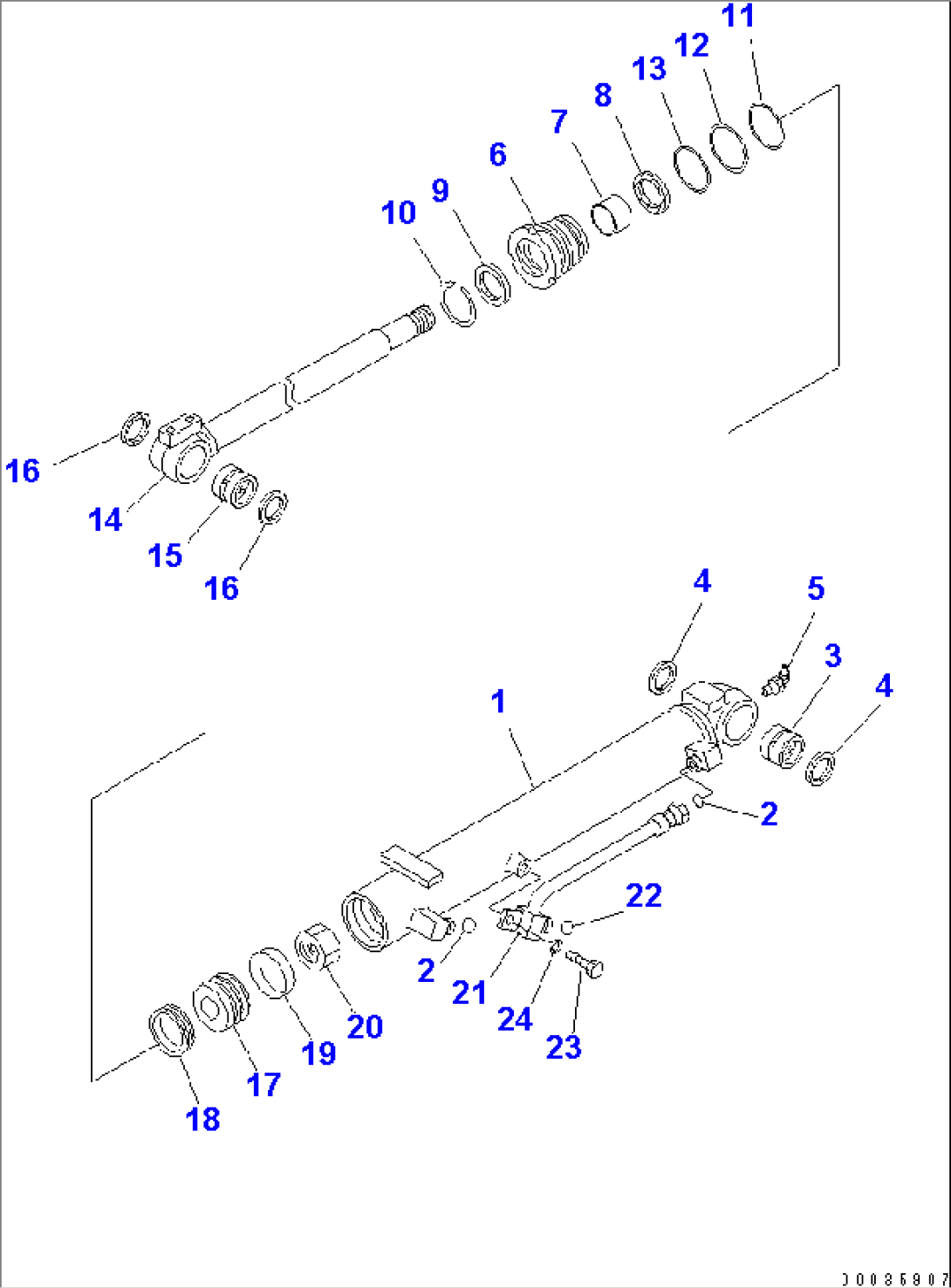

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-00-XG340) | CYLINDER GROUP | 5001- | |
| ==================== | ||||
| 707-00-0G340 | CYLINDER ASS'Y | 5001- | ||
| 1 | 721-11-60890 | CYLINDER | 5001- | |
| 2 | 02896-11009 | O-RING (KIT) | 5001- | |
| 3 | 707-76-35350 | BUSHING | 5001- | |
| 4 | 07145-00035 | SEAL,DUST (KIT) | 5001- | |
| 5 | 07020-00900 | FITTING,GREASE | 5001- | |
| 6 | 707-29-60760 | HEAD,CYLINDER | 5001- | |
| 7 | 07177-03525 | BUSHING | 5001- | |
| 8 | 707-51-35210 | PACKING,ROD (KIT) | 5001- | |
| 9 | 175-63-75190 | SEAL,DUST (KIT) | 5001- | |
| 10 | 07179-12047 | RING,SNAP | 5001- | |
| 11 | 07000-12055 | O-RING (KIT) | 5001- | |
| 12 | 07146-02056 | RING,BACK-UP (KIT) | 5001- | |
| 13 | 07000-12060 | O-RING (KIT) | 5001- | |
| 14 | 721-58-35610 | ROD,PISTON | 5001- | |
| 15 | 707-76-35350 | BUSHING | 5001- | |
| 16 | 07145-00035 | SEAL,DUST (KIT) | 5001- | |
| 17 | 707-36-60140 | PISTON | 5001- | |
| 18 | 707-44-60180 | RING,PISTON (KIT) | 5001- | |
| 19 | 707-39-60190 | RING,WEAR (KIT) | 5001- | |
| 20 | 707-67-24010 | NUT | 5001- | |
| 21 | 707-86-39781 | TUBE | 5001- | |
| 22 | 02896-11009 | O-RING (KIT) | 5001- | |
| 23 | 01010-81020 | BOLT | 5001- | |
| 24 | 01643-31032 | WASHER | 5001- | |
| ==================== | ||||
| SERVICE KIT | ||||
| KIT | 707-98-13220 | SERVICE KIT | 5001- |
