| Item | Part No. | Part Name | Qty | Serial No. |

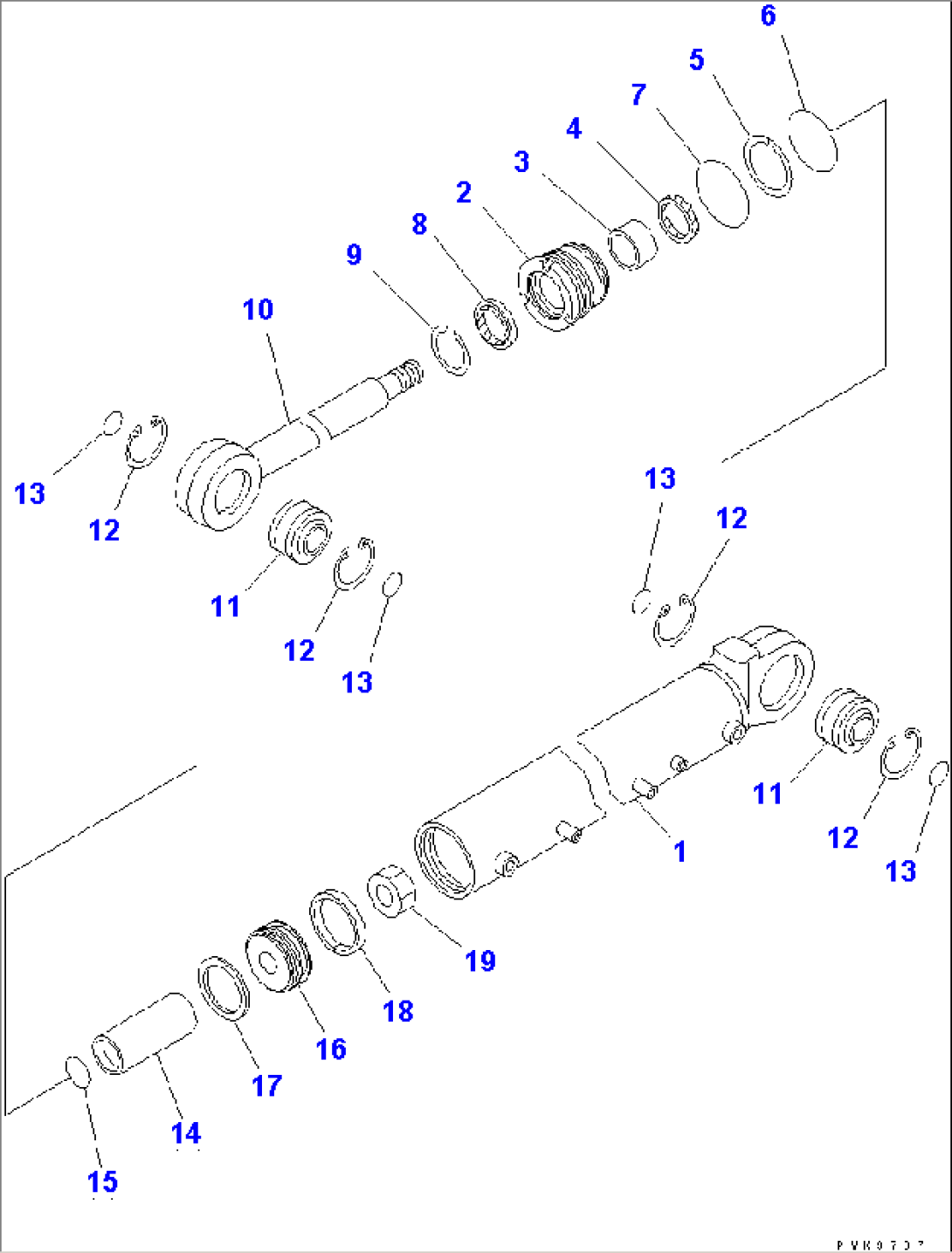

| 124-63-02230 | CYLINDER ASS'Y | 50001- | ||
| 1 | 124-63-65540 | CYLINDER | 50001- | |
| 2 | 707-29-13730 | HEAD,CYLINDER | 50001- | |
| 3 | 707-52-10660 | BUSHING | 50001- | |
| 4 | 707-51-65211 | PACKING,ROD (K6) | 50001- | |
| 5 | 07146-02126 | RING,BACK-UP (K6) | 50001- | |
| 6 | 07000-12125 | O-RING (K6) | 50001- | |
| 7 | 07000-02130 | O-RING (K6) | 50001- | |
| 8 | 144-63-92170 | SEAL,DUST (K6) | 50001- | |
| 9 | 07179-12079 | RING,SNAP | 50001- | |
| 10 | 124-63-65520 | ROD,PISTON | 50001- | |
| 11 | 07137-05008 | BUSHING | 50001- | |
| 11 | 07137-00060 | SEAL,DUST | 50001- | |
| 12 | 04065-01104 | RING,SNAP | 50001- | |
| 13 | 07000-03050 | O-RING (K6) | 50001- | |
| 14 | 707-81-65420 | COLLAR | 50001- | |
| 15 | 07000-02065 | O-RING | 50001- | |
| 16 | 707-36-13140 | PISTON | 50001- | |
| 17 | 707-44-13070 | RING,PISTON (K6) | 50001- | |
| 18 | 07156-01315 | RING,WEAR (K6) | 50001- | |
| 19 | 07165-13941 | NUT | 50001- | |
| 707-98-42420 | SERVICE KIT | 50001- |
