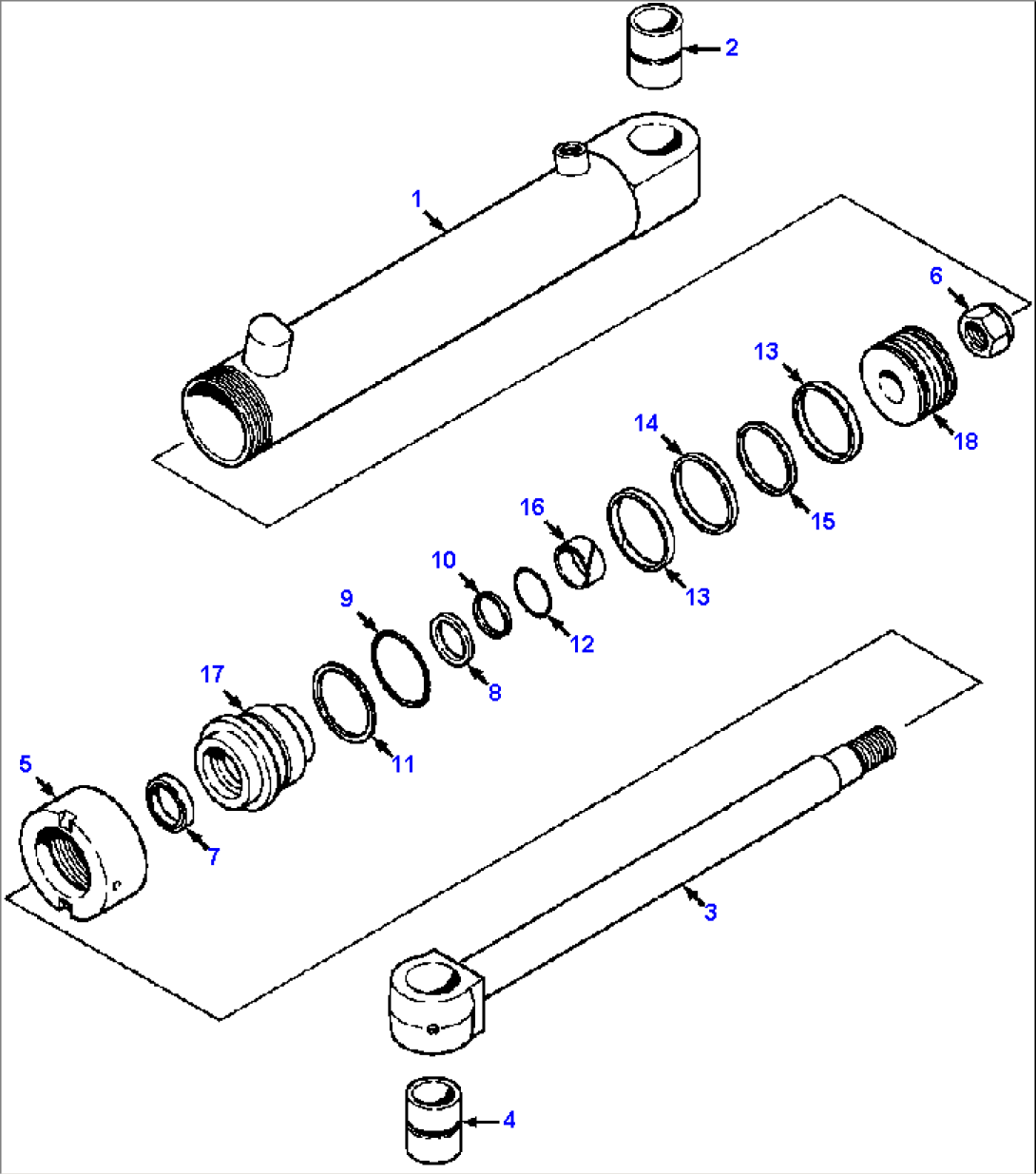

| Item | Part No. | Part Name | Qty | Serial No. |
| 1252 093 H92 | CYLINDER ASSY, ANGLE | |||
| 1252 085 H91 | HOUSING ASSY, CYLINDER | |||
| 1 | (NSS) | HEAD ASSY | ||
| 2 | 1252 078 H1 | BUSHING | ||
| 1252 082 H91 | ROD ASSY, CYLINDER | |||
| 3 | (NSS) | ROD, PISTON | ||
| 4 | 1252 078 H1 | BUSHING | ||
| 5 | 940 679 C1 | CAP, RETAINING | ||
| 6 | 20 513 R1 | NUT, LOCK - 1-1/2NF | ||
| 1253 442 H92 | KIT, CYLINDER SEAL | |||
| 7 | (NSS) | WIPER, ROD | ||
| 8 | (NSS) | SEAL, ROD | ||
| 9 | (NSS) | O-RING | ||
| 10 | (NSS) | RING, BUFFER | ||
| 11 | (NSS) | RING, BACKUP | ||
| 12 | (NSS) | O-RING | ||
| 13 | (NSS) | RING, WEAR | ||
| 14 | (NSS) | SEAL, PISTON | ||
| 15 | (NSS) | RING, SEAL | ||
| 16 | (NSS) | RING, WEAR, GLAND | ||
| 17 | 1253 441 H91 | GLAND, CYLINDER | ||
| 18 | 1108 334 C1 | PISTON, CYLINDER |
