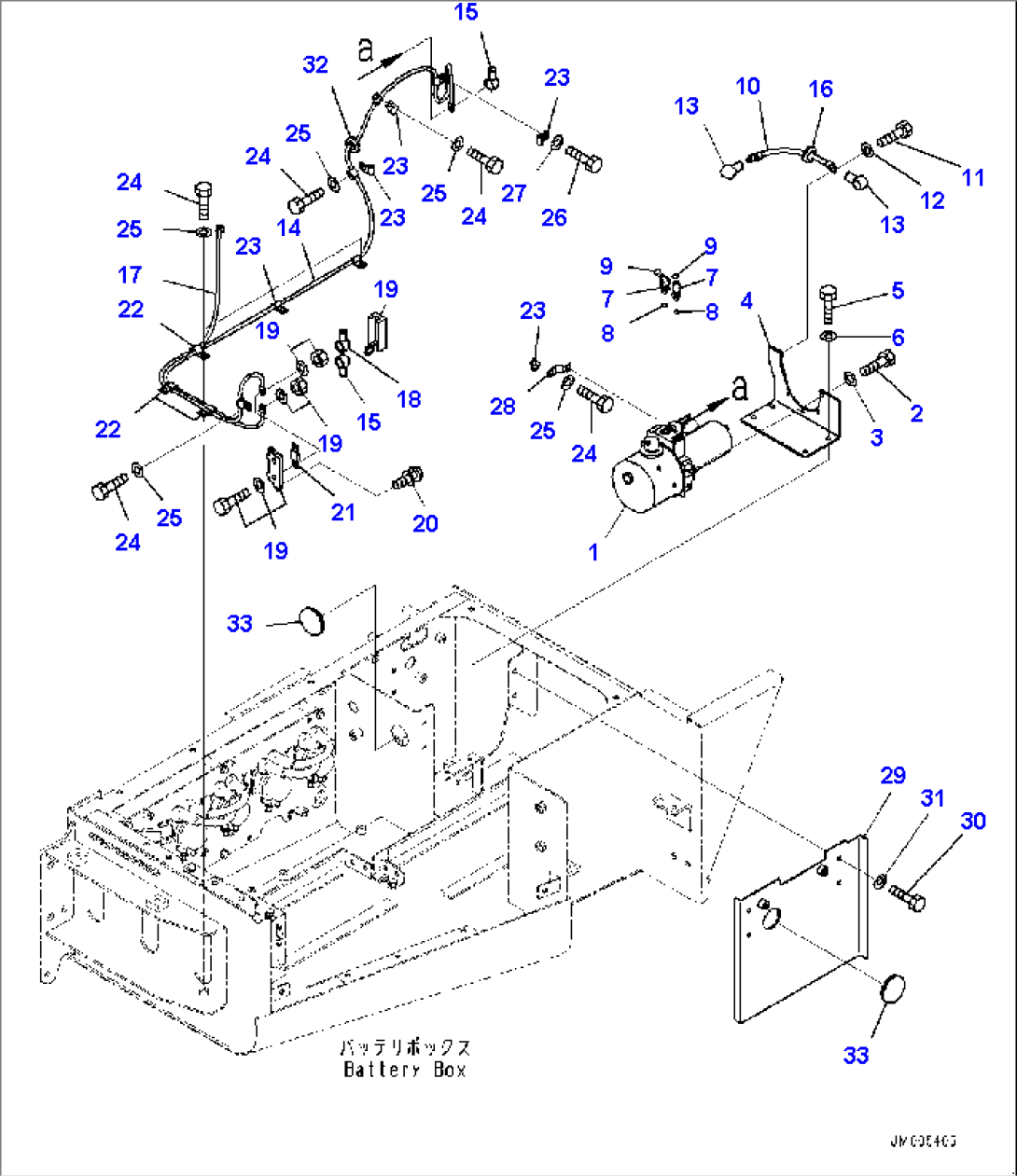

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-89-31100 | Pump Assembly | 5127- | |
| 2 | 01010-80820 | Bolt | 5127- | |
| 3 | 01643-30823 | Washer | 5127- | |
| 4 | 56B-89-32220 | Bracket | 5127- | |
| 5 | 01010-81025 | Bolt | 5127- | |
| 6 | 01643-31032 | Washer | 5127- | |
| 7 | 21W-62-43980 | Elbow | 5127- | |
| 8 | 07000-12011 | O-ring | 5127- | |
| 9 | 02896-11008 | O-ring | 5127- | |
| 10 | 08028-48025 | Cable, Ground | 5127- | |
| 11 | 01010-81016 | Bolt | 5127- | |
| 12 | 01643-31032 | Washer | 5127- | |
| 13 | 08038-04030 | Cap | 5127- | |
| 14 | 56B-89-32320 | Cable | 5127- | |
| 08030-01506 | Terminal | 5127- | ||
| 08030-01508 | Terminal | 5127- | ||
| 15 | 08038-02027 | Cap | 5127- | |
| 16 | 08037-02512 | Grommet | 5127- | |
| 17 | 56B-89-32331 | Cable | 5127- | |
| 08030-01508 | Terminal | 5127- | ||
| 18 | 08038-02027 | Cap | 5127- | |
| 19 | 561-06-81520 | Holder | 5127- | |
| 20 | 01023-70616 | Screw | 5127- | |
| 21 | 561-06-81610 | Fuse, 200Amp. | 5127- | |
| 22 | 04435-50810 | Clip | 5127- | |
| 23 | 04434-50810 | Clip | 5127- | |
| 24 | 01010-81016 | Bolt | 5127- | |
| 25 | 01643-31032 | Washer | 5127- | |
| 26 | 01010-81020 | Bolt | 5127- | |
| 27 | 01643-31032 | Washer | 5127- | |
| 28 | 08193-21012 | Clip | 5127- | |
| 29 | 56B-85-3A440 | Cover | 5127- | |
| 30 | 01010-81020 | Bolt | 5127- | |
| 31 | 01643-31032 | Washer | 5127- | |
| 32 | 08037-02512 | Grommet | 5127- | |
| 33 | 09415-05016 | Cap | 5127- |
