| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-85-3A320 | Bracket | 5001-5126 | |
| 2 | 08007-13549 | Cushion, Battery | 5001-5126 | |
| 3 | 56B-54-32290 | Bracket | 5001-5126 | |
| 4 | 01010-81025 | Bolt | 5001-5126 | |
| 5 | 01643-31032 | Washer | 5001-5126 | |
| 6 | 56B-54-37830 | Sheet | 5001-5126 |
- Главная
- Каталог запчастей
- Самосвалы
- Hm400 3m0 s/n 5001 up (for kal)
- Electrical system
- Battery box, box (#5001 5126)
Поиск по каталогу

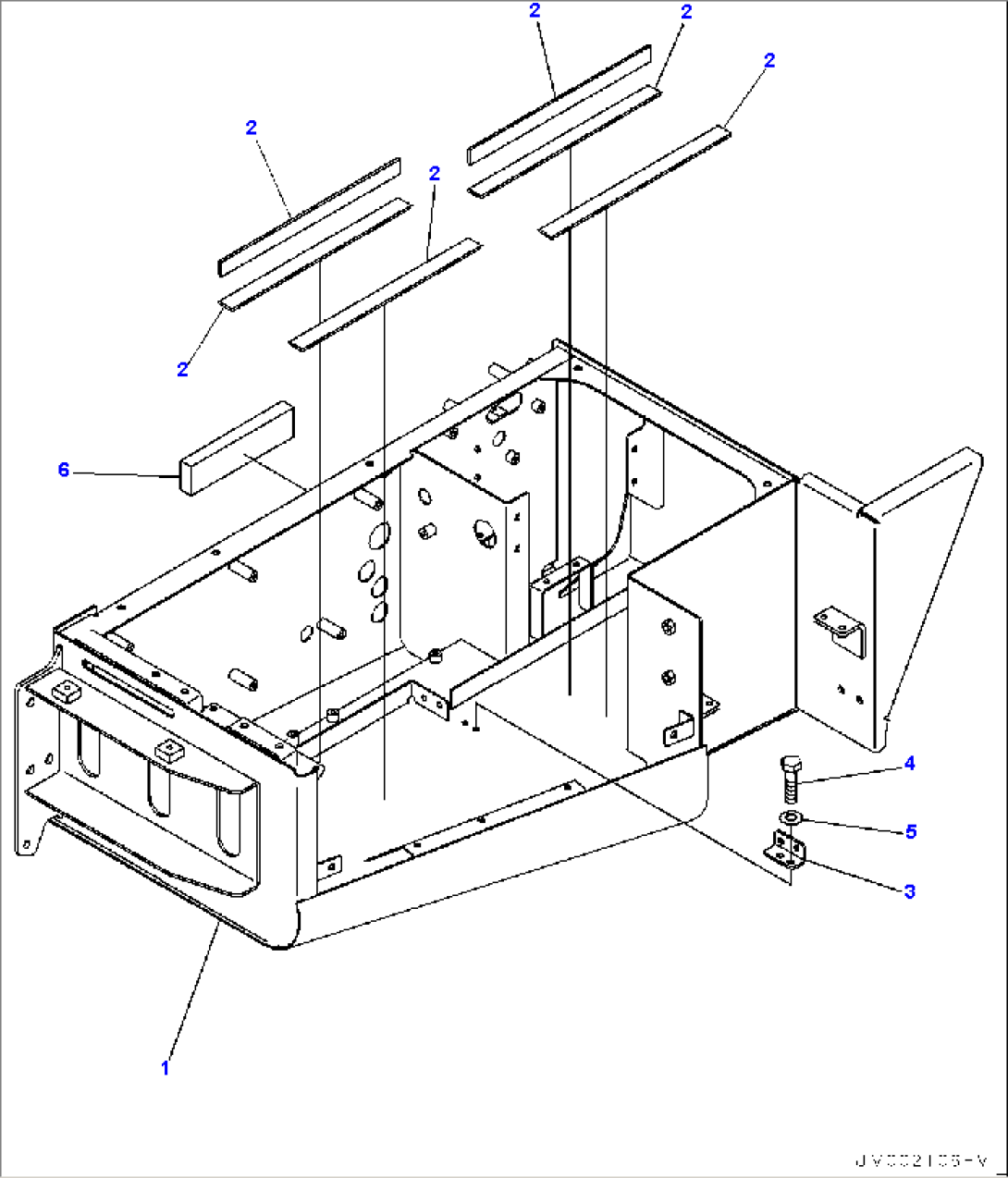

Battery Box, Box (#5001-5126)
