| Item | Part No. | Part Name | Qty | Serial No. |

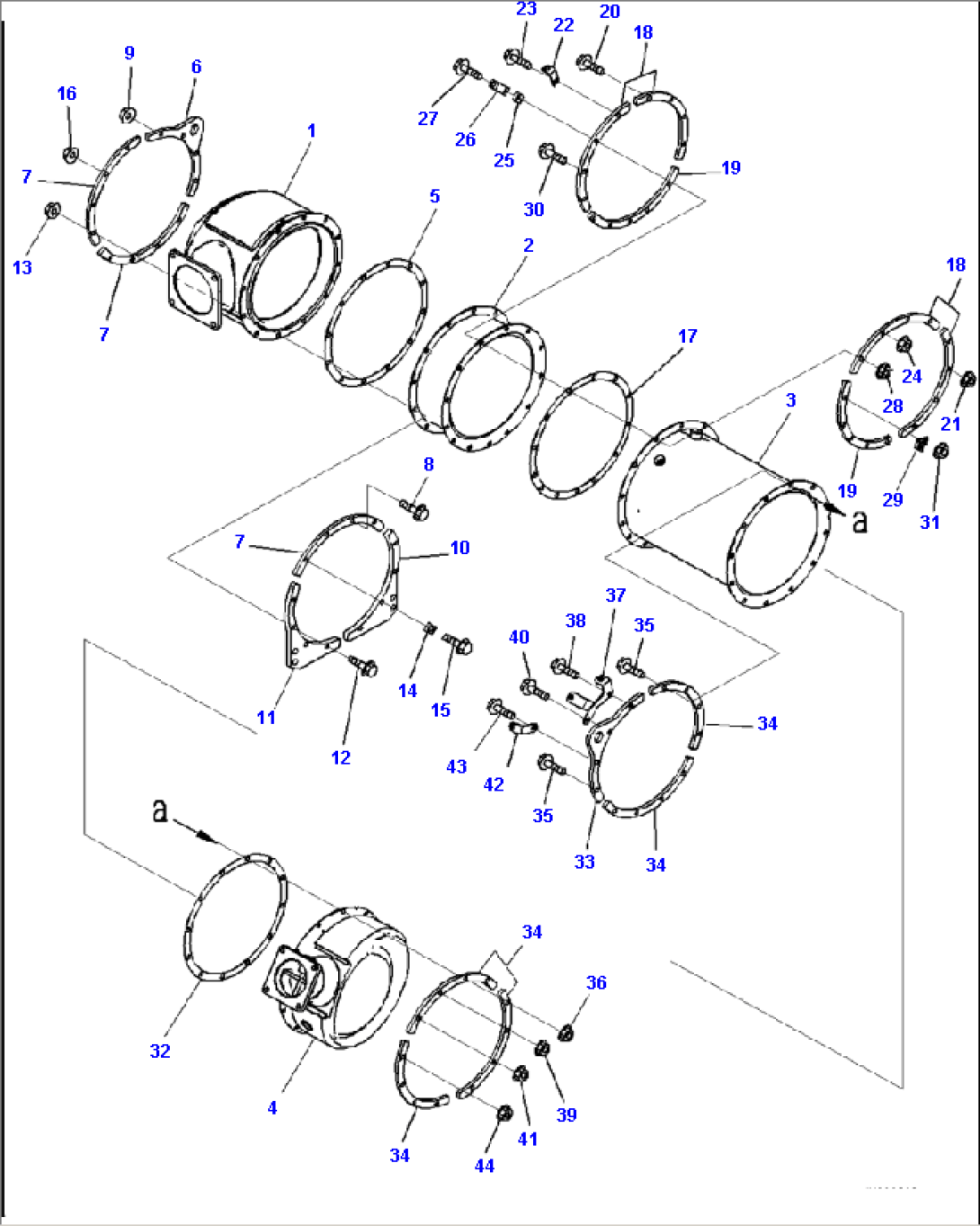

| 6546-01-0050 | SCR ASSEMBLY | |||
| 1 | 6546-11-1050 | BODY | ||
| 2 | 6546-21-1010 | BODY | ||
| 3 | 6546-31-1010 | BODY | ||
| 4 | 6546-41-1070 | BODY | ||
| 5 | 6526-91-1040 | GASKET | ||
| 6 | 6536-91-4030 | PLATE | ||
| 7 | 6536-91-1040 | PLATE | ||
| 8 | 01435-01040 | BOLT | ||
| 9 | 01584-01008 | NUT | ||
| 10 | 6536-91-4090 | PLATE | ||
| 11 | 6536-91-4080 | PLATE | ||
| 12 | 01435-01045 | BOLT | ||
| 13 | 01584-01008 | NUT | ||
| 14 | 6520-91-1010 | PLATE | ||
| 15 | 01435-01045 | BOLT | ||
| 16 | 01584-01008 | NUT | ||
| 17 | 6546-91-1030 | GASKET | ||
| 18 | 6536-91-1040 | PLATE | ||
| 19 | 6546-91-1040 | PLATE | ||
| 20 | 01435-01040 | BOLT | ||
| 21 | 01584-01008 | NUT | ||
| 22 | 6520-91-1010 | PLATE | ||
| 23 | 01435-01045 | BOLT | ||
| 24 | 01584-01008 | NUT | ||
| 25 | 6520-91-1010 | PLATE | ||
| 26 | 6520-91-1010 | PLATE | ||
| 27 | 01435-01045 | BOLT | ||
| 28 | 01584-01008 | NUT | ||
| 29 | 6520-91-1010 | PLATE | ||
| 30 | 01435-01045 | BOLT | ||
| 31 | 01584-01008 | NUT | ||
| 32 | 6526-91-1040 | GASKET | ||
| 33 | 6536-91-4030 | PLATE | ||
| 34 | 6536-91-1040 | PLATE | ||
| 35 | 01435-01040 | BOLT | ||
| 36 | 01584-01008 | NUT | ||
| 37 | 421-06-62321 | BRACKET | ||
| 38 | 01435-01045 | BOLT | ||
| 39 | 01584-01008 | NUT | ||
| 40 | 01435-01045 | BOLT | ||
| 41 | 01584-01008 | NUT | ||
| 42 | 6536-91-1090 | PLATE | ||
| 43 | 01435-01045 | BOLT | ||
| 44 | 01584-01008 | NUT |
