| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-70-61860 | PIN | K50001- | |
| 2 | 208-70-31242 | PLATE | K50001- | |
| 3 | 207-70-13340 | BOLT | K50001- | |
| 4 | 01580-12419 | NUT | K50001- | |
| 5 | 208-70-71561 | SPACER 1.0MM | K50001- | |
| 6 | 208-70-71571 | SPACER 2.0MM | K50001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc450 8 s/n k50001 up
- T0 work equipment
- B00m cylinder top pin
Поиск по каталогу

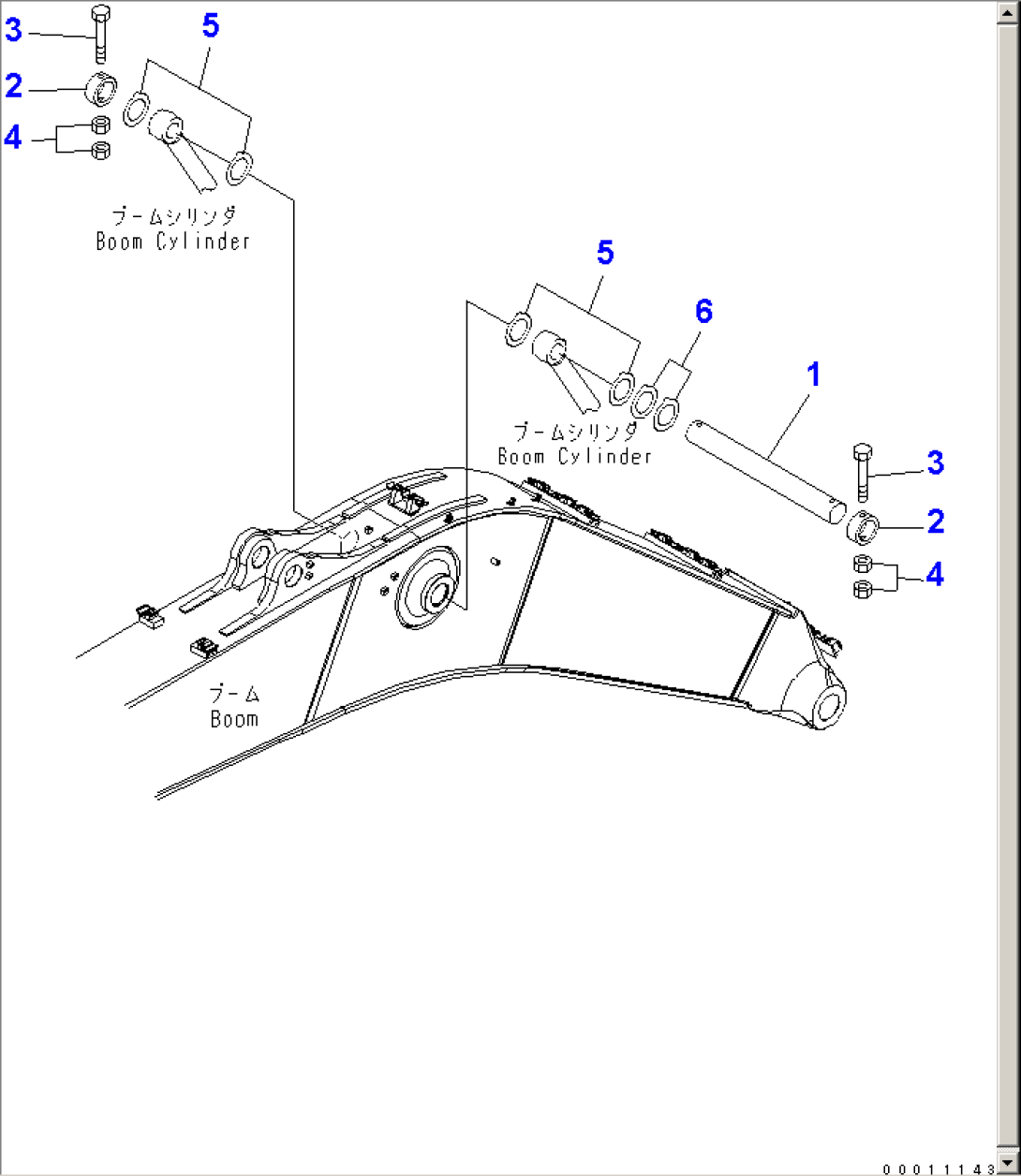

B00M CYLINDER TOP PIN
