| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-70-61860 | PIN | 50001- | |
| 2 | 208-70-31242 | PLATE | 50001- | |
| 3 | 207-70-13340 | BOLT | 50001- | |
| 4 | 01580-12419 | NUT | 50001- | |
| 5 | 208-70-31340 | SPACER¤ 0.8MM | 50001- | |
| 6 | 208-70-51320 | SPACER¤ 1.5MM | 50001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc400 7 m1 s/n 50001 up
- Work equipment
- B00m cylinder top pin (100 hours lubricating)
Поиск по каталогу

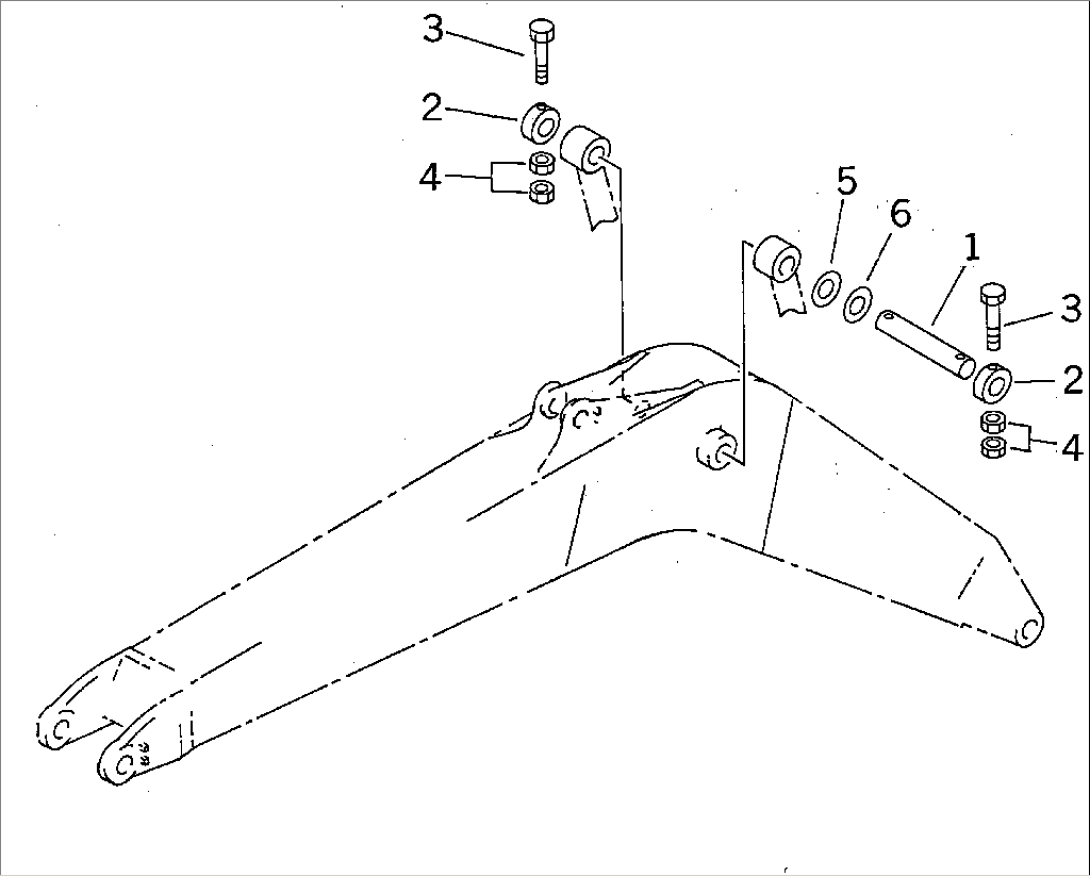

B00M CYLINDER TOP PIN (100 HOURS LUBRICATING)
