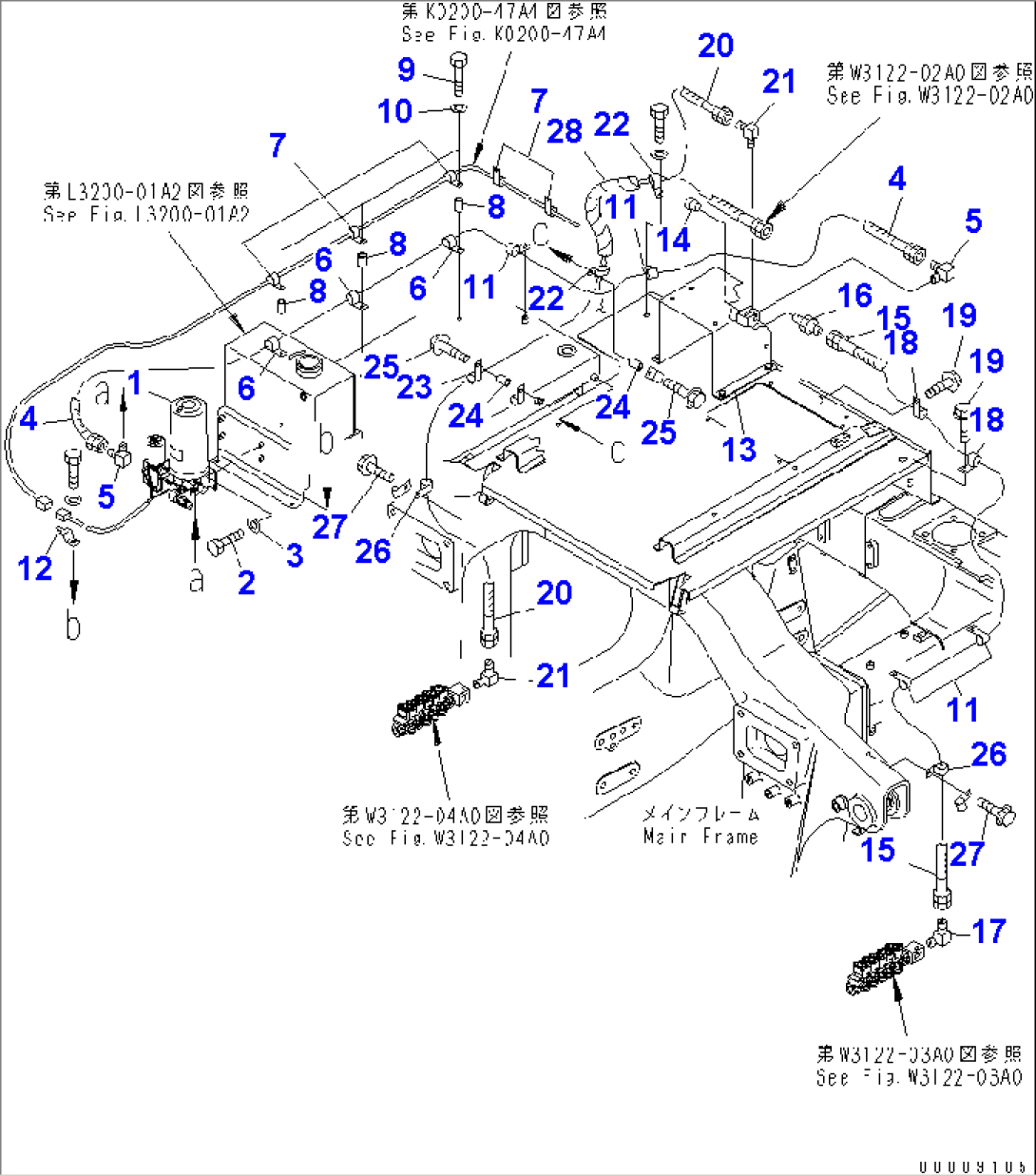

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-95-84511 | PUMP ASS'Y | 7001- | |
| 2 | 01010-80816 | BOLT | 7001- | |
| 3 | 01643-30823 | WASHER | 7001- | |
| 4 | 07121-00326 | HOSE | 7001- | |
| 5 | 566-35-14380 | ELBOW | 7001- | |
| 6 | 04434-52212 | CLIP | 7001- | |
| 7 | 04434-51412 | CLIP | 7001- | |
| 8 | 417-54-13470 | SPACER | 7001- | |
| 9 | 01010-81250 | BOLT | 7001- | |
| 10 | 01643-31232 | WASHER | 7001- | |
| 11 | 04434-52212 | CLIP | 7001- | |
| 12 | 08193-21012 | CLIP | 7001- | |
| 13 | 569-95-84820 | COVER | 7001- | |
| 14 | 07043-70312 | PLUG | 7001- | |
| 15 | 07121-00334 | HOSE | 7001- | |
| 16 | 07238-10315 | CONNECTOR | 7001- | |
| 17 | 566-35-14380 | ELBOW | 7001- | |
| 18 | 04434-52212 | CLIP | 7001- | |
| 19 | 01435-01016 | BOLT | 7001- | |
| 20 | 07121-00324 | HOSE | 7001- | |
| 21 | 566-35-14380 | ELBOW | 7001- | |
| 22 | 04435-52212 | CLIP | 7001- | |
| 23 | 04434-52212 | CLIP | 7001- | |
| 24 | 417-54-13470 | SPACER | 7001- | |
| 25 | 01435-01040 | BOLT | 7001- | |
| 26 | 04434-52212 | CLIP | 7001- | |
| 27 | 01435-01016 | BOLT | 7001- | |
| 28 | 08210-02904 | SPIRAL TUBE | 7001- |
