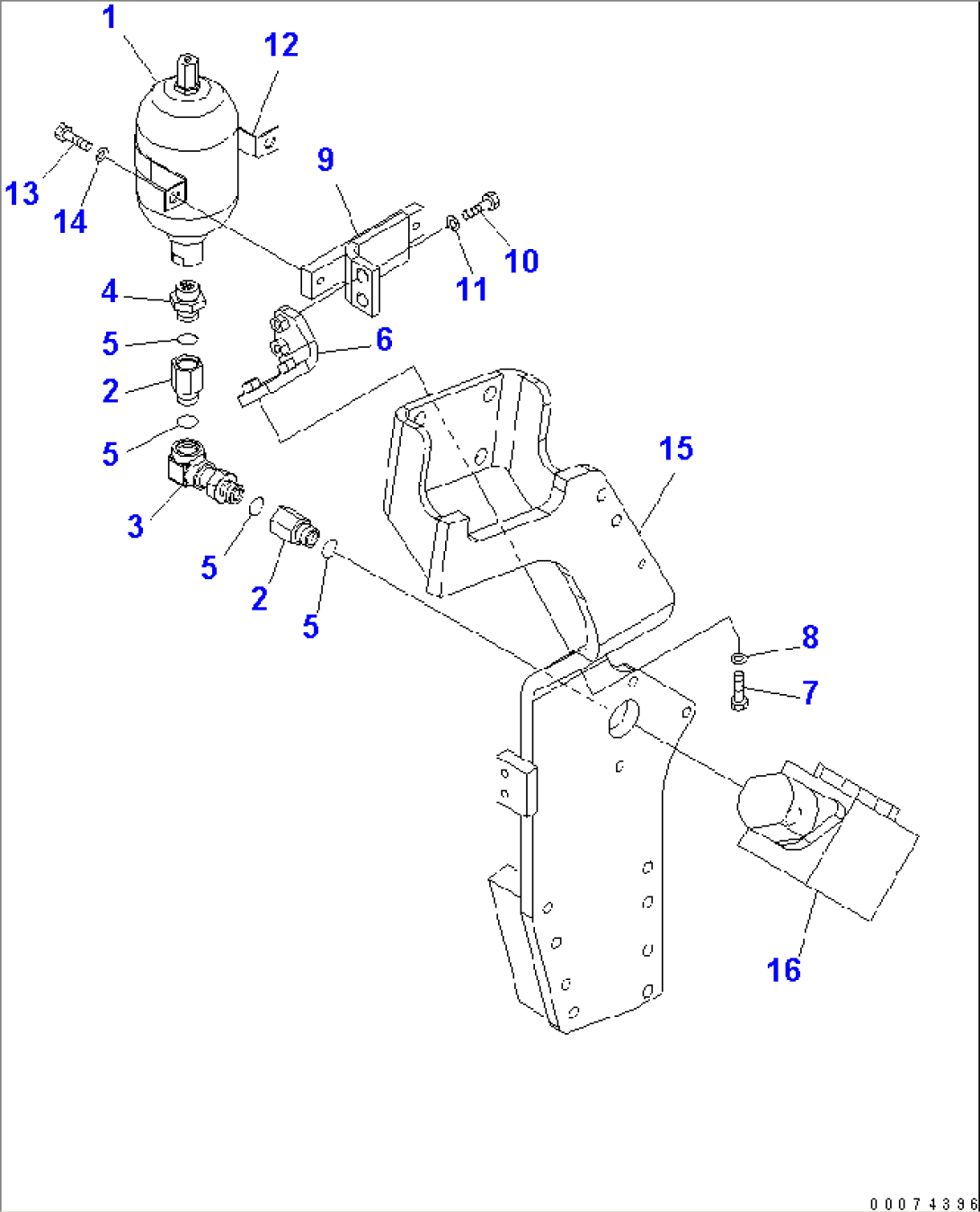

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-970-6450 | ACCUMULATOR | A88001- | |
| 2 | 201-62-71810 | JOINT | A88001- | |
| 3 | 207-62-73350 | ELBOW | A88001- | |
| 4 | 205-970-5550 | NIPPLE | A88001- | |
| 5 | 07002-12434 | O-RING | A88001- | |
| 6 | 207-62-73251 | BRACKET | A88001- | |
| 7 | 01010-81250 | BOLT | A88001- | |
| 8 | 01643-31232 | WASHER | A88001- | |
| 9 | 207-62-73240 | BRACKET | A88001- | |
| 10 | 01010-81240 | BOLT | A88001- | |
| 11 | 01643-31232 | WASHER | A88001- | |
| 12 | 175-61-51750 | PLATE | A88001- | |
| 13 | 01010-81225 | BOLT | A88001- | |
| 14 | 01643-31232 | WASHER | A88001- | |
| 15 | (207-62-73141) | BRACKET,(SEE FIG. H1270-02H0) | A88001- | |
| 16 | (702-21-01920) | VALVE ASS'Y,(SEE FIG. H1270-02H0) | A88001- |
