| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-54-25840 | COVER | 10117- | |
| 2 | 124-54-68410 | ARM REST ASS'Y | 10117- | |
| 3 | 124-54-68420 | REST | 10117- | |
| 4 | 124-54-68430 | PLATE | 10117- | |
| 5 | 134-54-66240 | SHEET (BONDED) | 10117- | |
| 6 | 01010-80820 | BOLT | 10117- | |
| 7 | 01643-30823 | WASHER | 10117- | |
| 8 | 134-54-66190 | PLATE | 10117- | |
| 9 | 134-54-66290 | PLATE | 10117- | |
| 10 | 01245-00825 | SCREW | 10117- | |
| 11 | 01643-70823 | WASHER | 10117- | |
| 12 | 14X-54-16452 | COVER | 10117- | |
| 13 | 01245-00816 | SCREW | 10117- | |
| 14 | 01643-70823 | WASHER | 10117- | |
| 15 | 195-54-68760 | KNOB | 10117- | |
| 16 | 01643-31032 | WASHER | 10117- | |
| 17 | 17A-54-25610 | SPACER | 10117- | |
| 18 | 09304-10835 | KNOB | 10117- | |
| 19 | 14X-916-1220 | PLATEä OPERATING | 10117- |
- Главная
- Каталог запчастей
- Бульдозеры
- D85ex 15 s/n 10001 up
- Operator's compartment and control system

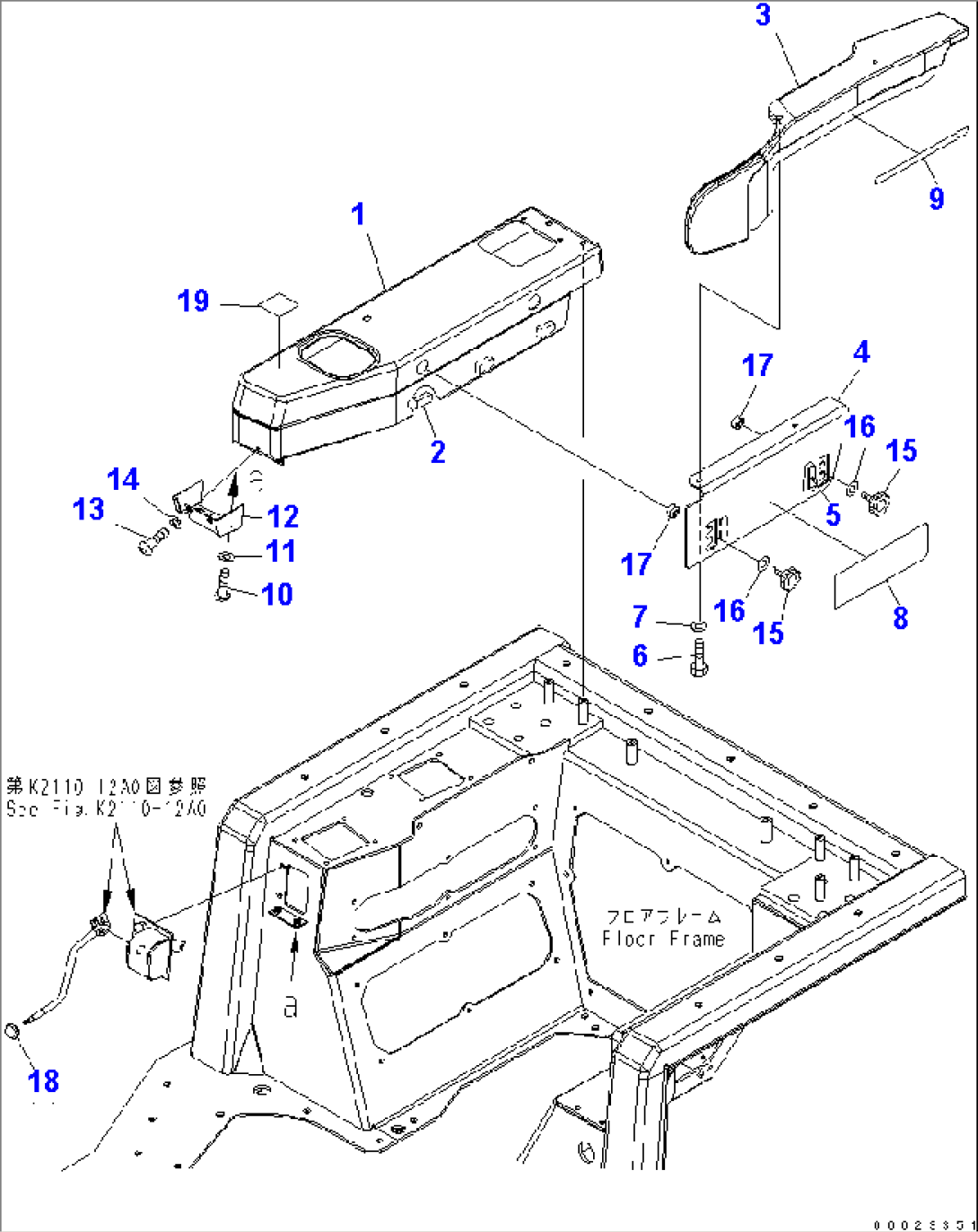

- Arm rest (without ripper) (for mitsukojima)(#10117 )
