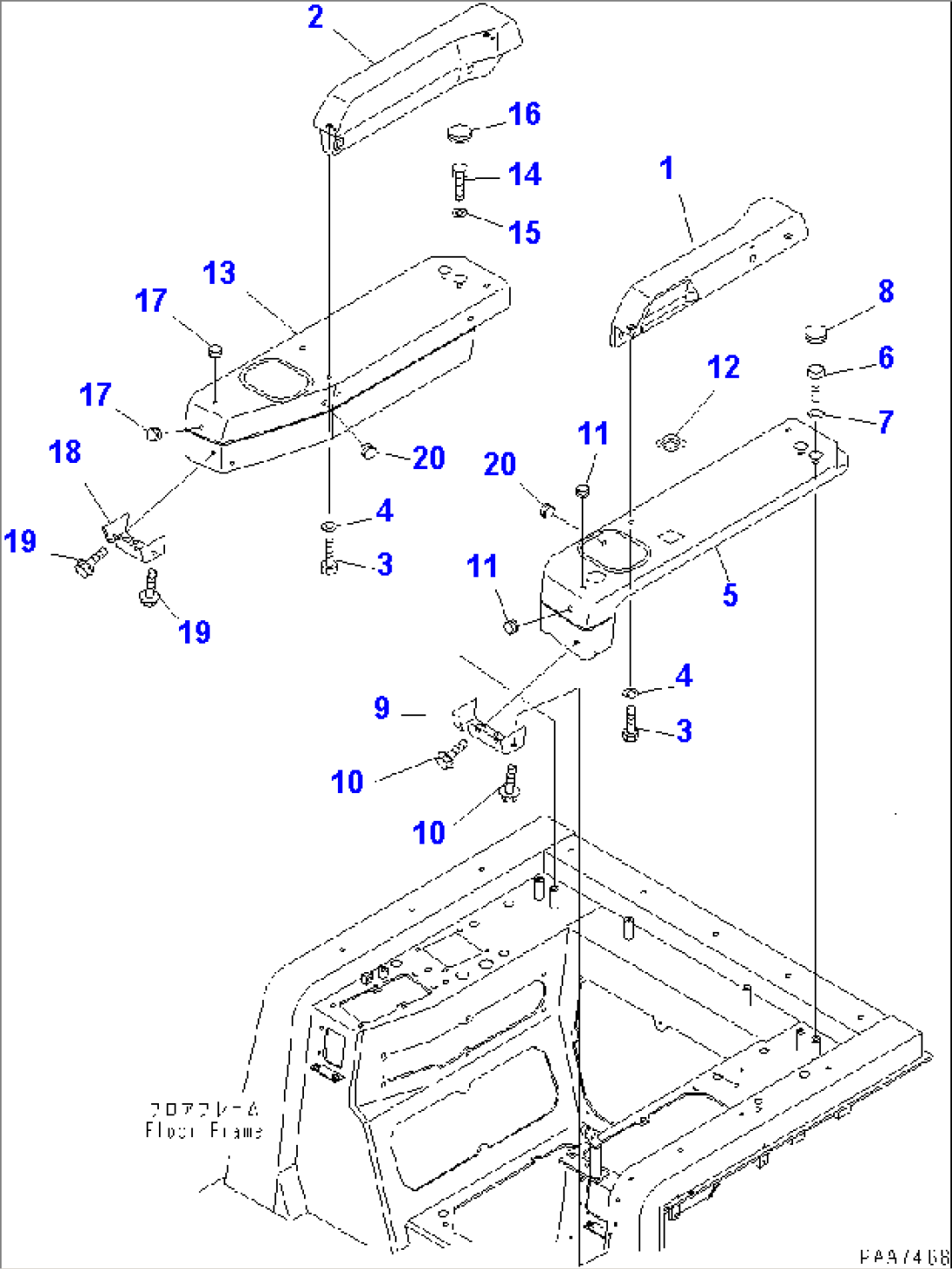

Item | Part No. | Part Name | Qty | Serial No. |
1 | 14X-54-16532 | ARM REST,L.H. | 50001-50200 | |
2 | 14X-54-16542 | ARM REST,R.H. | 50001-50200 | |
3 | 01010-80812 | BOLT | 50001-50200 | |
4 | 01643-30823 | WASHER | 50001-50200 | |
5 | 124-54-58150 | COVER,L.H. | 50001-50200 | |
6 | 01010-81020 | BOLT | 50001-@ | |
7 | 01643-31032 | WASHER | 50001-@ | |
8 | 09415-02512 | CAP | 50001-@ | |
9 | 14X-54-16442 | COVER,L.H. | 50001-@ | |
10 | 01439-00814 | BOLT | 50001-@ | |
11 | 09415-00706 | CAP | 50001-50200 | |
12 | 17A-43-25380 | COVER | 50001-50200 | |
13 | 17A-54-16870 | COVER,R.H. | 50001-50200 | |
14 | 01010-81020 | BOLT | 50001-@ | |
15 | 01643-31032 | WASHER | 50001-@ | |
16 | 09415-02512 | CAP | 50001-@ | |
17 | 09415-00706 | CAP | 50001-50200 | |
18 | 14X-54-16452 | COVER,L.H. | 50001-@ | |
19 | 01439-00814 | BOLT | 50001-@ | |
20 | 09415-00706 | CAP | 50001-50200 |
