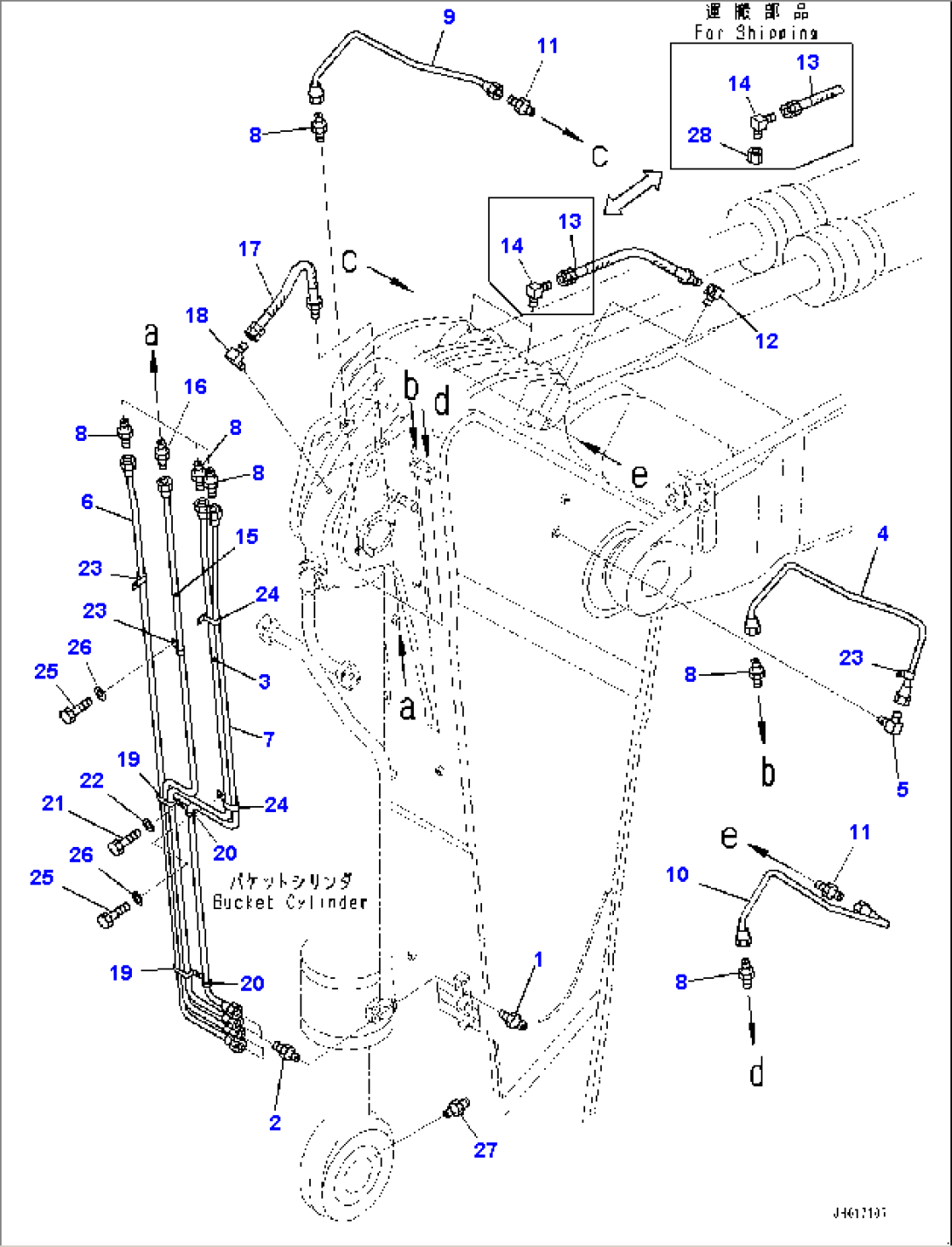

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07020-00000 | Fitting, Grease | 65242- | |
| 2 | 07214-51013 | Connector | 65242- | |
| 3 | 209-70-75761 | Tube | 65242- | |
| 4 | 209-70-75771 | Tube | 65242- | |
| 5 | 07217-51013 | Elbow | 65242- | |
| 6 | 209-70-75721 | Tube | 65242- | |
| 7 | 209-70-75950 | Tube | 65242- | |
| 8 | 07214-51013 | Connector | 65242- | |
| 9 | 209-70-75651 | Tube | 65242- | |
| 10 | 209-70-75960 | Tube | 65242- | |
| 11 | 07214-51013 | Connector | 65242- | |
| 12 | 20G-68-12930 | Elbow | 65242- | |
| 13 | 421-70-13132 | Hose | 65242- | |
| 14 | 205-70-51380 | Elbow | 65242- | |
| 15 | 209-70-75621 | Tube | 65242- | |
| 16 | 07214-51013 | Connector | 65242- | |
| 17 | 205-70-51370 | Hose | 65242- | |
| 18 | 205-70-51380 | Elbow | 65242- | |
| 19 | 203-06-53730 | Clip | 65242- | |
| 20 | 04434-51010 | Clip | 65242- | |
| 21 | 01010-81020 | Bolt | 65242- | |
| 22 | 01643-31032 | Washer | 65242- | |
| 23 | 04434-51010 | Clip | 65242- | |
| 24 | 04435-51010 | Clip | 65242- | |
| 25 | 01010-81020 | Bolt | 65242- | |
| 26 | 01643-31032 | Washer | 65242- | |
| 27 | 07020-00000 | Fitting, Grease | 65242- | |
| 28 | 209-98-51110 | Plug | 65242- |
