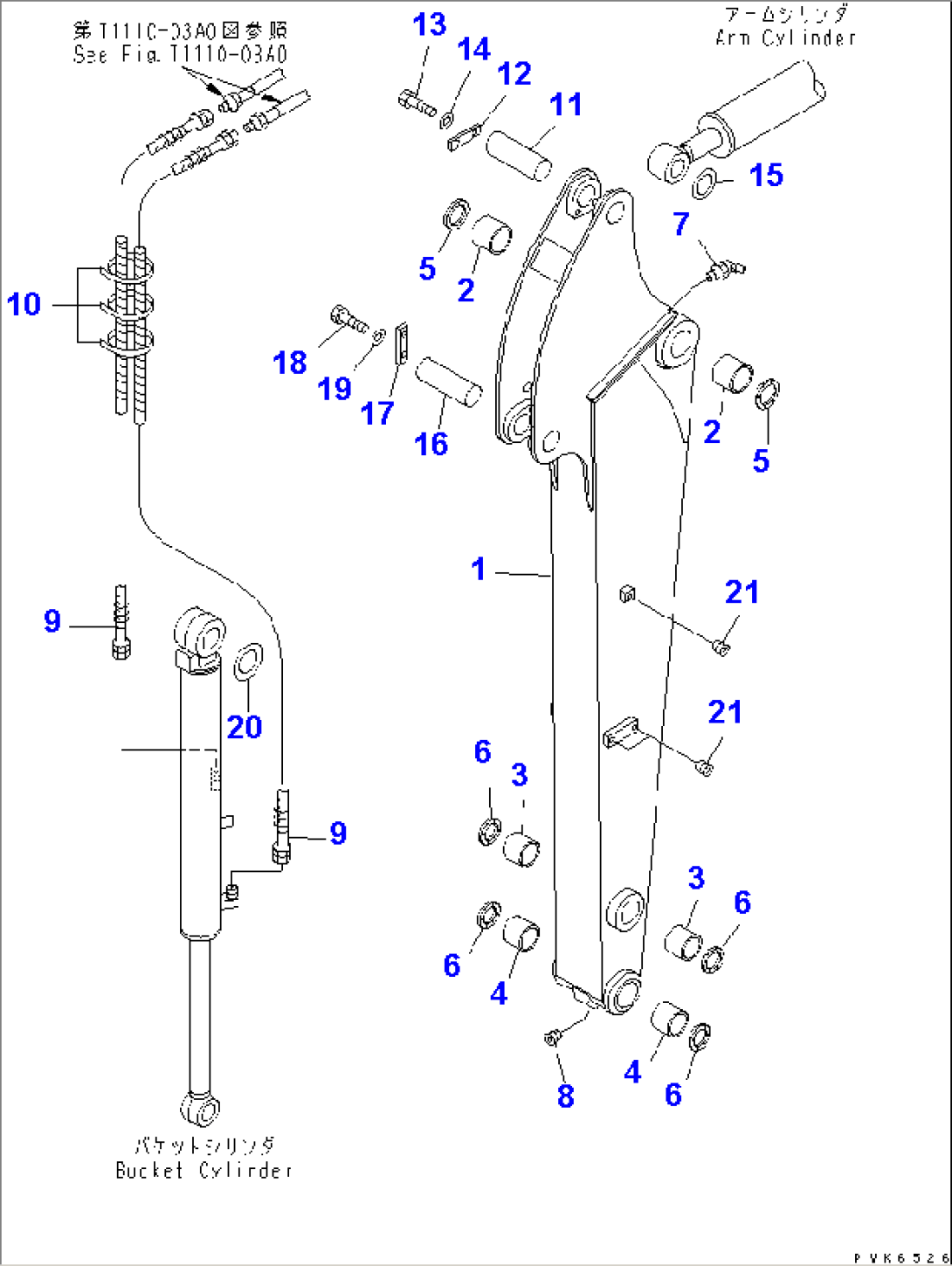

| Item | Part No. | Part Name | Qty | Serial No. |
| 22N-70-00030 | ARM ASS'Y | 1001- | ||
| 1 | \6\ | ARM | 1891- | |
| \6\ | ARM | 1001-1890 | ||
| 2 | 20T-70-81250 | BUSHING | 1001- | |
| 3 | 20T-70-25740 | BUSHING | 1001- | |
| 4 | 20T-70-71880 | BUSHING | 1001- | |
| 5 | 07145-00050 | SEAL,DUST | 1001- | |
| 6 | 07145-00045 | SEAL,DUST | 1001- | |
| 7 | 07020-00675 | FITTING,GREASE | 1001- | |
| 8 | 07043-70108 | PLUG | 1001- | |
| 9 | 22N-62-16910 | HOSE ASS'Y | 3001- | |
| 22N-62-12231 | HOSE ASS'Y | 2240-3000 | ||
| 22N-62-12490 | HOSE ASS'Y | 1001-2239 | ||
| 10 | 08034-00519 | BAND | 1001- | |
| 11 | 20S-70-71571 | PIN | 1001- | |
| 12 | 04082-00212 | LOCK | 1001- | |
| 13 | 01010-81230 | BOLT | 1001- | |
| 14 | 01643-31232 | WASHER | 1001- | |
| 15 | 20T-70-81780 | SPACER¤ 1.0MM | 1001- | |
| 16 | 20S-70-71571 | PIN | 1001- | |
| 17 | 04082-00212 | LOCK | 1001- | |
| 18 | 01010-81230 | BOLT | 1001- | |
| 19 | 01643-31232 | WASHER | 1001- | |
| 20 | 20T-70-81710 | SPACER¤ 1.0MM | 1001- | |
| 21 | 20T-54-74510 | CAP,(FOR ATTACHMENT LESS) | 1001- |
