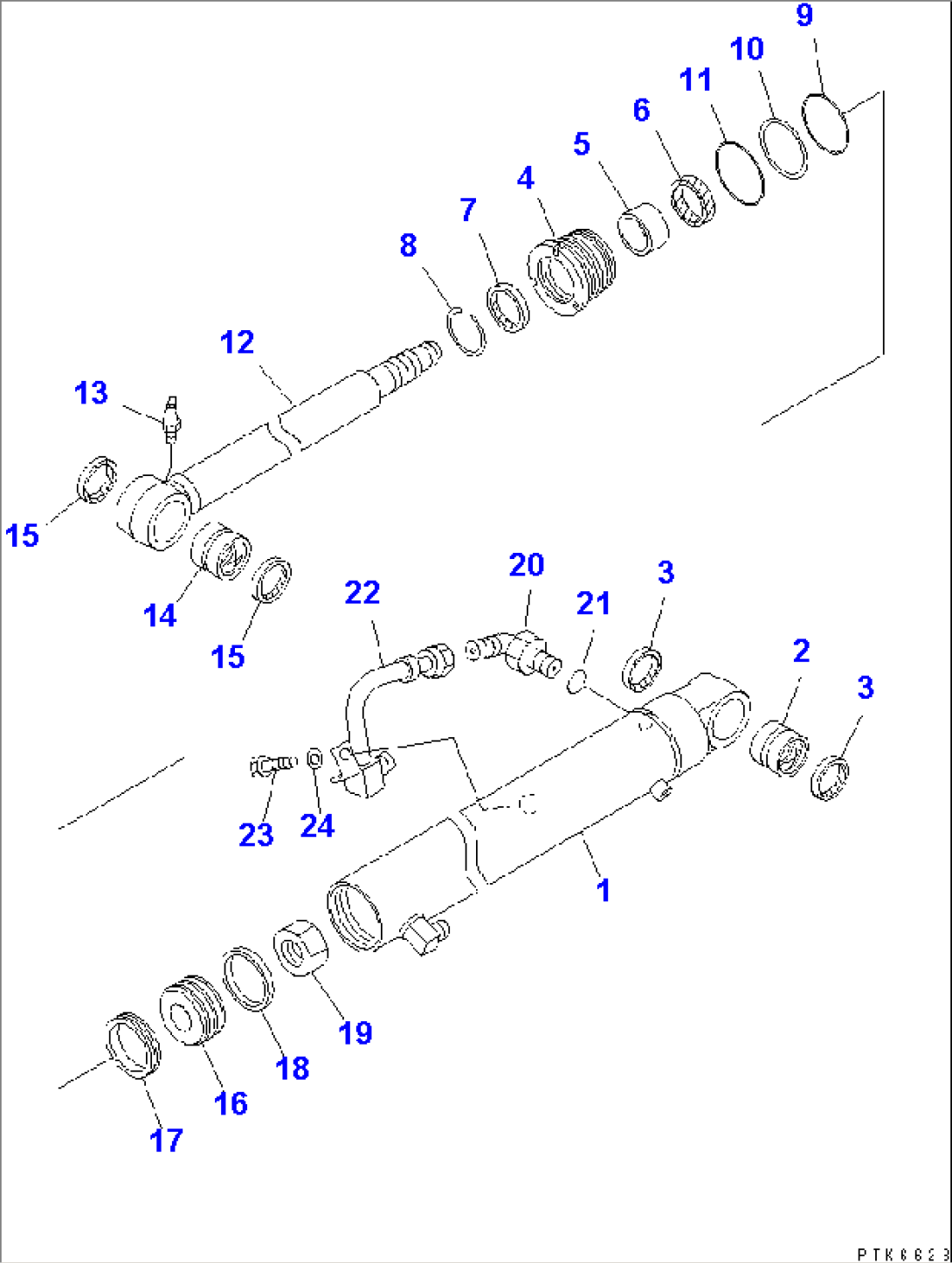

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\22M-63-X2122) | ARM CYLINDER ASS'Y,(SUMMER GREEN) | 1001-5500 | |
| G1 | (\8\707-00-80A20) | ARM CYLINDER ASS'Y,(NATURAL YELLOW) | 1001-5500 | |
| ==================== | ||||
| 22M-63-02122 | CYLINDER ASS'Y,ARM | 1001-5500 | ||
| 1 | 22M-63-66142 | CYLINDER | 1001-5500 | |
| 2 | 707-76-45470 | BUSHING | 1001-@ | |
| 3 | 07145-00045 | SEAL,DUST (KIT) | 1001-@ | |
| 4 | 707-29-80740 | HEAD,CYLINDER | 1001-@ | |
| 5 | 07177-05030 | BUSHING | 1001-@ | |
| 6 | 707-51-50211 | PACKING,ROD (KIT) | 1001-@ | |
| 7 | 176-63-92240 | SEAL,DUST (KIT) | 1001-@ | |
| 8 | 07179-12062 | RING,SNAP | 1001-@ | |
| 9 | 07000-12075 | O-RING (KIT) | 1001-@ | |
| 10 | 07146-02076 | RING,BACK-UP (KIT) | 1001-@ | |
| 11 | 07000-12080 | O-RING (KIT) | 1001-@ | |
| 12 | 22M-63-66120 | ROD,PISTON | 1001-@ | |
| 13 | 07020-00675 | FITTING,GREASE | 1001-@ | |
| 14 | 707-76-45520 | BUSHING | 1001-@ | |
| 15 | 07145-00045 | SEAL,DUST (KIT) | 1001-@ | |
| 16 | 707-36-80370 | PISTON | 1001-@ | |
| 17 | 707-44-80180 | RING,PISTON (KIT) | 1001-@ | |
| 18 | 07156-00810 | RING,WEAR (KIT) | 1001-@ | |
| 19 | 707-67-36010 | NUT | 1001-@ | |
| 20 | 07235-10522 | ELBOW | 1001-5500 | |
| 21 | 07002-12434 | O-RING (KIT) | 1001-@ | |
| 22 | 22M-63-66181 | TUBE | 1001-5500 | |
| 23 | 01010-81020 | BOLT | 1001-@ | |
| 24 | 01643-31032 | WASHER | 1001-@ | |
| ==================== | ||||
| SERVICE KIT | ||||
| K | 707-98-25250 | SERVICE KIT,ARM CYLINDER | 1001-5500 |
