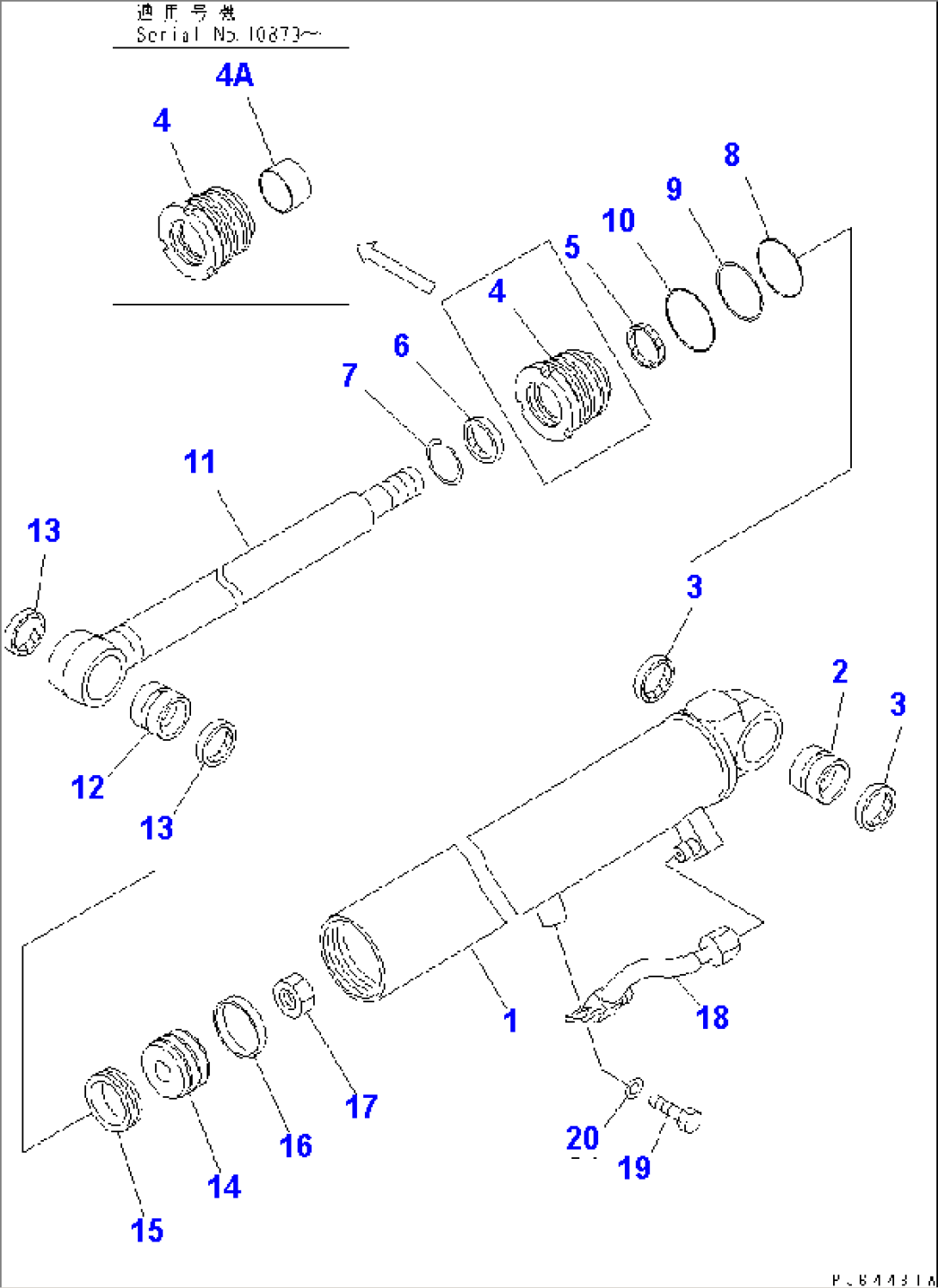

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-00-XC940) | CYLINDER GROUP,(NATURAL YELLOW) | | 10001- |
| | ==================== | | |
| 22L-63-02231 | CYLINDER ASS'Y,(SUMMER GREEN) | | 10879- |
| \0\22L-63-02230 | CYLINDER ASS'Y,(SUMMER GREEN) | | 10001-10878 |
| 1 | 22L-63-66241 | CYLINDER | | 10001- |
| 2 | 20P-71-81130 | BUSHING | | 10001- |
| 3 | 07145-00035 | SEAL,DUST (KIT) | | 10001- |
| 4 | 707-29-70830 | HEAD,CYLINDER | | 10879- |
| 4 | 707-29-70260 | HEAD,CYLINDER | | 10001-10878 |
| 4A | 07177-04025 | BUSHING | | 10879- |
| 5 | 707-51-40210 | PACKING,ROD (KIT) | | 10001- |
| 6 | 198-63-75190 | SEAL,DUST (KIT) | | 10001- |
| 7 | 07179-12052 | RING,SNAP | | 10001- |
| 8 | 07000-12065 | O-RING (KIT) | | 10001- |
| 9 | 07146-02066 | RING,BACK-UP (KIT) | | 10001- |
| 10 | 07000-12070 | O-RING (KIT) | | 10001- |
| 11 | 20P-63-62320 | ROD,PISTON | | 10001- |
| 12 | 20P-71-81130 | BUSHING | | 10001- |
| 13 | 07145-00035 | SEAL,DUST (KIT) | | 10001- |
| 14 | 707-36-70270 | PISTON | | 10001- |
| 15 | 707-44-70180 | RING,PISTON (KIT) | | 10001- |
| 16 | 07156-00710 | RING,WEAR (KIT) | | 10001- |
| 17 | 01580-03024 | NUT | | 10001- |
| 18 | 22L-63-66280 | TUBE | | 10001- |
| 19 | 01010-81020 | BOLT | | 10001- |
| 20 | 01643-31032 | WASHER | | 10001- |
| | ==================== | | |
| | SERVICE KIT | | |
| KIT | 707-98-14610 | SERVICE KIT,ARM CYLINDER | | 10001- |
