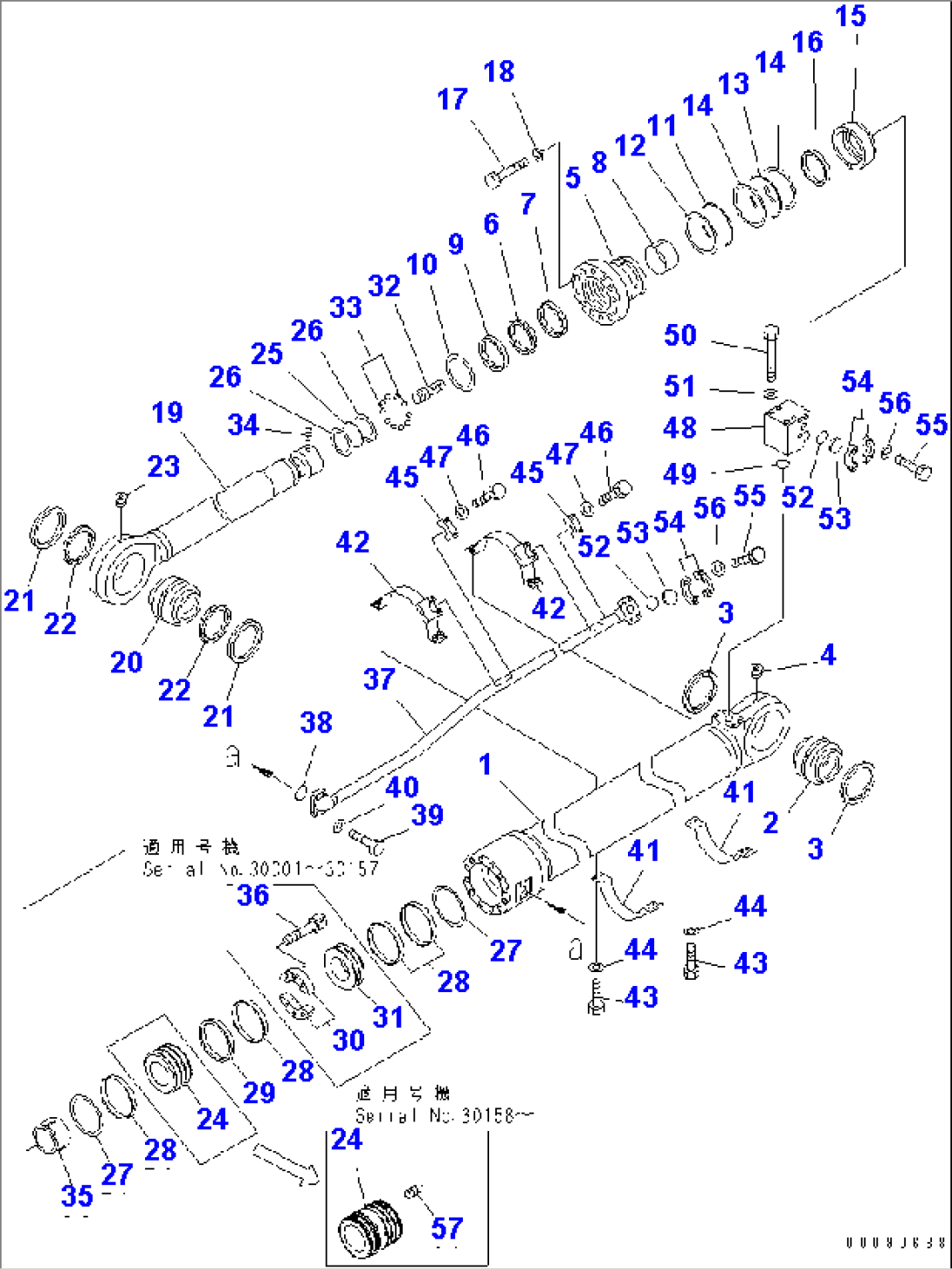

| Item | Part No. | Part Name | Qty | Serial No. |
| G | (\8\707-01-XMC00) | CYLINDER GROUP,(FINAL COATING) | 30158- | |
| G | (\8\707-01-XZ522) | CYLINDER GROUP,(FINAL COATING) | 30001-30157 | |
| ==================== | ||||
| 707-01-0CA40 | CYLINDER ASS'Y | 30158- | ||
| 21N-63-02324 | CYLINDER ASS'Y | 30001-30157 | ||
| 1 | 707-13-25210 | CYLINDER | 30158- | |
| 1 | 21N-63-62341 | CYLINDER | 30001-30157 | |
| 2 | 707-76-16030 | BUSHING | 30001- | |
| 3 | 707-77-16020 | SEAL,DUST (KIT) | 30001- | |
| 4 | 07043-00108 | PLUG | 30001- | |
| 5 | 707-28-25840 | HEAD,CYLINDER | 30158- | |
| 5 | 707-28-25710 | HEAD | 30001-30157 | |
| 6 | 707-51-17030 | PACKING,ROD (KIT) | 30001- | |
| 7 | 707-51-17640 | RING,BUFFER (KIT) | 30001- | |
| 8 | 707-52-91451 | BUSHING | 30001- | |
| 9 | 707-56-17510 | SEAL,DUST (KIT) | 30001- | |
| 10 | 07179-15190 | RING,SNAP | 30001- | |
| 11 | 07000-15250 | O-RING (KIT) | 30001- | |
| 12 | 707-35-92600 | RING,BACK-UP (KIT) | 30001- | |
| 13 | 07000-15250 | O-RING (KIT) | 30001- | |
| 14 | 07001-05250 | RING,BACK-UP (KIT) | 30001- | |
| 15 | 707-71-31830 | COLLAR | 30001- | |
| 16 | 707-71-11850 | RING | 30001- | |
| 17 | 01011-83330 | BOLT | 30001- | |
| 18 | 01643-33380 | WASHER | 30001- | |
| 19 | 707-58-17050 | ROD,PISTON | 30158- | |
| 19 | 21N-63-62321 | ROD,PISTON | 30001-30157 | |
| 20 | 707-46-16030 | BUSHING | 30001- | |
| 21 | 707-46-16040 | BUSHING | 30001- | |
| 22 | 707-77-16010 | SEAL,DUST (KIT) | 30001- | |
| 23 | 07043-00108 | PLUG | 30001- | |
| 24 | 707-36-25230 | PISTON | 30158- | |
| 24 | 707-36-25110 | PISTON | 30001-30157 | |
| 25 | 07000-15160 | O-RING (KIT) | 30158- | |
| 25 | 07000-15145 | O-RING (KIT) | 30001-30157 | |
| 26 | 07001-05160 | RING,BACK-UP (KIT) | 30158- | |
| 26 | 707-35-91550 | RING,BACK-UP (KIT) | 30001-30157 | |
| 27 | 707-44-25910 | RING | 30001- | |
| 28 | 707-39-25011 | RING,WEAR (KIT) | 30001- | |
| 29 | 707-44-25180 | RING,PISTON (KIT) | 30001- | |
| 30 | 707-40-28020 | SPACER | 30001-30157 | |
| 31 | 707-36-25150 | PISTON | 30001-30157 | |
| 32 | 707-71-50400 | PLUNGER | 30001- | |
| 33 | 04260-01270 | BALL | 30001- | |
| 34 | 707-71-91380 | PIN | 30158- | |
| 34 | 707-71-91390 | PIN | 30001-35157 | |
| 35 | 707-71-61800 | PLUNGER | 30158- | |
| 35 | 707-71-51852 | PLUNGER | 30001-30157 | |
| 36 | 01253-61630 | BOLT | 30001-30157 | |
| 37 | 21N-63-62371 | TUBE | 30001- | |
| 38 | 07000-13048 | O-RING (KIT) | 30001- | |
| 39 | 01010-81450 | BOLT | 30001- | |
| 40 | 01643-31445 | WASHER | 30001- | |
| 41 | 21N-62-18430 | BAND | 30001- | |
| 42 | 21N-63-62390 | BRACKET | 30001- | |
| 43 | 01010-81240 | BOLT | 30001- | |
| 44 | 01643-31232 | WASHER | 30001- | |
| 45 | 176-61-41330 | CLAMP | 30001- | |
| 46 | 01010-81250 | BOLT | 30001- | |
| 47 | 01643-31232 | WASHER | 30001- | |
| 48 | 21N-62-18450 | BLOCK | 30001- | |
| 49 | 07000-12060 | O-RING (KIT) | 30001- | |
| 50 | 01011-81890 | BOLT | 30001- | |
| 51 | 01643-31845 | WASHER | 30001- | |
| 52 | 07371-51470 | FLANGE | 30001- | |
| 53 | 707-88-33060 | CAP | 30001- | |
| 54 | 07371-51470 | FLANGE | 30001- | |
| 55 | 01010-81455 | BOLT | 30001- | |
| 56 | 01643-31445 | WASHER | 30001- | |
| 57 | 01310-01240 | SCREW | 30158- | |
| ==================== | ||||
| K | 707-98-85310 | SERVICE KIT | 30158- | |
| K | 707-99-89250 | SERVICE KIT | 30001-30157 |
