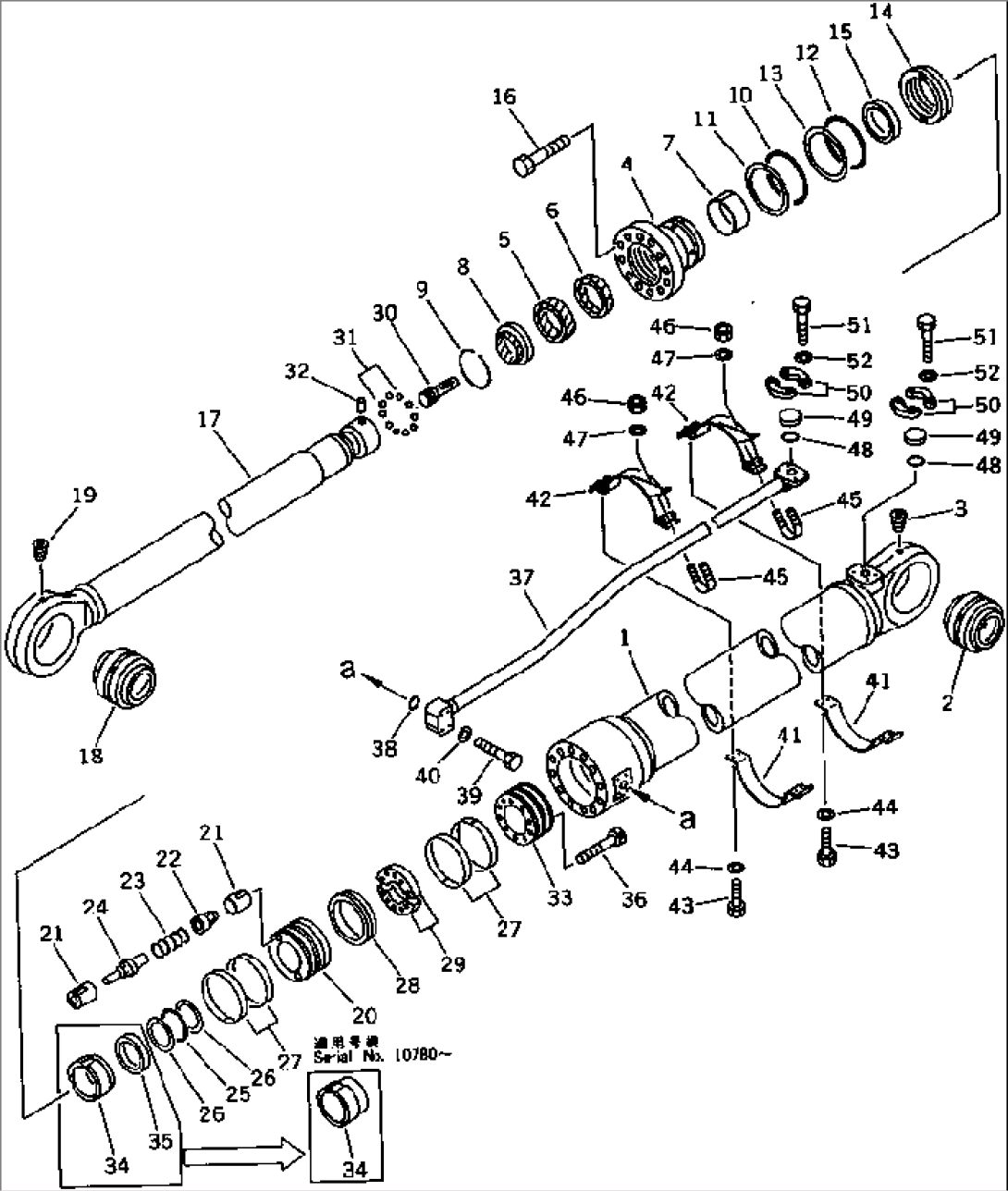

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\209-63-X2031) | ARM CYLINDER GROUP | 10780- | |
| G-1 | (\8\209-63-X2030) | ARM CYLINDER GROUP | 10501-10779 | |
| ==================== | ||||
| 209-63-02031 | CYLINDER ASS'Y | 10780- | ||
| \0\209-63-02030 | CYLINDER ASS'Y | 10501-10779 | ||
| 1 | 209-63-62540 | CYLINDER | 10501- | |
| 2 | 707-46-13010 | BUSHING | 10501- | |
| 3 | 07043-00108 | PLUG | 10501- | |
| 4 | 707-28-20520 | HEAD,CYLINDER | 10501- | |
| 5 | 707-51-14130 | PACKING,ROD (KIT) | 10501- | |
| 6 | 707-51-14630 | RING,BUFFER (KIT) | 10501- | |
| 7 | 707-52-91150 | BUSHING | 10780- | |
| 7 | \0\707-52-11410 | BUSHING | 10501-10779 | |
| 8 | 198-63-93170 | SEAL,DUST (KIT) | 10501- | |
| 9 | 07179-14160 | RING,SNAP | 10780- | |
| 9 | \1\707-75-14012 | RING,SNAP | 10501-10779 | |
| 10 | 07000-15195 | O-RING (KIT) | 10501- | |
| 11 | 707-35-92050 | RING,BACK-UP (KIT) | 10501- | |
| 12 | 07000-15195 | O-RING (KIT) | 10501- | |
| 13 | 07001-05195 | RING,BACK-UP (KIT) | 10501- | |
| 14 | 707-71-31460 | COLLAR | 10501- | |
| 15 | 707-71-11450 | RING | 10501- | |
| 16 | 01010-52790 | BOLT | 10501- | |
| 17 | 209-63-62520 | ROD,PISTON | 10501- | |
| 18 | 707-46-11520 | BUSHING | 10501- | |
| 19 | 07043-00108 | PLUG | 10501- | |
| 707-91-02081 | PISTON ASS'Y | 10780- | ||
| \0\707-91-02080 | PISTON ASS'Y | 10501-10779 | ||
| 20 | \6\ | PISTON | 10780- | |
| 20 | \6\ | PISTON | 10501-10779 | |
| 21 | \6\ | SEAT,VALVE | 10501- | |
| 22 | \6\ | VALVE | 10501- | |
| 23 | \6\ | SPRING | 10501- | |
| 24 | \6\ | VALVE,PISTON | 10501- | |
| 25 | 07000-12115 | O-RING (KIT) | 10501- | |
| 26 | 707-35-52860 | RING,BACK-UP (KIT) | 10501- | |
| 27 | 707-39-20820 | RING,WEAR (KIT) | 10501- | |
| 28 | 707-44-20180 | RING,PISTON (KIT) | 10780- | |
| 28 | \0\707-44-20080 | RING,PISTON (KIT) | 10501-10779 | |
| 29 | 707-40-20970 | SPACER | 10501- | |
| 30 | 707-71-50390 | PLUNGER | 10501- | |
| 31 | 04260-01270 | BALL | 10501- | |
| 32 | 707-71-91360 | PIN | 10501- | |
| 33 | 707-37-20020 | PISTON | 10501- | |
| 34 | 707-71-51461 | PLUNGER | 10780- | |
| 34 | \0\707-71-51460 | PLUNGER | 10501-10779 | |
| 35 | 707-40-20910 | RETAINER | 10501-10779 | |
| 36 | 01252-31490 | BOLT | 10501- | |
| 37 | 209-63-62570 | TUBE | 10501- | |
| 38 | 07000-13038 | O-RING (KIT) | 10501- | |
| 39 | 01010-51280 | BOLT | 10501- | |
| 40 | 01643-31232 | WASHER | 10501- | |
| 41 | 707-88-96110 | BAND | 10501- | |
| 42 | 707-88-96130 | BAND | 10501- | |
| 43 | 01010-51240 | BOLT | 10501- | |
| 44 | 01643-31232 | WASHER | 10501- | |
| 45 | 07283-24346 | CLIP | 10501- | |
| 46 | 01599-01011 | NUT | 10501- | |
| 47 | 01643-31032 | WASHER | 10501- | |
| 48 | 07000-13048 | O-RING (KIT) | 10501- | |
| 49 | 07378-11410 | HEAD,SLEEVE | 10501- | |
| 50 | 07371-51470 | FLANGE,SPLIT | 10501- | |
| 51 | 01010-51455 | BOLT | 10501- | |
| 52 | 01643-31445 | WASHER | 10501- | |
| ==================== |
