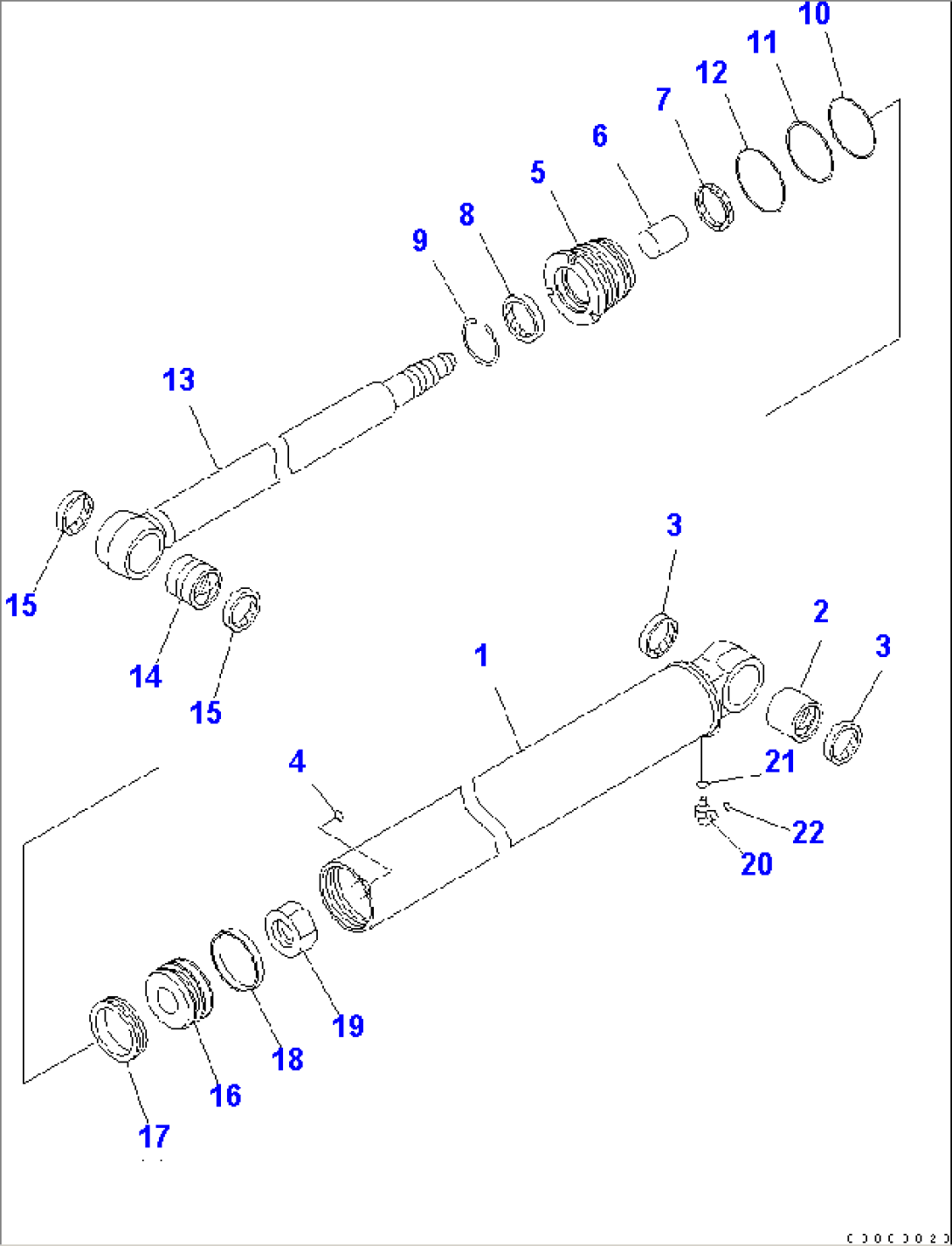

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\707-00-XE570) | CYLINDER GROUP | 5001- | |
| ==================== | ||||
| 707-00-0E570 | CYLINDER ASS'Y | 5001- | ||
| 1 | 707-11-75510 | CYLINDER | 5001- | |
| 2 | 707-76-40570 | BUSHING | 5001- | |
| 3 | 07145-00040 | SEAL,DUST (KIT) | 5001- | |
| 4 | 02896-11009 | O-RING (KIT) | 5001- | |
| 5 | 707-29-75010 | HEAD,CYLINDER | 5001- | |
| 6 | 07177-04530 | BUSHING | 5001- | |
| 7 | 707-51-45210 | PACKING,ROD (KIT) | 5001- | |
| 8 | 112-63-15370 | SEAL,DUST (KIT) | 5001- | |
| 9 | 07179-12057 | RING,SNAP | 5001- | |
| 10 | 07000-12070 | O-RING (KIT) | 5001- | |
| 11 | 707-35-52760 | RING,BACK-UP (KIT) | 5001- | |
| 12 | 07000-12075 | O-RING (KIT) | 5001- | |
| 13 | 721-58-45430 | ROD,PISTON | 5001- | |
| 14 | 707-76-40570 | BUSHING | 5001- | |
| 15 | 07145-00040 | SEAL,DUST (KIT) | 5001- | |
| 16 | 707-36-75470 | PISTON | 5001- | |
| 17 | 707-44-75180 | RING,PISTON (KIT) | 5001- | |
| 18 | 707-39-75190 | RING,WEAR (KIT) | 5001- | |
| 19 | 707-67-33010 | NUT | 5001- | |
| 20 | 02782-10315 | ELBOW | 5001- | |
| 21 | 07002-12034 | O-RING (KIT) | 5001- | |
| 22 | 02896-11009 | O-RING (KIT) | 5001- | |
| ==================== | ||||
| SERVICE KIT | ||||
| K | 707-98-23870 | SERVICE KIT | 5001- |
