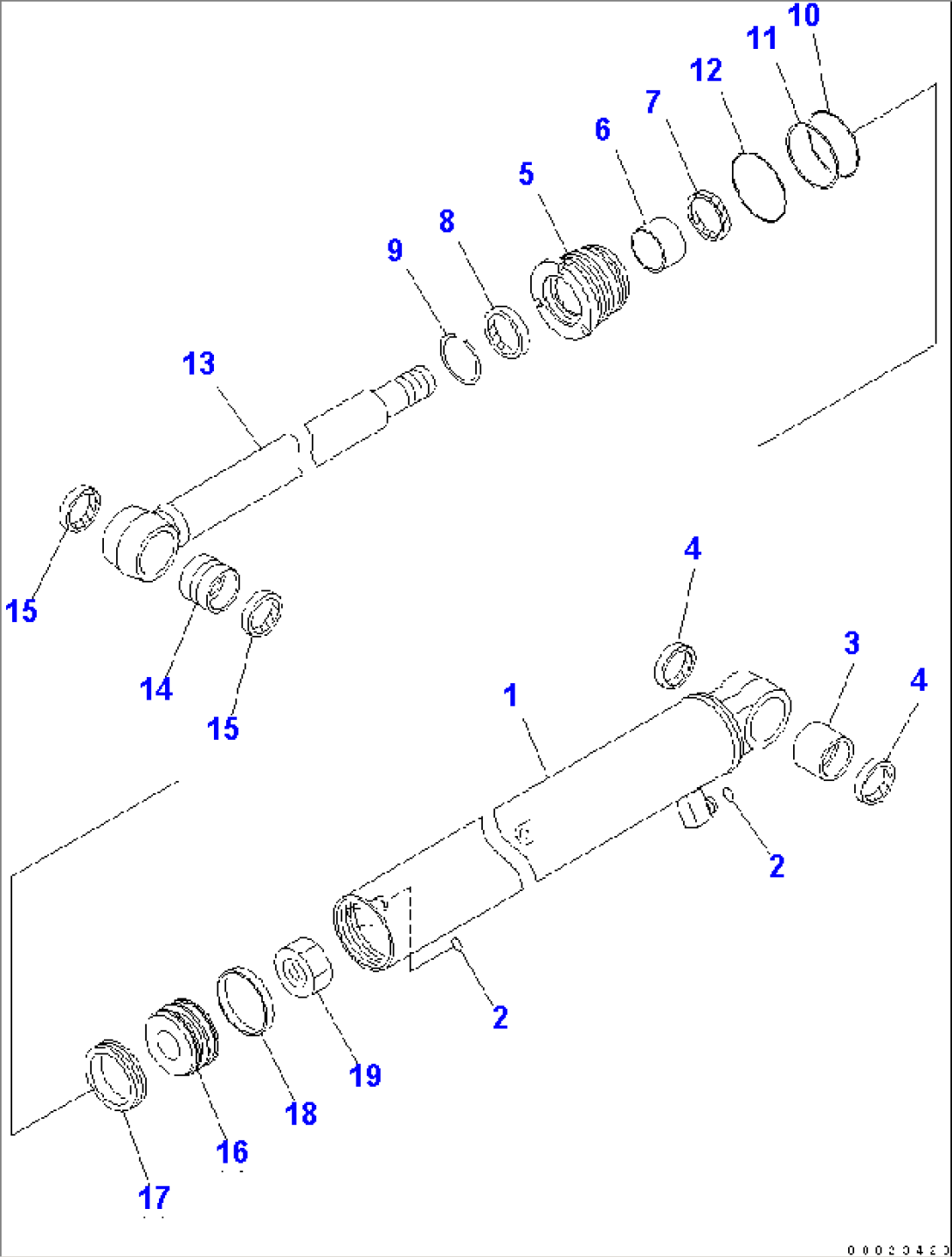

| Item | Part No. | Part Name | Qty | Serial No. |
| (\8\707-00-0Y740) | CYLINDER ASS'Y,ARM (FINAL COATING) | 17657- | ||
| 707-00-0F750 | CYLINDER ASS'Y,ARM | 15001-17656 | ||
| 1 | 707-11-65680 | CYLINDER | 15001- | |
| 2 | 02896-11009 | O-RING (KIT) | 15001- | |
| 3 | 707-76-35320 | BUSHING | 15001- | |
| 4 | 07145-00035 | SEAL,DUST (KIT) | 15001- | |
| 5 | 707-29-65842 | HEAD,CYLINDER | 15001- | |
| 6 | 07177-04025 | BUSHING | 15001- | |
| 7 | 707-51-40210 | PACKING,ROD (KIT) | 15001- | |
| 8 | 198-63-75190 | SEAL,DUST (KIT) | 15001- | |
| 9 | 07179-12052 | RING,SNAP | 15001- | |
| 10 | 07000-12060 | O-RING (KIT) | 15001- | |
| 11 | 707-35-52660 | RING,BACK-UP (KIT) | 15001- | |
| 12 | 07000-12065 | O-RING (KIT) | 15001- | |
| 13 | 707-58-40E60 | ROD,PISTON | 15001- | |
| 14 | 707-76-35320 | BUSHING | 15001- | |
| 15 | 07145-00035 | SEAL,DUST (KIT) | 15001- | |
| 16 | 707-36-65310 | PISTON | 15001- | |
| 17 | 707-44-65180 | RING,PISTON (KIT) | 15001- | |
| 18 | 707-39-65190 | RING,WEAR (KIT) | 15001- | |
| 19 | 707-67-30030 | NUT | 15001- | |
| SERVICE KIT | ||||
| KIT | 707-98-14910 | SERVICE KIT,ARM CYLINDER | 15001- |
