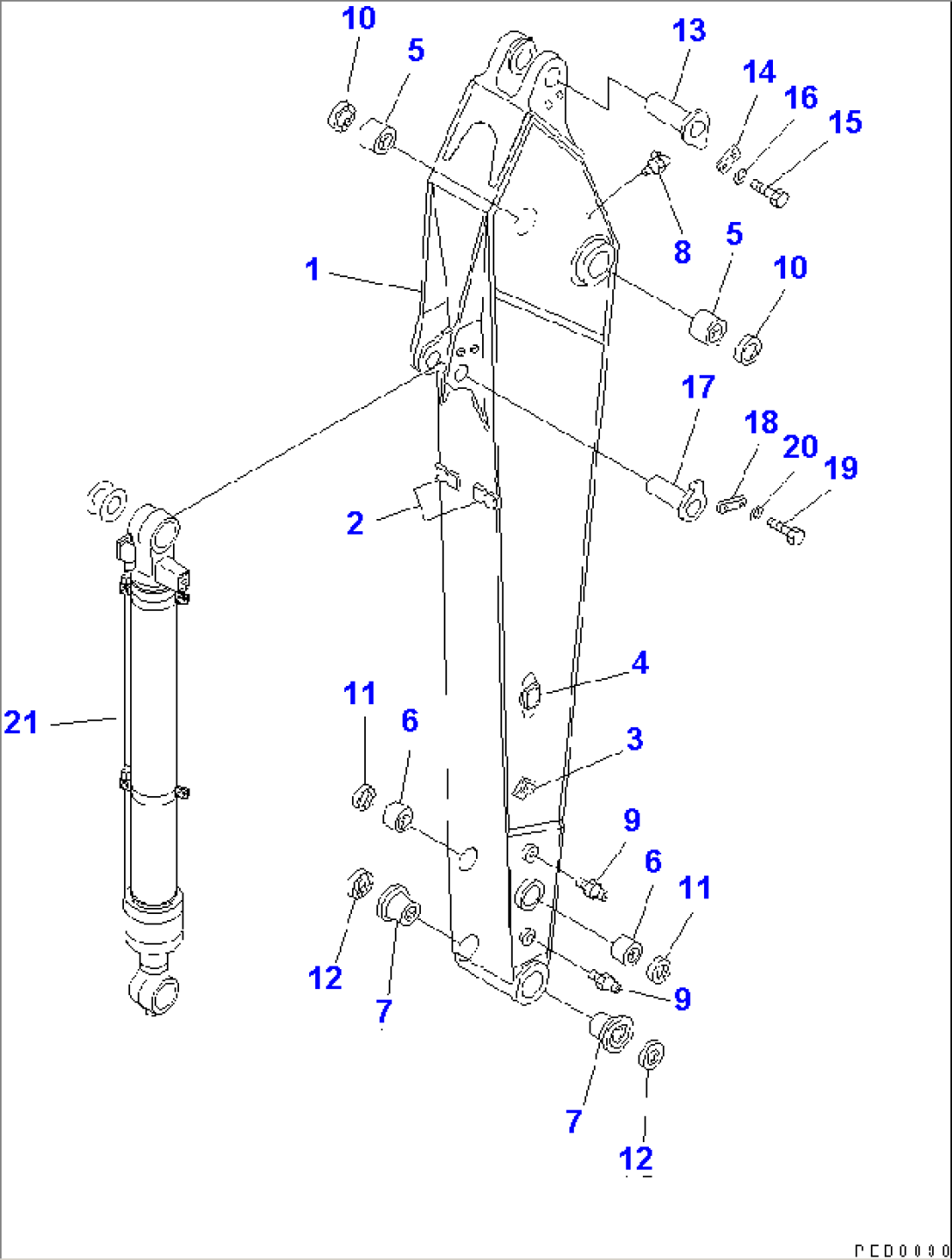

| Item | Part No. | Part Name | Qty | Serial No. |
| 206-970-6130 | ARM | 10001- | ||
| 1 | \6\ | ARM | 10001- | |
| 2 | 20Y-70-22G40 | SEAT | 10001- | |
| 3 | 20Y-970-3560 | BRACKET | 10001- | |
| 4 | 20Y-970-3570 | BRACKET | 10001- | |
| 5 | 205-70-72180 | BUSHING | 10001- | |
| 6 | 21K-70-12161 | BUSHING | 10001- | |
| 7 | 205-70-72130 | BUSHING | 10001- | |
| 8 | 07020-00900 | FITTING | 10001- | |
| 9 | 07020-00000 | FITTING | 10001- | |
| 10 | 07145-00090 | SEAL | 10001- | |
| 11 | 20Y-70-23230 | SEAL | 10316- | |
| 11 | \0\205-70-62140 | SEAL | 10001-10315 | |
| 12 | 205-70-62150 | SEAL | 10001- | |
| 13 | 206-70-51170 | PIN | 10001- | |
| 14 | 205-70-66580 | PLATE | 10001- | |
| 15 | 01010-81230 | BOLT | 10169- | |
| 15 | 01010-51230 | BOLT | 10001-10168 | |
| 16 | 01643-31232 | WASHER | 10001- | |
| 17 | 205-70-71320 | PIN | 10001- | |
| 18 | 205-70-66580 | PLATE | 10001- | |
| 19 | 01010-81230 | BOLT | 10169- | |
| 19 | 01010-51230 | BOLT | 10001-10168 | |
| 20 | 01643-31232 | WASHER | 10001- | |
| 21 | (\8\206-63-X9080) | BUCKET CYLINDER G.,(SEE FIG.Y1620-41A2) | 10277- | |
| 21 | (\8\206-63-X7030) | BUCKET CYLINDER G.,(SEE FIG.Y1620-41A2) | 10001-10276 |
