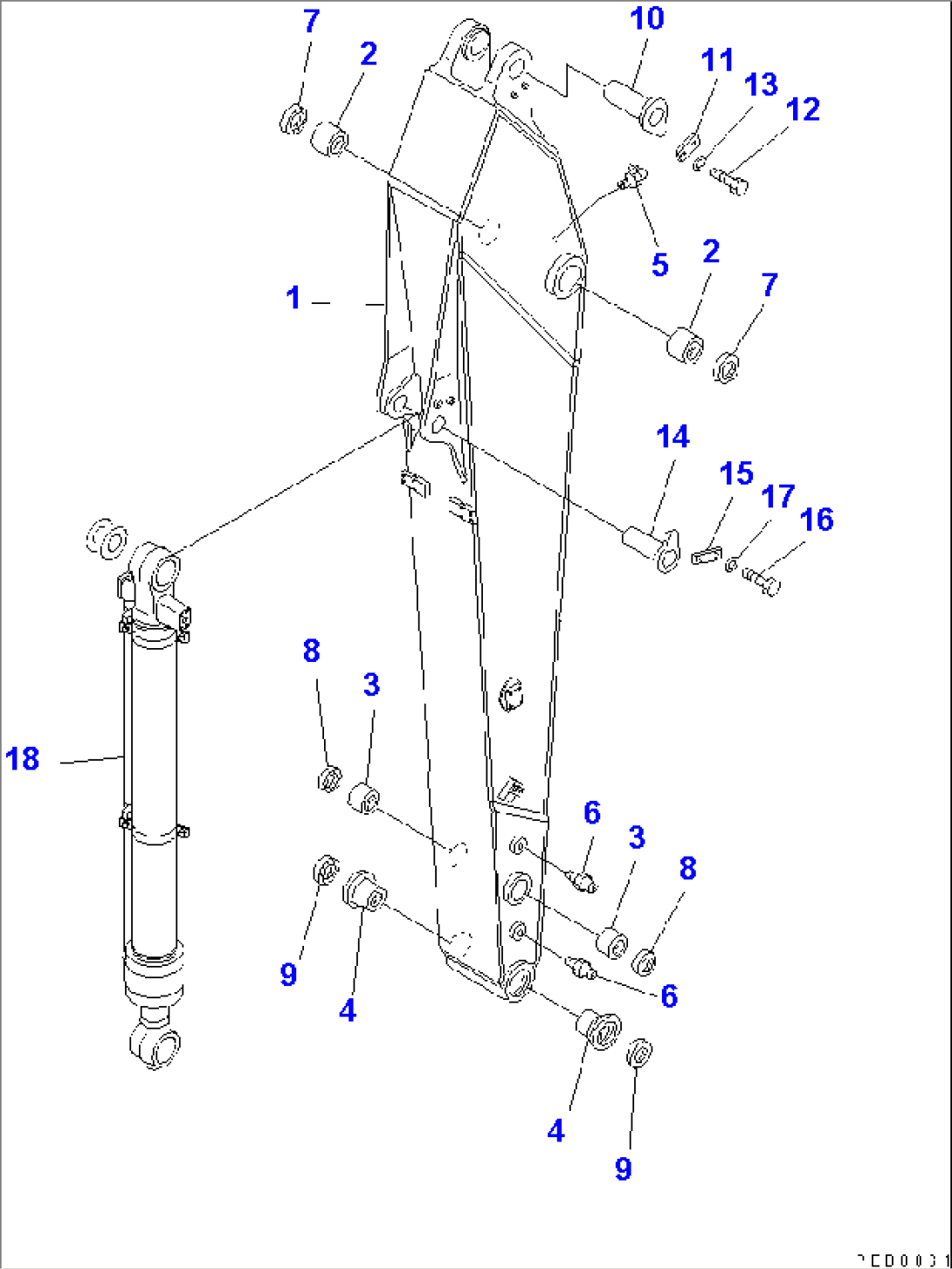

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 206-970-6110 | ARM | 10001- | |
| 2 | 205-70-72180 | BUSHING | 10001- | |
| 3 | 21K-70-12161 | BUSHING | 10001- | |
| 4 | 205-70-72130 | BUSHING | 10001- | |
| 5 | 07020-00900 | FITTING | 10001- | |
| 6 | 07020-00000 | FITTING | 10001- | |
| 7 | 07145-00090 | SEAL | 10001- | |
| 8 | 20Y-70-23230 | SEAL | 10050- | |
| 8 | \0\205-70-62140 | SEAL | 10001-10049 | |
| 9 | 205-70-62150 | SEAL | 10001- | |
| 10 | 206-70-51170 | PIN | 10001- | |
| 11 | 205-70-66580 | PLATE | 10001- | |
| 12 | 01010-81230 | BOLT | 10001- | |
| 13 | 01643-31232 | WASHER | 10001- | |
| 14 | 205-70-71320 | PIN | 10001- | |
| 15 | 205-70-66580 | PLATE | 10001- | |
| 16 | 01010-81230 | BOLT | 10001- | |
| 17 | 01643-31232 | WASHER | 10001- | |
| 18 | (\8\206-63-X9040) | BUCKET CYLINDER G.,(SEE FIG.Y1620-41A0C) | 10044- | |
| 18 | (\8\206-63-X3130) | BUCKET CYLINDER G.,(SEE FIG.Y1620-41A0C) | 10001-10043 |
