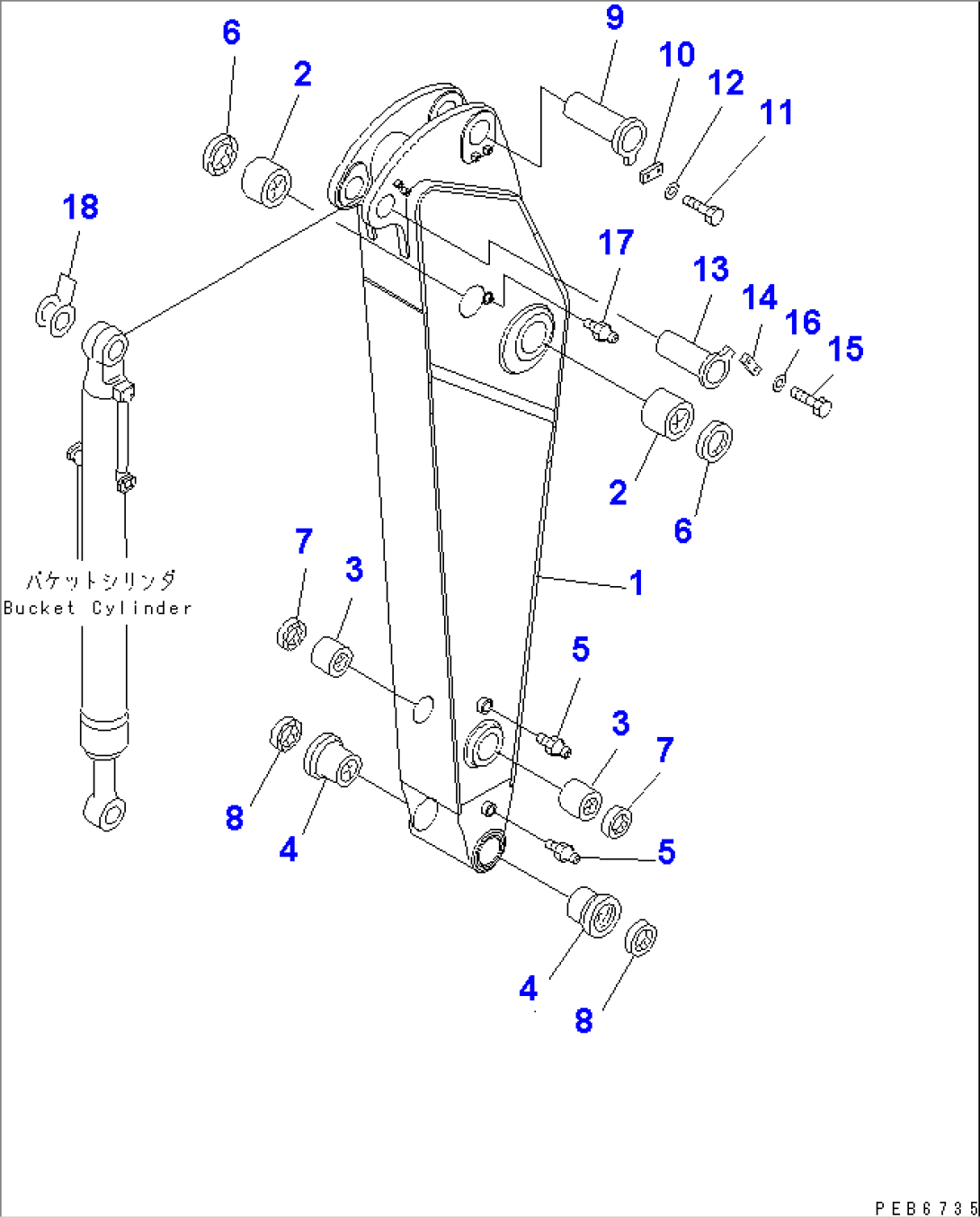

| Item | Part No. | Part Name | Qty | Serial No. |
| 207-944-0220 | SHORT ARM ASS'Y | 30001- | ||
| 1 | \6\ | ARM | 30001- | |
| 2 | 207-70-61521 | BUSHING | 30001- | |
| 3 | 207-70-32150 | BUSHING | 30001- | |
| 4 | 207-70-32140 | BUSHING | 30001- | |
| 5 | 07020-00000 | FITTING | 30001- | |
| 6 | 07145-00110 | SEAL | 30001- | |
| 7 | 205-70-62180 | SEAL | 30001- | |
| 8 | 207-70-12270 | SEAL | 30001- | |
| 9 | 208-70-61240 | PIN | 30001- | |
| 10 | 205-70-66580 | PLATE | 30001- | |
| 11 | 01010-81235 | BOLT | 30001- | |
| 12 | 01643-31232 | WASHER | 30001- | |
| 13 | 207-70-61220 | PIN | 30001- | |
| 14 | 205-70-66580 | PLATE | 30001- | |
| 15 | 01010-81235 | BOLT | 30001- | |
| 16 | 01643-31232 | WASHER | 30001- | |
| 17 | 07020-00000 | FITTING | 30001- | |
| 18 | 207-70-24190 | SPACER, 0.8MM | 30001- |
