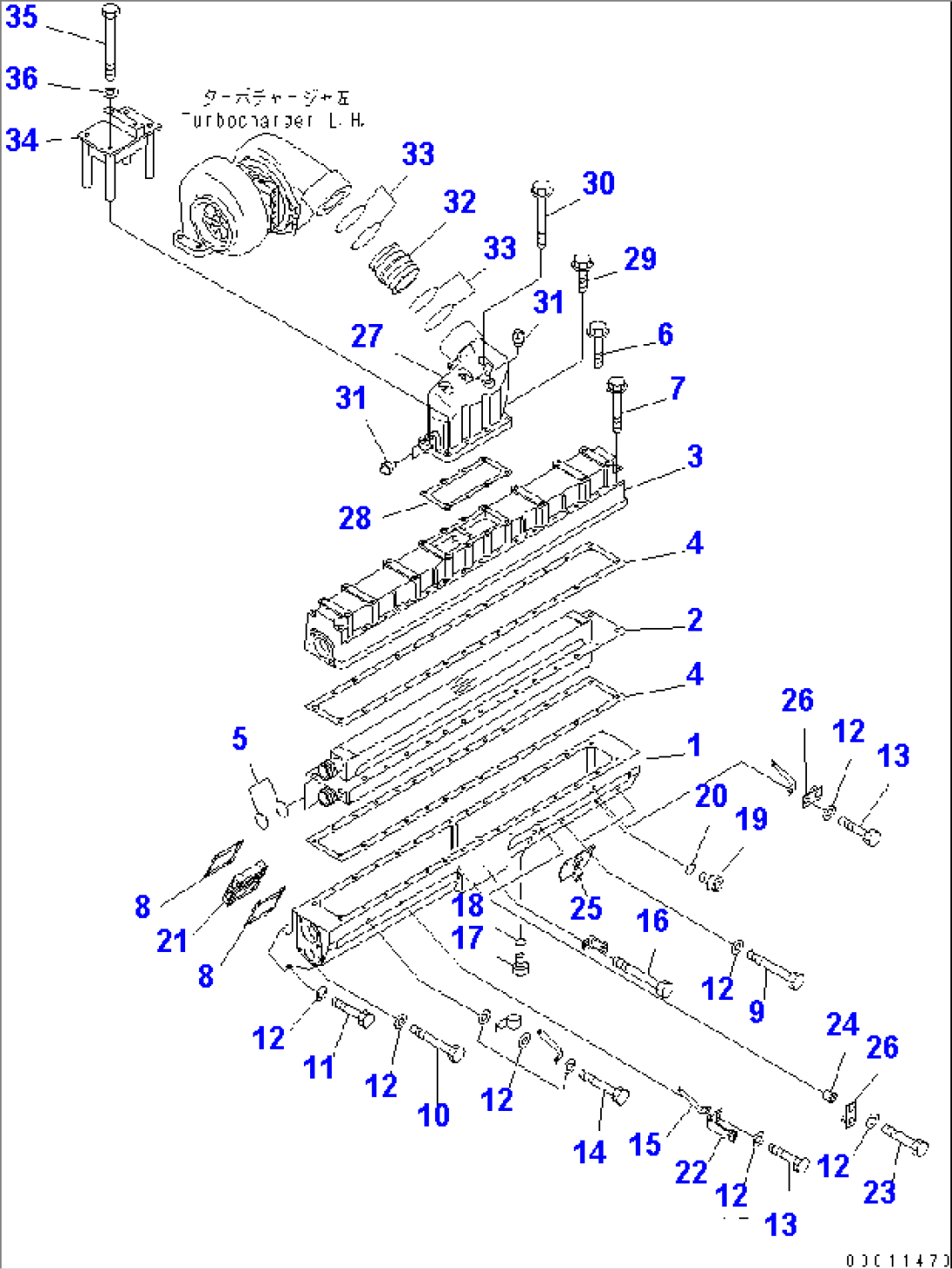

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6215-11-4121 | MANIFOLD,AIR INTAKE, L.H. | 13477- | |
| 2 | 6215-61-6220 | CORE | 13477- | |
| 3 | 6215-11-4221 | COVER | 13477- | |
| 4 | 6215-11-4720 | GASKET | 13477- | |
| 5 | 6212-61-6431 | O-RING (K1) | 13477- | |
| 6 | 01435-00895 | BOLT | 13477- | |
| 7 | 01436-01035 | BOLT | 13477- | |
| 8 | 6210-11-4811 | GASKET (K1) | 13477- | |
| 9 | 01011-81070 | BOLT | 13477- | |
| 10 | 01011-81060 | BOLT | 13477- | |
| 11 | 01011-81000 | BOLT | 13477- | |
| 12 | 01643-31032 | WASHER | 13477- | |
| 13 | 01011-81005 | BOLT | 13477- | |
| 14 | 01011-81015 | BOLT | 13477- | |
| 15 | 6215-81-8131 | PLATE | 13723- | |
| 15 | \0\6215-81-8130 | PLATE | 13477-13722 | |
| 16 | 01011-81065 | BOLT | 13477- | |
| 17 | 6215-81-9510 | PLUG | 13477- | |
| 18 | 6215-81-9710 | O-RING | 13477- | |
| 19 | 6215-81-9520 | PLUG | 13477- | |
| 20 | 6215-81-9720 | O-RING | 13477- | |
| 21 | 600-815-4291 | HEATER,RIBBON | 13477- | |
| 22 | 425-46-14130 | PLATE | 13477- | |
| 23 | 01011-81020 | BOLT | 13477- | |
| 24 | 6631-11-5630 | SPACER | 13477- | |
| 25 | 6215-81-8820 | BRACKET | 13477- | |
| 26 | 426-01-11310 | BRACKET | 13477- | |
| 27 | 6215-11-3340 | CONNECTOR | 13477- | |
| 28 | 6215-11-6210 | GASKET | 13477- | |
| 29 | 01435-01040 | BOLT | 13477- | |
| 30 | 01436-01060 | BOLT | 13477- | |
| 31 | 07042-70108 | PLUG | 13477- | |
| 32 | 6211-11-4410 | CONNECTOR | 13477- | |
| 33 | 02895-77075 | O-RING (K1) | 13477- | |
| 34 | 6215-61-7260 | BRACKET | 13477- | |
| 35 | 01011-81095 | BOLT | 13477- | |
| 36 | 01643-31032 | WASHER | 13477- |
