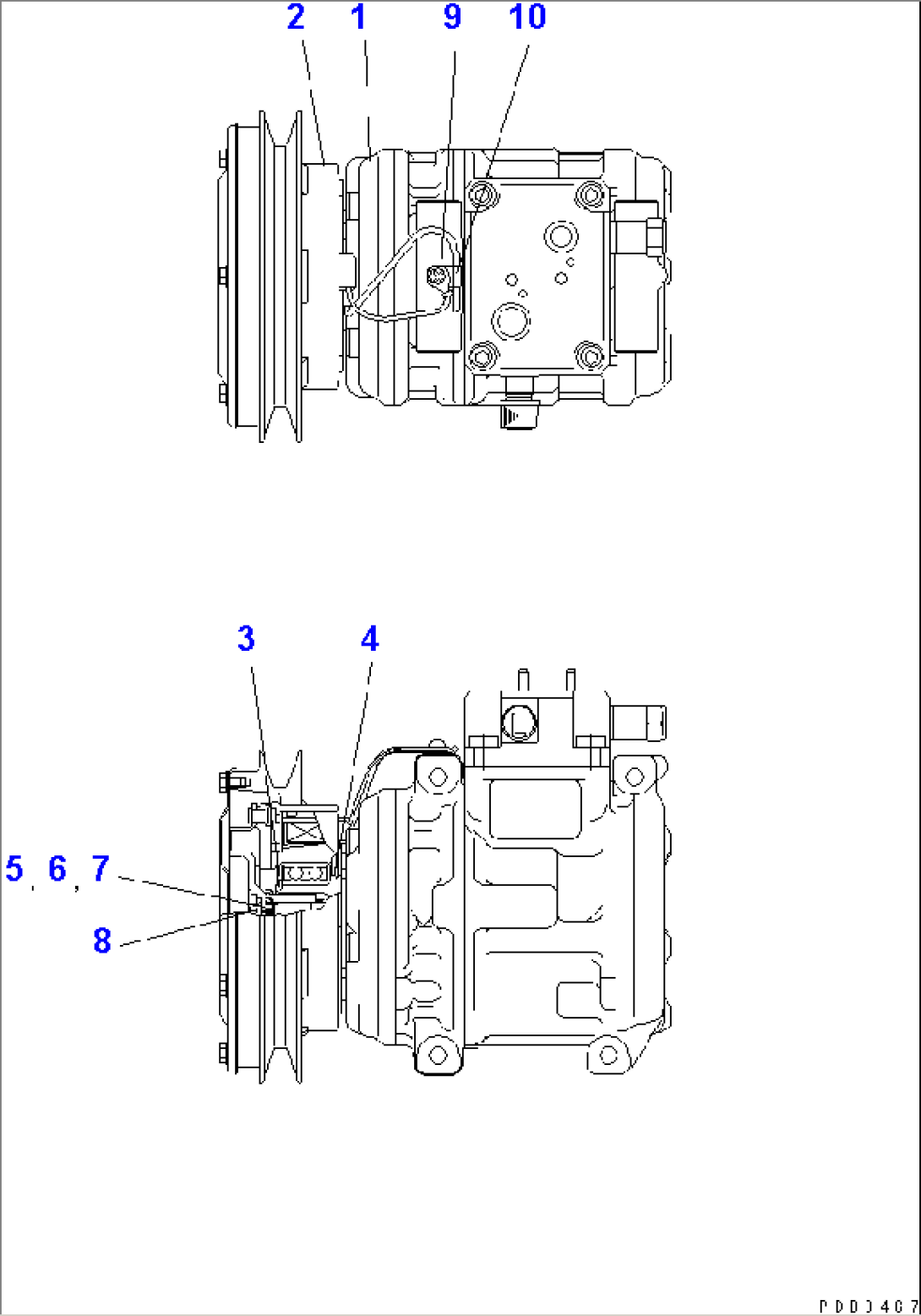

| Item | Part No. | Part Name | Qty | Serial No. |
| 11Y-979-5450 | AIR COMPRESSOR A. | .-@ | ||
| \0\20Y-979-3111 | AIR COMPRESSOR A. | 3717-. | ||
| \0\20Y-979-3110 | AIR COMPRESSOR A. | 3689-3716 | ||
| 1 | ND447200-0246 | COMPRESSOR ASS'Y | .-@ | |
| 1 | \0\ND447200-0243 | COMPRESSOR ASS'Y | 3717-. | |
| 1 | \0\ND447200-0240 | COMPRESSOR ASS'Y | 3689-3716 | |
| 2 | ND247300-5330 | CLUTCH ASS'Y | .-@ | |
| 2 | \0\ND447300-1440 | CLUTCH ASS'Y | 3689-. | |
| 3 | ND949070-1360 | RING, SNAP | 3717-@ | |
| 3 | \0\ND949070-0831 | RING, SNAP | 3689-3716 | |
| 4 | ND949070-0640 | RING, SNAP | 3689-@ | |
| 5 | ND949013-7480 | WASHER, 0.1MM | 3689-@ | |
| 6 | ND949013-7500 | WASHER, 0.3MM | 3689-@ | |
| 7 | ND949013-7510 | WASHER, 0.5MM | 3689-@ | |
| 8 | ND949048-0430 | BOLT | 3689-@ | |
| 9 | ND91310-05081 | SCREW | 3689-@ | |
| 10 | ND146691-4470 | CLAMP | 3689-@ |
