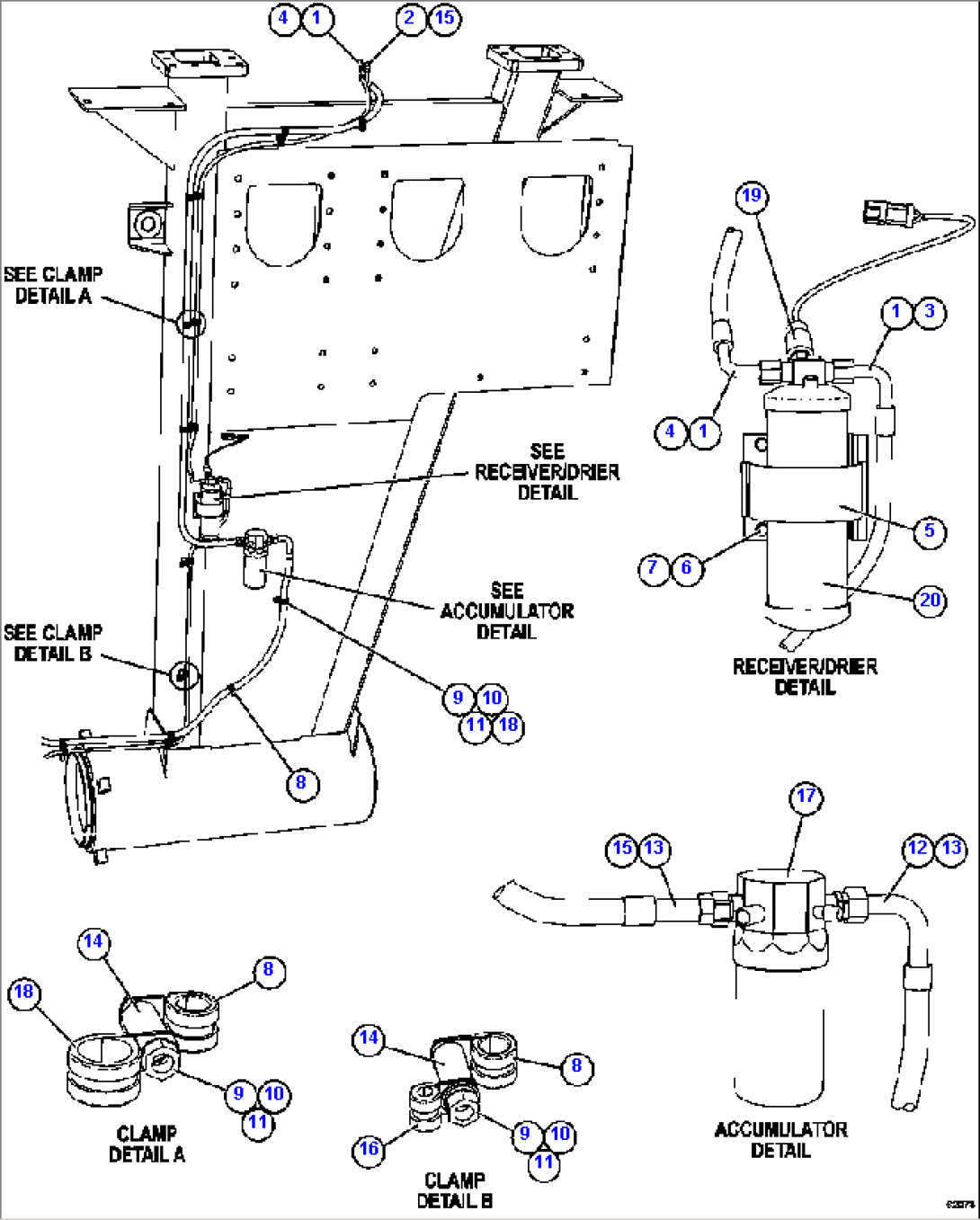

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | WA1731 | O-RING | ||
| 2 | WA1733 | O-RING | ||
| 3 | HA8215 | HOSE | ||
| 4 | HA8272 | HOSE | ||
| 5 | PC1341 | BRACKET | ||
| 6 | MM0027 | CAPSCREW - M6 X 1.00 X 25 | ||
| 7 | MM0459 | FLAT WASHER - M6 | ||
| 8 | WB1300 | CLAMP, CUSHIONED - 5/8" | ||
| 9 | MM0461 | FLAT WASHER - M10 | ||
| 10 | MM0471 | LOCKWASHER - M10 | ||
| 11 | MM0178 | NUT - M10 X 1.50 | ||
| 12 | HA8748 | HOSE | ||
| 13 | WB1027 | O-RING | ||
| 14 | TY8375 | SPACER | ||
| 15 | HA8216 | HOSE | ||
| 16 | WB1302 | CLAMP, CUSHIONED - 5/16" | ||
| 17 | PC1830 | ACCUMULATOR | ||
| 17 | XA4444 | CAP, DUST (LOW SIDE SERVICE PORT) | ||
| 17 | XA4445 | CAP, DUST (1/4" SWITCH PORT) | ||
| 18 | WB3093 | CLAMP, CUSHIONED - 1" | ||
| 19 | PC1804 | SWITCH, TRINARY | ||
| 20 | PC2268 | RECEIVER DRIER |
