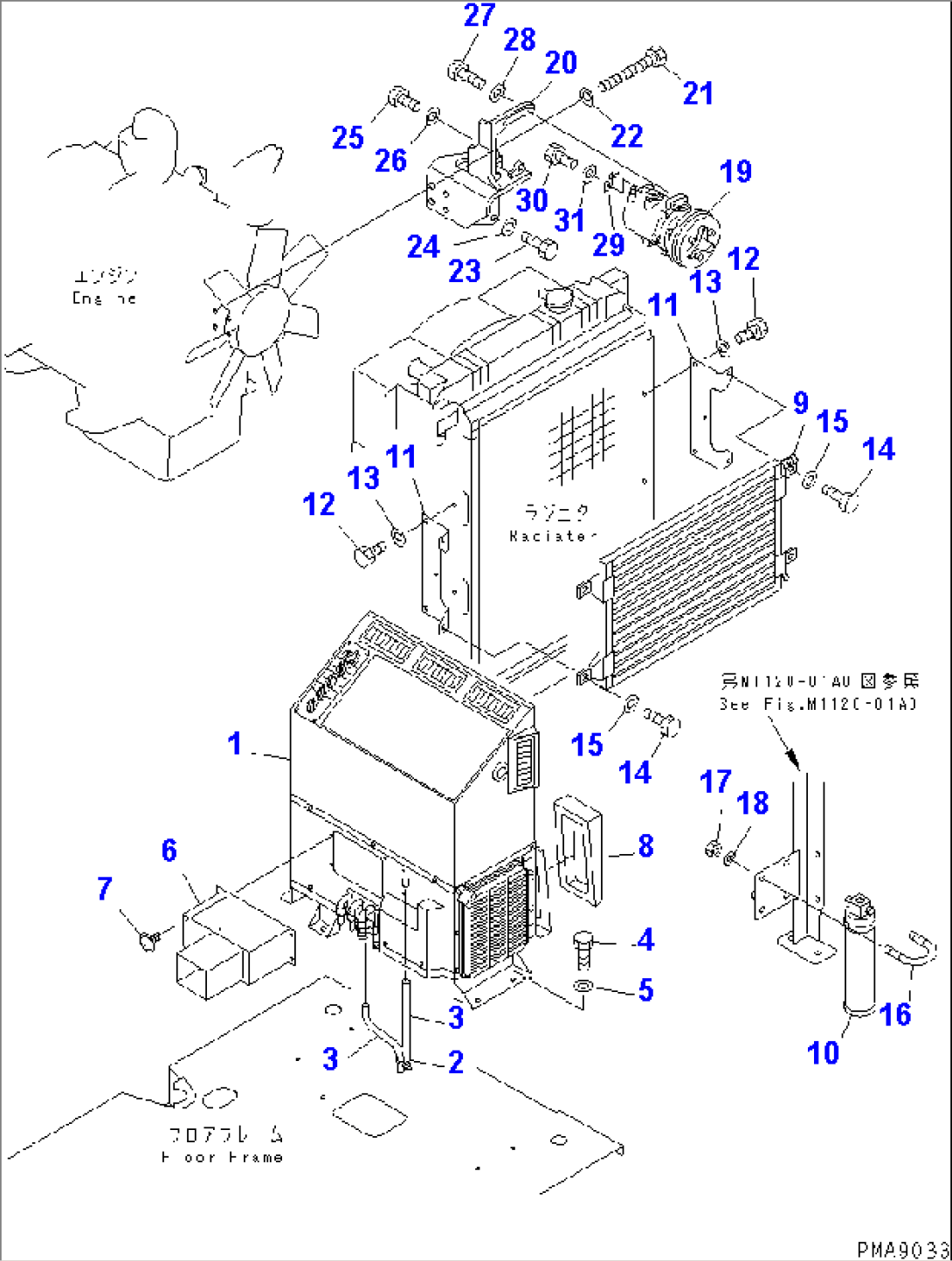

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (201-979-7111) | AIR CONDITIONER UNIT | 1004-1190 | |
| 2 | 08034-00519 | BAND | 1004-1190 | |
| 3 | 203-979-6520 | HOSE | 1004-1190 | |
| 4 | 01010-81025 | BOLT | 1004-1190 | |
| 5 | 01643-31032 | WASHER | 1004-1190 | |
| 6 | 201-979-7180 | DUCT | 1004-1190 | |
| 7 | 01023-20510 | SCREW | 1004-1190 | |
| 8 | 20Y-979-2250 | SEAL | 1004-1190 | |
| 9 | 203-979-6380 | CONDENSER ASS'Y | 1004-1190 | |
| 10 | 203-979-6610 | RECEIVER DRYER | 1004-1190 | |
| 11 | 203-979-6320 | BRACKET | 1004-1190 | |
| 12 | 01010-81020 | BOLT | 1004-1190 | |
| 13 | 01643-31032 | WASHER | 1004-1190 | |
| 14 | 01010-81025 | BOLT | 1004-1190 | |
| 15 | 01643-31032 | WASHER | 1004-1190 | |
| 16 | 07283-27060 | CLIP | 1004-1190 | |
| 17 | 01599-01011 | NUT | 1004-1190 | |
| 18 | 01643-31032 | WASHER | 1004-1190 | |
| 19 | 203-979-6580 | COMPRESSOR ASS'Y | 1004-1190 | |
| 20 | 203-979-6290 | BRACKET | 1004-1190 | |
| 21 | 01010-81075 | BOLT | 1004-1190 | |
| 22 | 01643-31032 | WASHER | 1004-1190 | |
| 23 | 01010-81025 | BOLT | 1004-1190 | |
| 24 | 01643-31032 | WASHER | 1004-1190 | |
| 25 | 01011-81015 | BOLT | 1004-1190 | |
| 26 | 01643-31032 | WASHER | 1004-1190 | |
| 27 | 01010-81030 | BOLT | 1004-1190 | |
| 28 | 01643-31032 | WASHER | 1004-1190 | |
| 29 | 08053-01512 | CLIP | 1004-1190 | |
| 30 | 01010-81020 | BOLT | 1004-1190 | |
| 31 | 01643-31032 | WASHER | 1004-1190 |
