| Item | Part No. | Part Name | Qty | Serial No. |

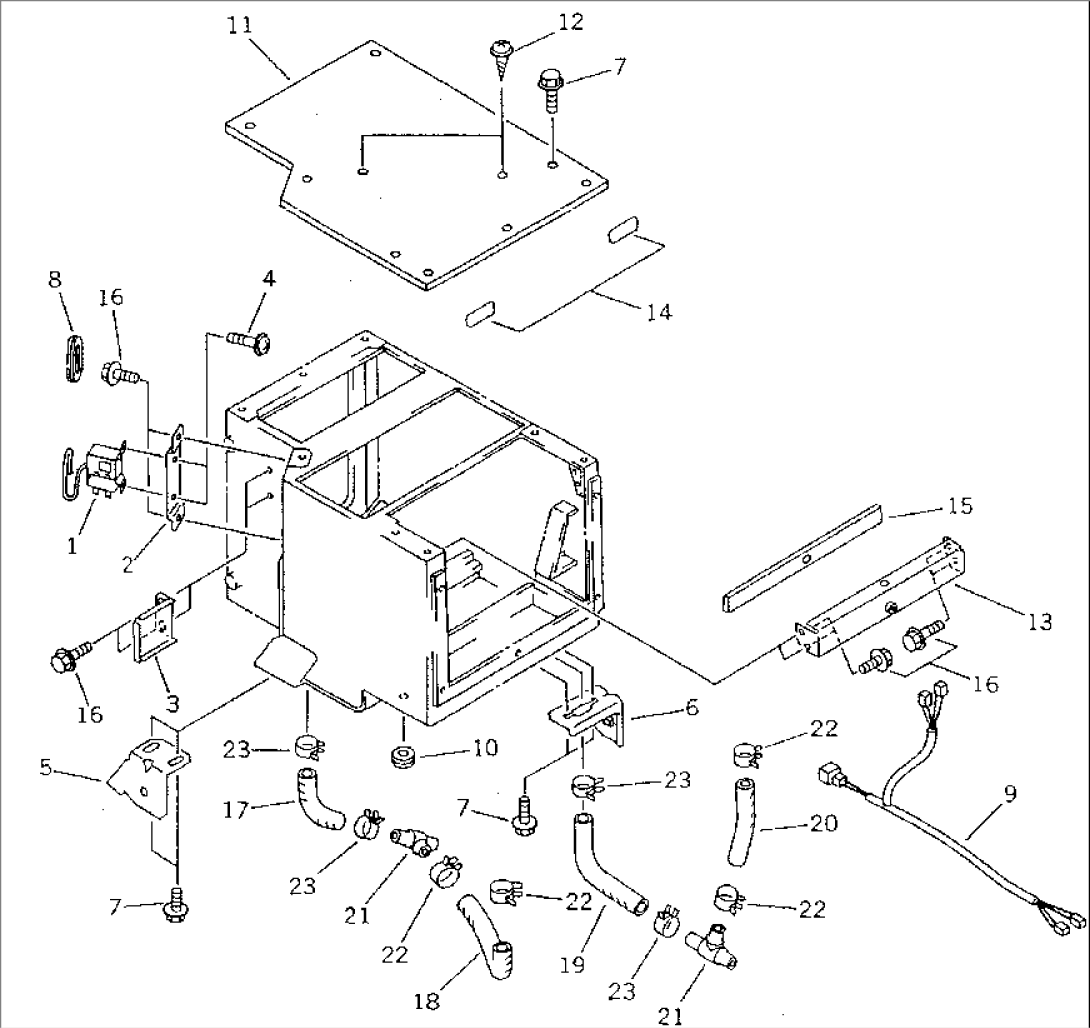

| (14X-911-7101) | AIR CONDITIONER UNIT | 60001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K2210-0701 AND K2210-0801. | ||||
| 1 | ND113550-0650 | THERMOSTAT | 60001- | |
| 2 | ND145461-7500 | BRACKET | 60001- | |
| 3 | ND145461-7511 | BRACKET | 60001- | |
| 4 | ND91370-04101 | SCREW | 60001- | |
| 5 | ND245440-2591 | BRACKET | 60001- | |
| 6 | ND245440-2601 | BRACKET | 60001- | |
| 7 | ND91478-08161 | BOLT | 60001- | |
| 8 | ND949321-9510 | GROMMET | 60001- | |
| 9 | ND146421-7561 | WIRE | 60001- | |
| 10 | ND949321-6140 | GROMMET | 60001- | |
| 11 | ND146370-5001 | COVER | 60001- | |
| 12 | ND949001-1470 | SCREW | 60001- | |
| 13 | ND245440-2610 | CASE | 60001- | |
| 14 | ND146648-2470 | PACKING | 60001- | |
| 15 | ND146622-9700 | PACKING | 60001- | |
| 16 | ND91510-06081 | BOLT | 60001- | |
| 17 | ND146310-5710 | HOSE | 60001- | |
| 18 | ND146310-5720 | HOSE | 60001- | |
| 19 | ND146310-5730 | HOSE | 60001- | |
| 20 | ND146310-5740 | HOSE | 60001- | |
| 21 | ND146321-0220 | CONNECTOR | 60001- | |
| 22 | ND246690-4810 | CLAMP | 60001- | |
| 23 | ND246690-2740 | CLAMP | 60001- |
