| Item | Part No. | Part Name | Qty | Serial No. |
| 425-07-21111 | AIR CONDITIONER U. | 70001- | ||
| 1 | (ND445800-9183) | AIR CONDITIONER | 70001- | |
| 2 | (ND116300-4632) | BLOWER ASS'Y | 72766- | |
| 2 | (ND116300-4631) | BLOWER ASS'Y | 70001-72765 | |
| 3 | ND90930-06141 | SCREW | 70001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250pt 5 s/n 70001 up (parallel linkage spec.)
- Service kit and component parts
- Air conditioner unit (inner parts)
Поиск по каталогу

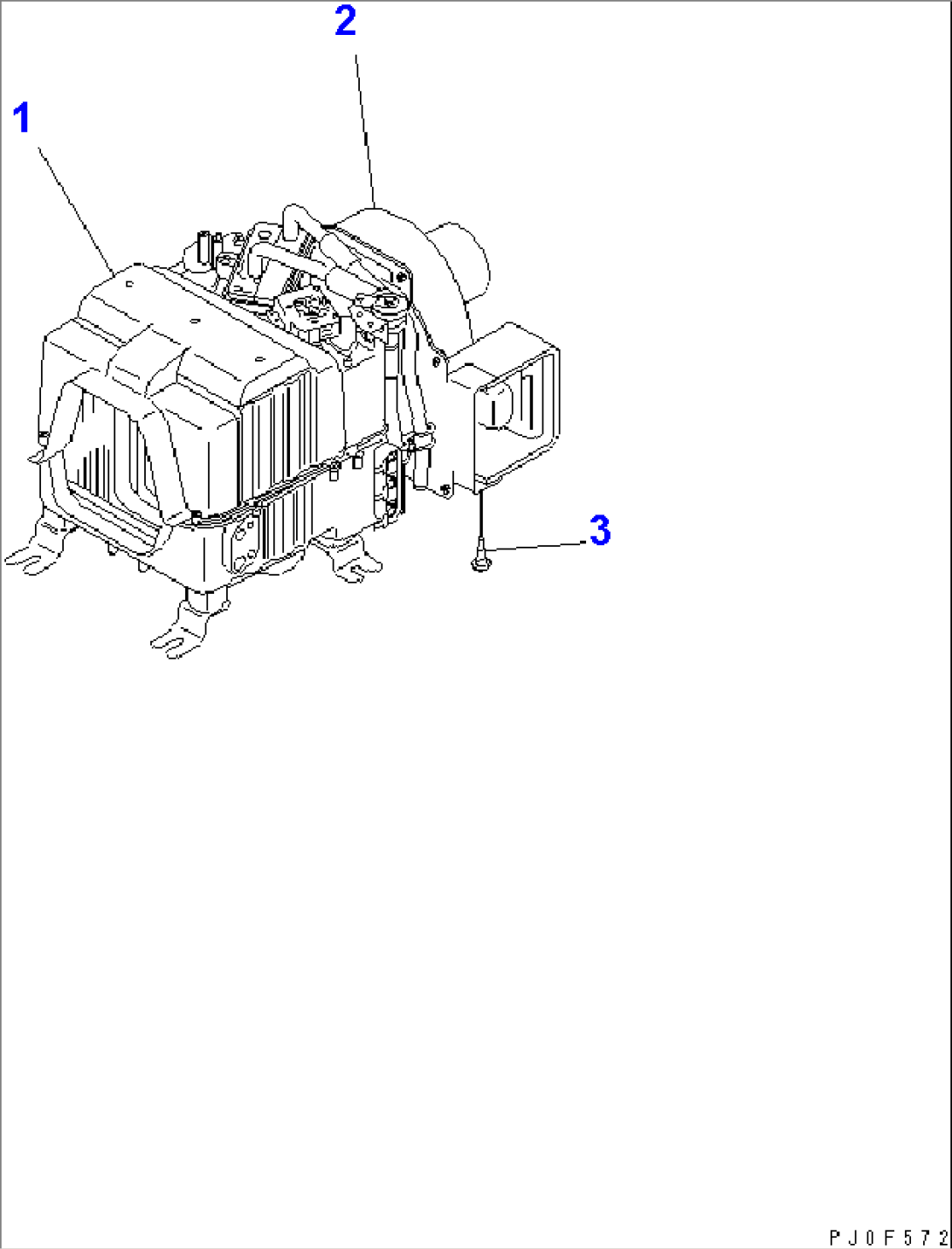

AIR CONDITIONER UNIT (INNER PARTS)
