| Item | Part No. | Part Name | Qty | Serial No. |
| (426-963-1510) | AIR CONDITIONER A. | .-10694 | ||
| (\9\\9\425-963-1111) | AIR CONDITIONER A. | 10516-. | ||
| (425-963-1110) | AIR CONDITIONER A. | 10050-10515 | ||

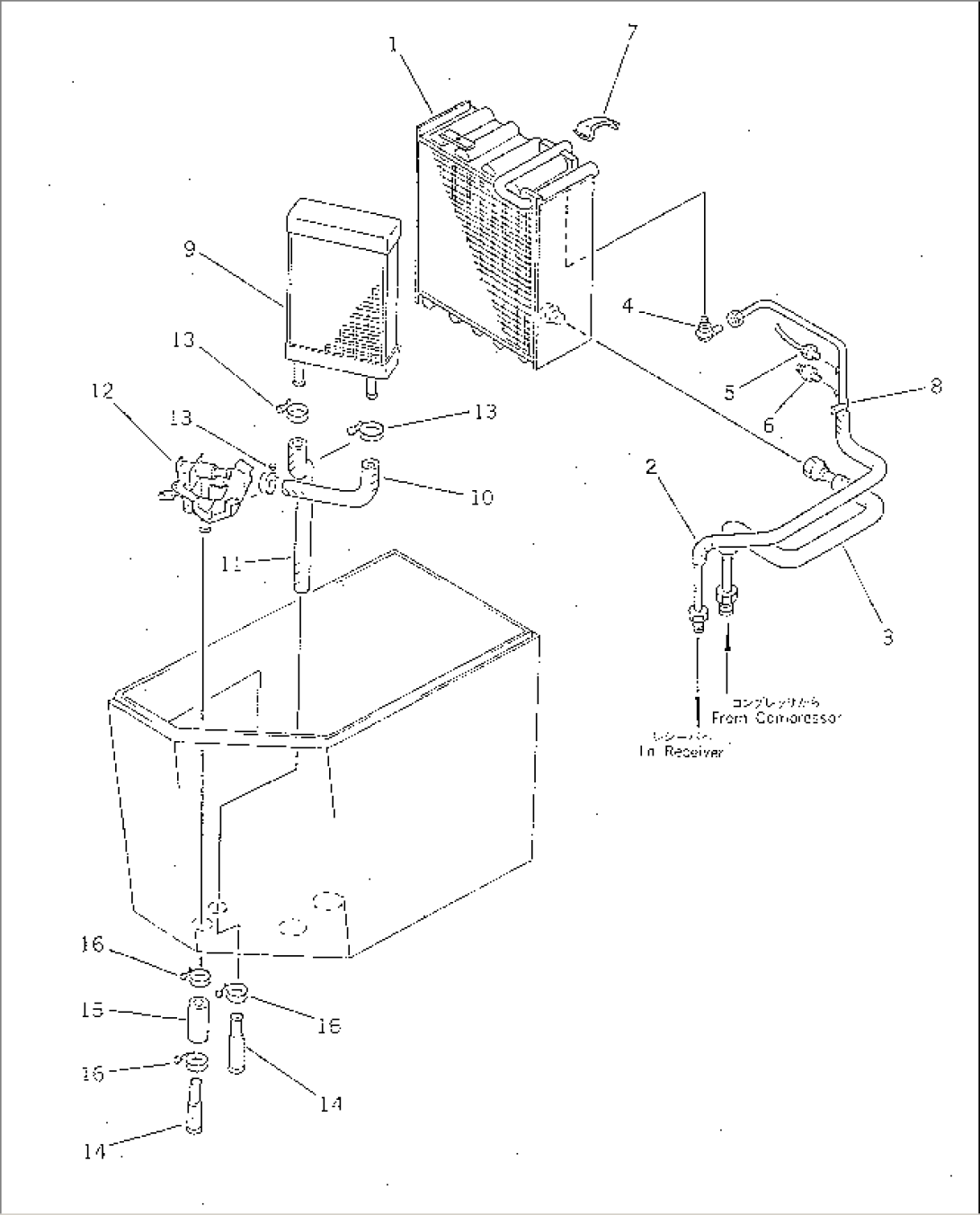

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5531 TO 5533. | ||||
| 1 | 425-963-1650 | EVAPORATOR | 10050-10694 | |
| 2 | 425-963-1710 | TUBE,LIQUID | 10050-10694 | |
| 3 | 425-963-1720 | TUBE,SUCTION | 10050-10694 | |
| 4 | 425-963-2180 | VALVE,EXPANSION | 10050-10694 | |
| 5 | 425-963-1890 | SWITCH,LOW PRESSURE | 10050-10694 | |
| 6 | 425-963-1910 | SWITCH,HIGH PRESSURE | 10050-10694 | |
| 7 | 425-963-2230 | CLIP | 10050-@ | |
| 8 | 425-963-2240 | CLAMP | 10050-@ | |
| 9 | 425-963-1660 | HEATER COIL ASS'Y | 10050-@ | |
| 10 | 425-963-1730 | HOSE,WATER | 10050-@ | |
| 11 | 425-963-1740 | HOSE,WATER | 10050-@ | |
| 12 | 425-963-1840 | VALVE,WATER | 10050-@ | |
| 13 | 425-963-1950 | CLAMP | 10050-@ | |
| 14 | 425-963-2290 | PIPE | 10050-@ | |
| 15 | 425-963-2310 | HOSE | 10050-@ | |
| 16 | 425-963-2320 | CLAMP | 10050-@ |
