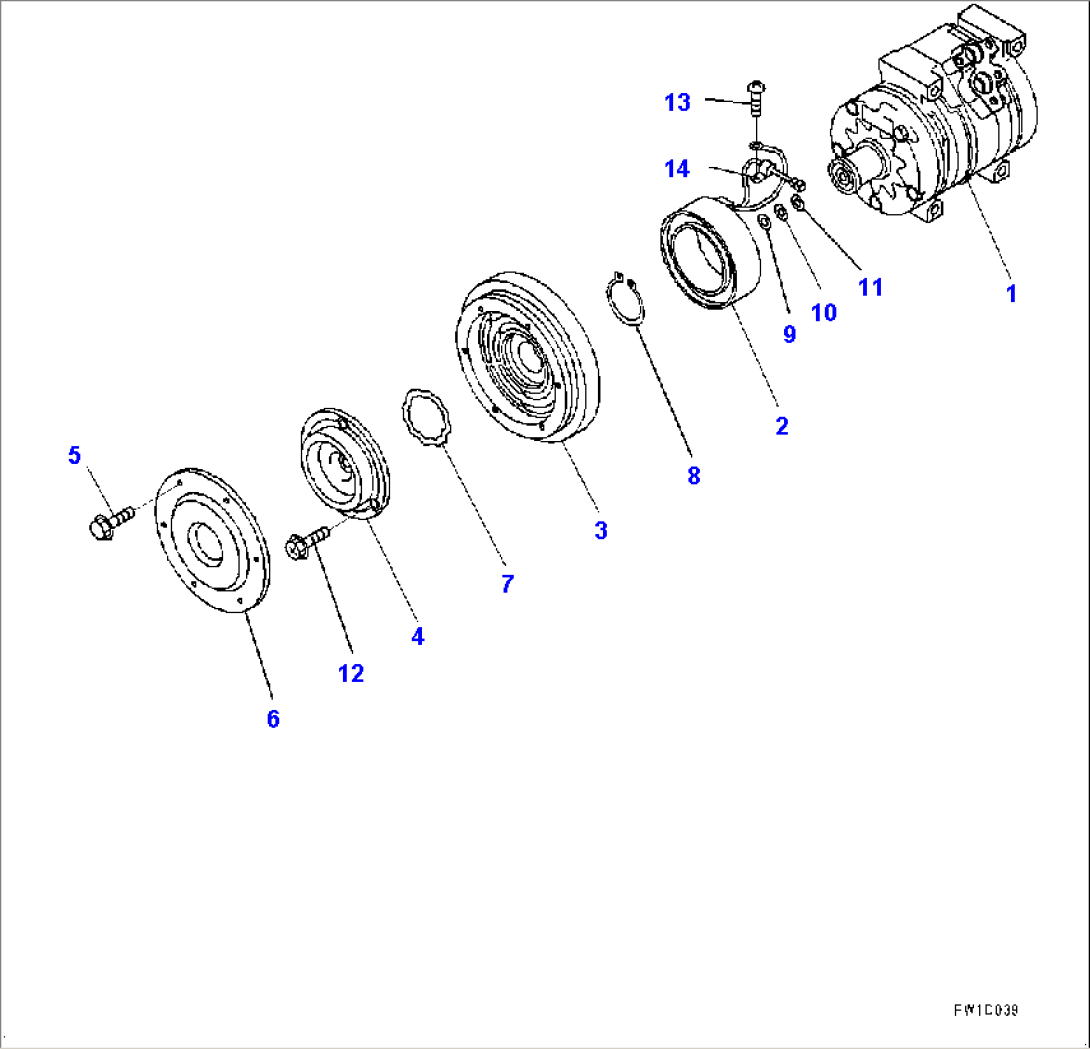

| Item | Part No. | Part Name | Qty | Serial No. |
| 20Y-810-1260 | Compressor Assembly | 65236- | ||
| 1 | ND447220-4051 | Compressor Assembly | 65236- | |
| 1 | ND247300-0510 | Clutch Assembly, Magnetic | 65236- | |
| 2 | ND047310-7240 | Stator | 65236- | |
| 3 | Rotor | 65236- | ||
| 4 | ND047410-1570 | Hub | 65236- | |
| 4 | ND047410-1580 | Hub | 65236- | |
| 5 | ND949047-2950 | Bolt and Washer | 65236- | |
| 6 | ND047372-0660 | Dust Cover | 65236- | |
| 7 | ND949070-1360 | Ring, Snap | 65236- | |
| 7 | ND949070-0640 | Ring, Snap | 65236- | |
| 8 | ND949070-1390 | Ring Assembly | 65236- | |
| 9 | ND949013-7480 | Washer, T=0.1mm | 65236- | |
| 10 | ND949013-7500 | Washer, T=0.3mm | 65236- | |
| 11 | ND949013-7510 | Washer, T=0.5mm | 65236- | |
| 12 | ND949048-0430 | Bolt | 65236- | |
| 13 | ND91310-05081 | Screw | 65236- | |
| 14 | ND146691-4470 | Clamp | 65236- |
