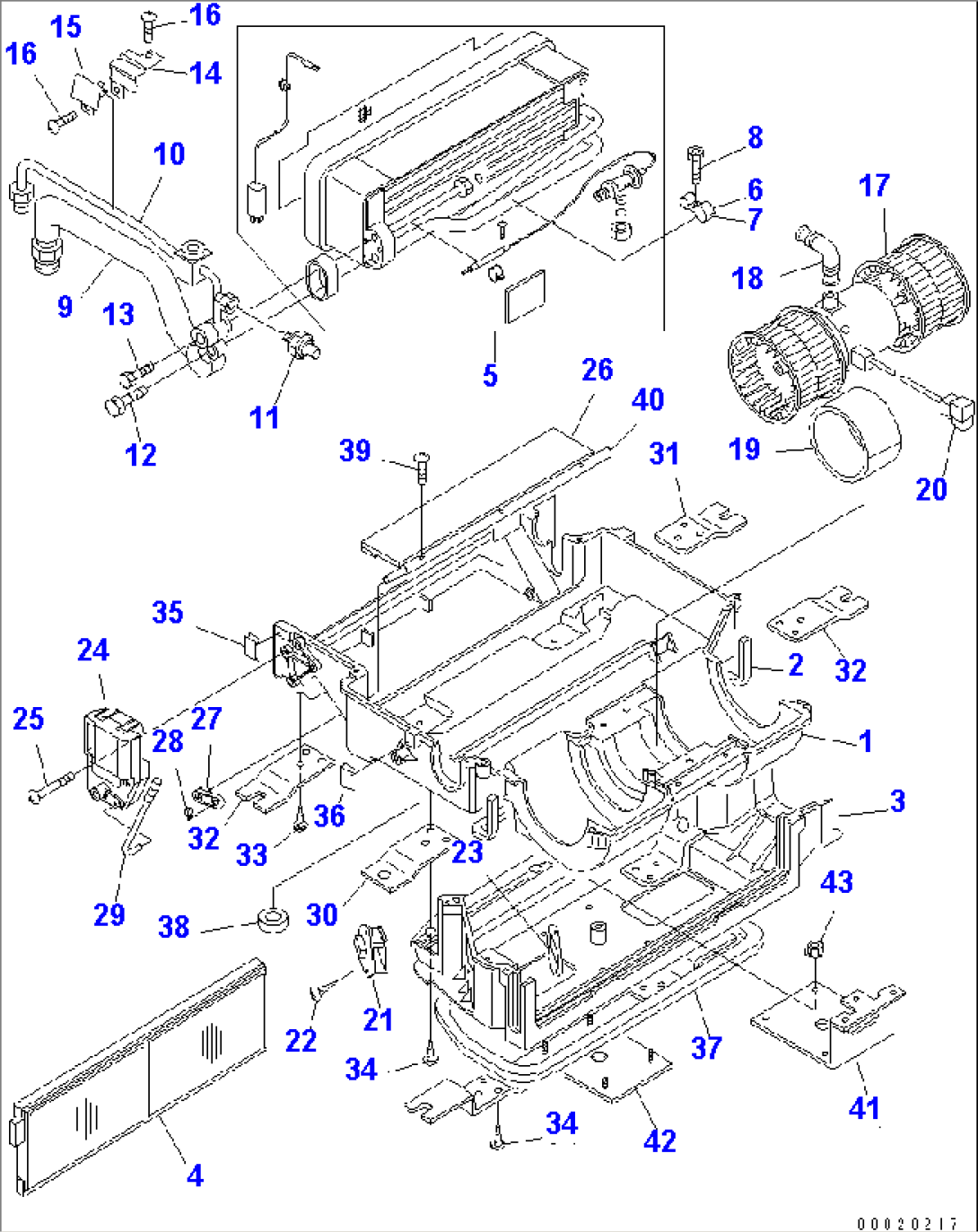

AIR CONDITIONER UNIT (2/2) (AUTO AIR CONDITIONER)

AIR CONDITIONER UNIT (2/2) (AUTO AIR CONDITIONER)
ItemPart No.Part NameQtySerial No.
(22U-979-1730)UNIT ASS'Y30001-
DK534138-6720CASE ASS'Y30001-
1DK534136-9301CASE30001-
2DK534189-9100LINING30001-
3DK534461-8902COVER30001-
422B-979-1730FILTER30001-
\6\FILTER30001-
\6\LINING30001-
5(DK503700-4770)EVAPORATOR ASS'Y30001-
6DK580534-1500CLIP30001-
7DK580534-1600CLIP30001-
8DK012114-1240SCREW30001-
9DK534057-3520PIPE30001-
DK535237-9220PIPE ASS'Y30001-
10DK535237-9120PIPE30001-
11DK582532-0700PRESSURE SWITCH30001-
12DK020058-3040BOLT30001-
13DK020046-3040BOLT30001-
14DK580534-2000CLIP30001-
15DK580534-1900CLIP30001-
16DK592022-3700SCREW30001-
17DK502725-1730FAN MOTOR30001-
18DK534510-5200HOSE30001-
19DK592405-1700ISOLATOR30001-
20DK536021-5200WIRING HARNESS30001-
21DK582571-9300RESISTOR30001-
22DK012514-1640SCREW30001-
23DK523100-0700PLATE30001-
24DK502752-3250MOTOR ACTUATOR30001-
25DK580140-0300SCREW30001-
26DK534270-7920DOOR30001-
27DK534470-9200LEVER30001-
28DK592055-0900CLIP30001-
29DK536160-2100ROD30001-
30DK534104-4300BRACKET30001-
31DK534104-4400BRACKET30001-
32DK534104-5000BRACKET30001-
33DK592022-3700SCREW30001-
34DK012514-1640SCREW30001-
35DK580521-7700CLIP30001-
36DK592024-1800CLIP30001-
37DK534190-0300LINING30001-
38DK534234-6300SEAL30001-
39DK012153-0640SCREW30001-
40DK534280-1500SHAFT30001-
41DK534104-7300BRACKET30001-
42DK534104-7500BRACKET30001-
43DK029200-6240NUT30001-
