| Item | Part No. | Part Name | Qty | Serial No. |
| (195-911-7211) | UNIT ASS'Y | 3791- | ||
| (\0\195-911-7210) | UNIT ASS'Y | 3689-3790 | ||

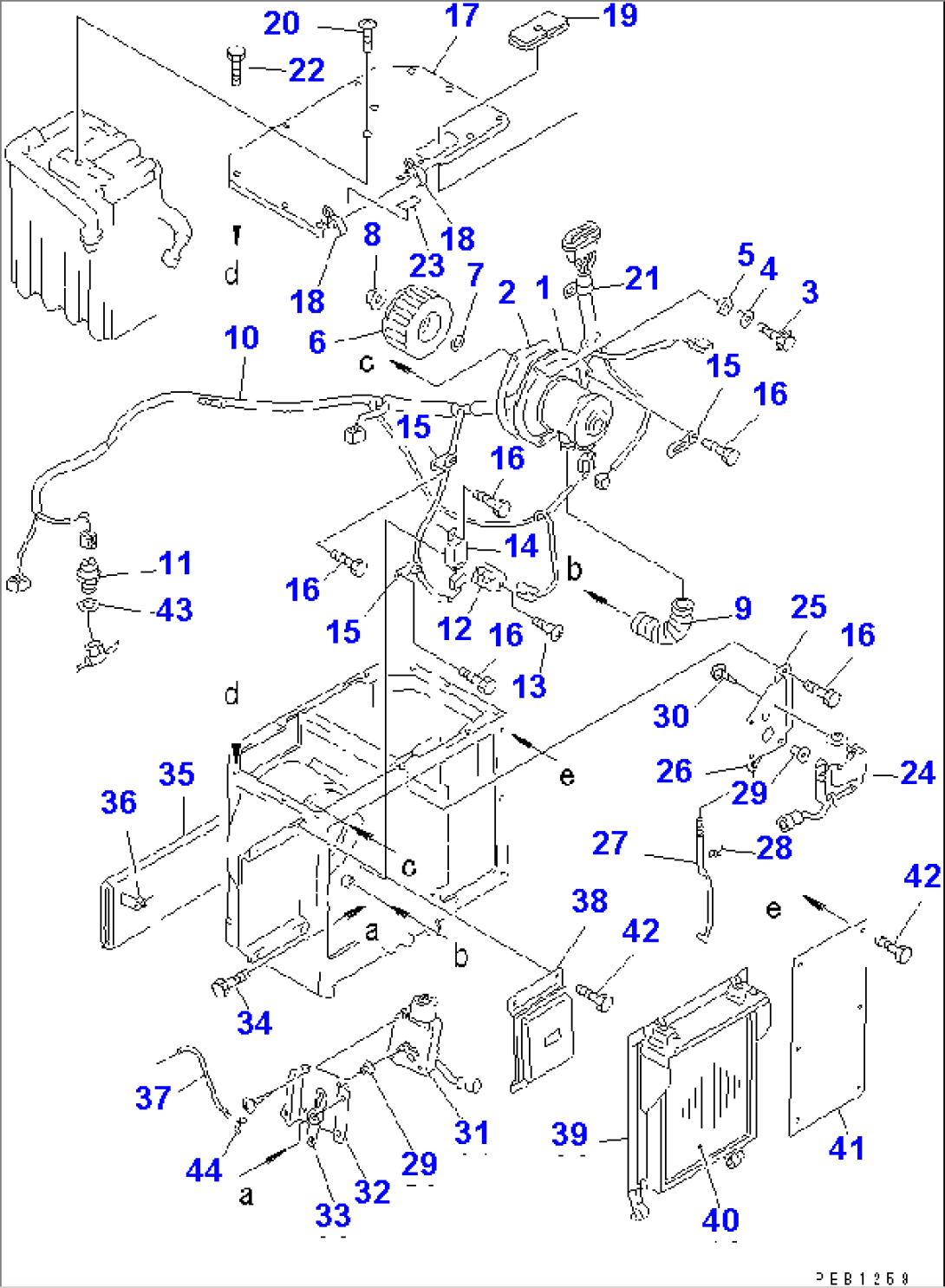

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0710-02A1 AND K0710-03A1. | ||||
| 1 | 195-Z11-5540 | MOTOR ASS'Y | 3689- | |
| 2 | 195-Z11-5560 | PACKING | 3689- | |
| 3 | 145-Z79-6660 | BOLT | 3689- | |
| 4 | 145-Z79-6670 | INSERT | 3689- | |
| 5 | 145-Z79-6680 | BUSHING | 3689- | |
| 6 | 195-Z11-5570 | FAN | 3689- | |
| 7 | 198-911-5540 | WASHER | 3689- | |
| 8 | 198-911-5530 | NUT | 3689- | |
| 9 | 195-Z11-5580 | PIPE | 3689- | |
| 10 | 195-911-7330 | WIRING HARNESS | 3689- | |
| 11 | 195-911-7340 | SWITCH | 3689- | |
| 12 | 195-Z11-5590 | RESISTOR | 3689- | |
| 13 | 01220-40416 | SCREW | 3689- | |
| 14 | 195-Z11-5840 | RELAY ASS'Y | 3689- | |
| 15 | 195-Z11-6150 | CLAMP | 3689- | |
| 16 | 01010-80616 | BOLT | 3689- | |
| 17 | 195-Z11-5892 | COVER | 3689- | |
| 18 | 195-Z11-5880 | CLAMP | 3689- | |
| 19 | 195-Z11-5810 | GROMMET | 3689- | |
| 20 | 195-Z11-5940 | SCREW | 3689- | |
| 21 | 195-Z11-7160 | CLAMP | 3689- | |
| 22 | 01010-80816 | BOLT | 3689- | |
| 23 | ND113104-0310 | PLATE, NAME | 3689- | |
| 24 | 195-Z11-7180 | ACTUATOR ASS'Y | 3689- | |
| 25 | 195-Z11-6210 | LINK | 3689- | |
| 26 | ND146625-1920 | BUSHING | 3689- | |
| 27 | 195-Z11-6252 | SHAFT | 3689- | |
| 28 | 195-Z11-6270 | SPRING | 3689- | |
| 29 | 195-Z11-6280 | BUSHING | 3689- | |
| 30 | 01370-00412 | SCREW | 3689- | |
| 31 | 195-Z11-7190 | ACTUATOR ASS'Y | 3689- | |
| 32 | 195-Z11-6220 | LINK | 3689- | |
| 33 | ND146690-1990 | CLAMP | 3689- | |
| 34 | 01010-80616 | BOLT | 3689- | |
| 35 | 195-Z11-6191 | DAMPER | 3689- | |
| 36 | 195-Z11-6640 | BUSHING | 3689- | |
| 37 | 195-Z11-6260 | SHAFT | 3689- | |
| 38 | 195-Z11-6182 | AMP ASS'Y | 3791- | |
| 38 | \0\195-Z11-6181 | AMP ASS'Y | 3689-3790 | |
| 39 | 195-Z11-5862 | HOLDER | 3689- | |
| 40 | 195-Z11-5870 | FILTER | 3689- | |
| 41 | 195-Z11-5920 | COVER | 3689- | |
| 42 | 01010-80816 | BOLT | 3689- | |
| 43 | ND146649-1170 | PACKING | 3689- | |
| 44 | 195-Z11-6270 | SPRING | 3689- |
