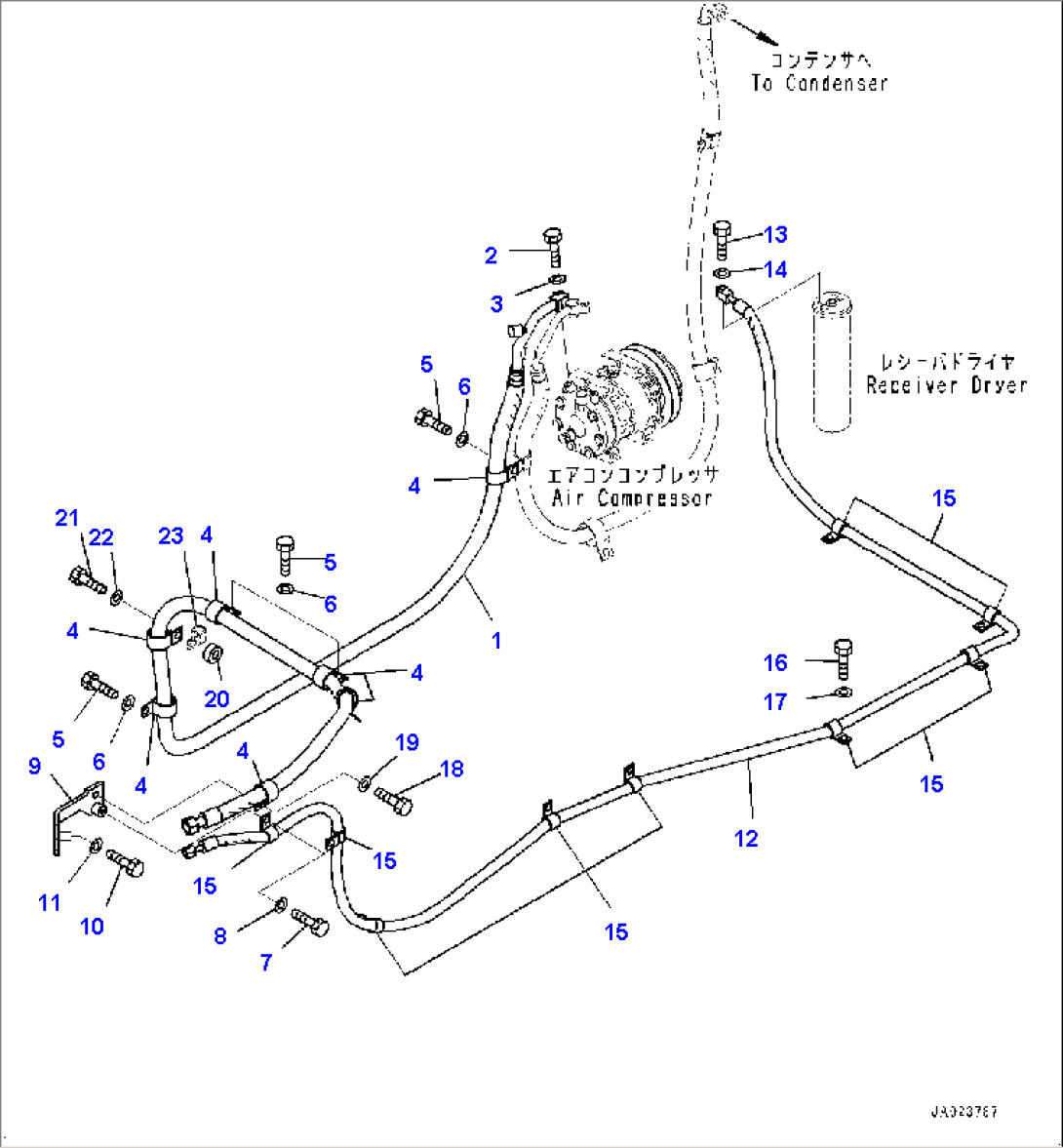

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-S62-4510 | Hose | 90216- | |
| 1 | AN51439-D0051 | O-ring | 90216- | |
| 2 | 01010-80830 | Bolt | 90216- | |
| 3 | 01643-30823 | Washer | 90216- | |
| 4 | 04434-53212 | Clip | 90216- | |
| 5 | 01010-81020 | Bolt | 90216- | |
| 6 | 01643-31032 | Washer | 90216- | |
| 7 | 01010-81020 | Bolt | 90216- | |
| 8 | 01643-31032 | Washer | 90216- | |
| 9 | 421-S62-4530 | Bracket | 90216- | |
| 10 | 01010-81025 | Bolt | 90216- | |
| 11 | 01643-31032 | Washer | 90216- | |
| 12 | 421-S62-4520 | Hose | 90216- | |
| 12 | AN51439-D0031 | O-ring | 90216- | |
| 13 | 01010-80630 | Bolt | 90216- | |
| 14 | 01643-30623 | Washer | 90216- | |
| 15 | 04434-51910 | Clip | 90216- | |
| 16 | 01010-81020 | Bolt | 90216- | |
| 17 | 01643-31032 | Washer | 90216- | |
| 18 | 01010-81025 | Bolt | 90216- | |
| 19 | 01643-31032 | Washer | 90216- | |
| 20 | 103-21-21260 | Boss | 90216- | |
| 21 | 01010-81030 | Bolt | 90216- | |
| 22 | 01643-31032 | Washer | 90216- | |
| 23 | (600-051-2200) | Clip | - | |
| (600-051-2200) | Clip | - | ||
| (600-051-2200) | Clip | - |
