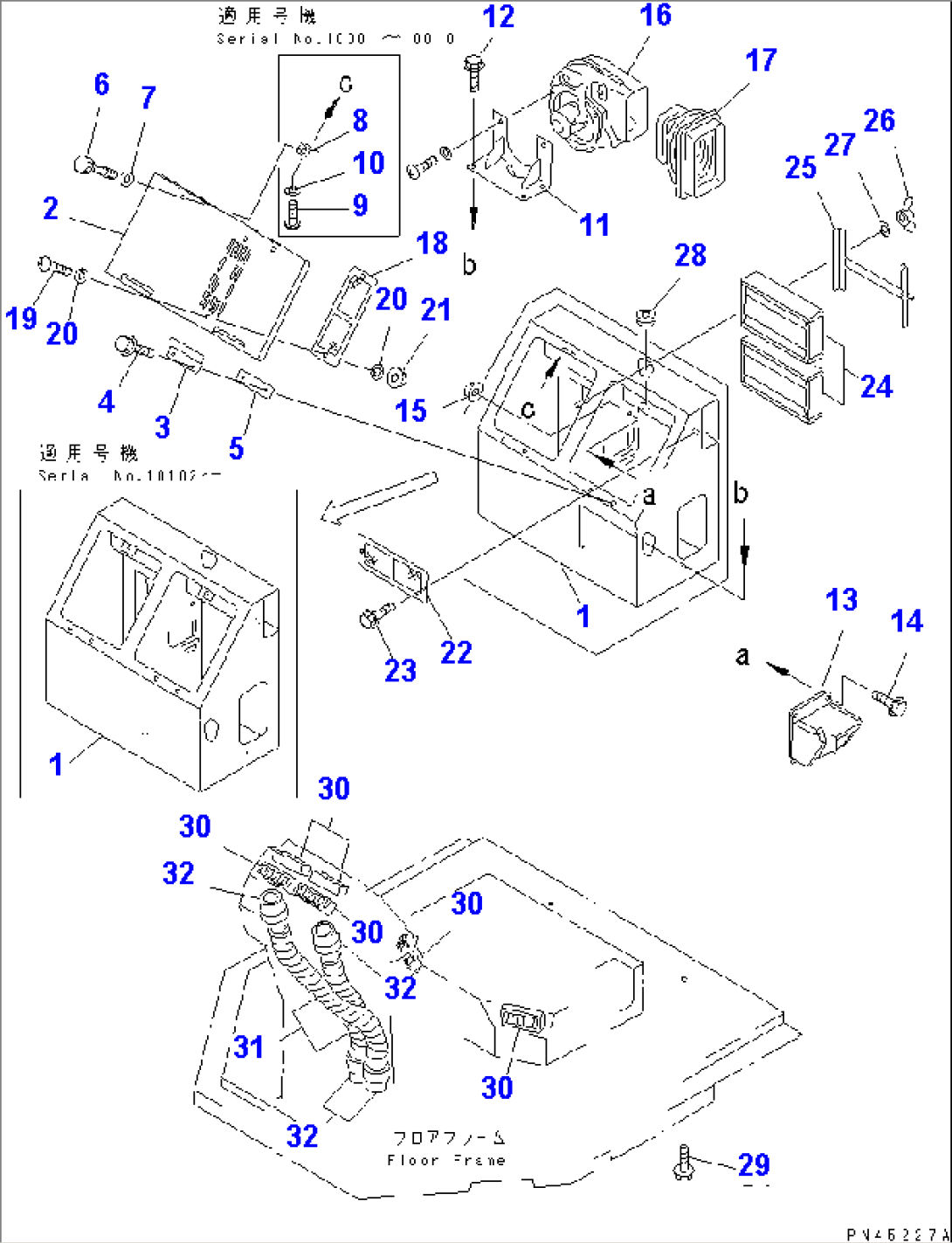

| Item | Part No. | Part Name | Qty | Serial No. |
| 428-963-1201 | BOX ASS'Y | 10102-@ | ||
| 428-963-1200 | BOX ASS'Y | 10001-10101 | ||
| 1 | 428-963-1253 | BOX | 10102-@ | |
| 1 | \3\428-963-1252 | BOX | 10001-10101 | |
| (428-963-1253,427-54-13651) | ||||
| 1 | 423-963-1310 | INSULATOR | 10001-@ | |
| 2 | 421-T43-1390 | COVER | 10001-@ | |
| 3 | 421-T43-1340 | PLATE | 10001-@ | |
| 4 | 01435-00616 | BOLT | 10001-@ | |
| 5 | 421-T43-1330 | PLATE | 10001-@ | |
| 6 | 425-54-12960 | SCREW | 10001-@ | |
| 7 | 01643-30623 | WASHER | 10001-@ | |
| 8 | 421-T43-1350 | PLATE | 10001-10010 | |
| 9 | 01220-40308 | SCREW | 10001-10010 | |
| 10 | 01601-20307 | WASHER,SPRING | 10001-10010 | |
| 11 | 425-963-1210 | BRACKET | 10001-@ | |
| 12 | 01435-00816 | BOLT | 10001-@ | |
| 13 | 425-963-1170 | DAMPER ASS'Y | 10001-@ | |
| 14 | 01435-00816 | BOLT | 10001-@ | |
| 15 | 01584-00806 | NUT | 10001-@ | |
| 16 | (425-963-1160) | BLOWER ASS'Y,(SEE FIG,5513) | 10001-@ | |
| 17 | 425-963-1180 | DUCT | 10001-@ | |
| 18 | 423-T43-1431 | FILTER | 10041-@ | |
| 18 | \1\423-T43-1430 | FILTER | 10001-10040 | |
| 19 | 01220-40820 | SCREW | 10001-@ | |
| 20 | 01643-30823 | WASHER | 10001-@ | |
| 21 | 01584-00806 | NUT | 10001-@ | |
| 22 | 423-T43-1431 | FILTER | 10041-@ | |
| 22 | 423-T43-1431 | FILTER | 10041-@ | |
| 22 | \1\423-T43-1430 | FILTER | 10001-10040 | |
| 23 | 01435-00816 | BOLT | 10001-@ | |
| 24 | 421-07-12312 | FILTER | 10001-@ | |
| 25 | 426-07-11310 | HOLDER | 10001-@ | |
| 26 | 01540-20840 | NUT,WING | 10001-@ | |
| 27 | 01643-30823 | WASHER | 10001-@ | |
| 28 | 198-911-5420 | GROMMET | 10102-@ | |
| 28 | 08037-02512 | GROMMET | 10001-10101 | |
| 29 | 01435-01220 | BOLT | 10001-@ | |
| 30 | 421-07-23870 | GRILLE | .-@ | |
| 30 | 421-07-12512 | GRILLE ASS'Y | 10001-. | |
| 31 | 421-07-12831 | HOSE | 10001-@ | |
| 32 | 421-07-12810 | CONNECTOR | 10001-@ |
