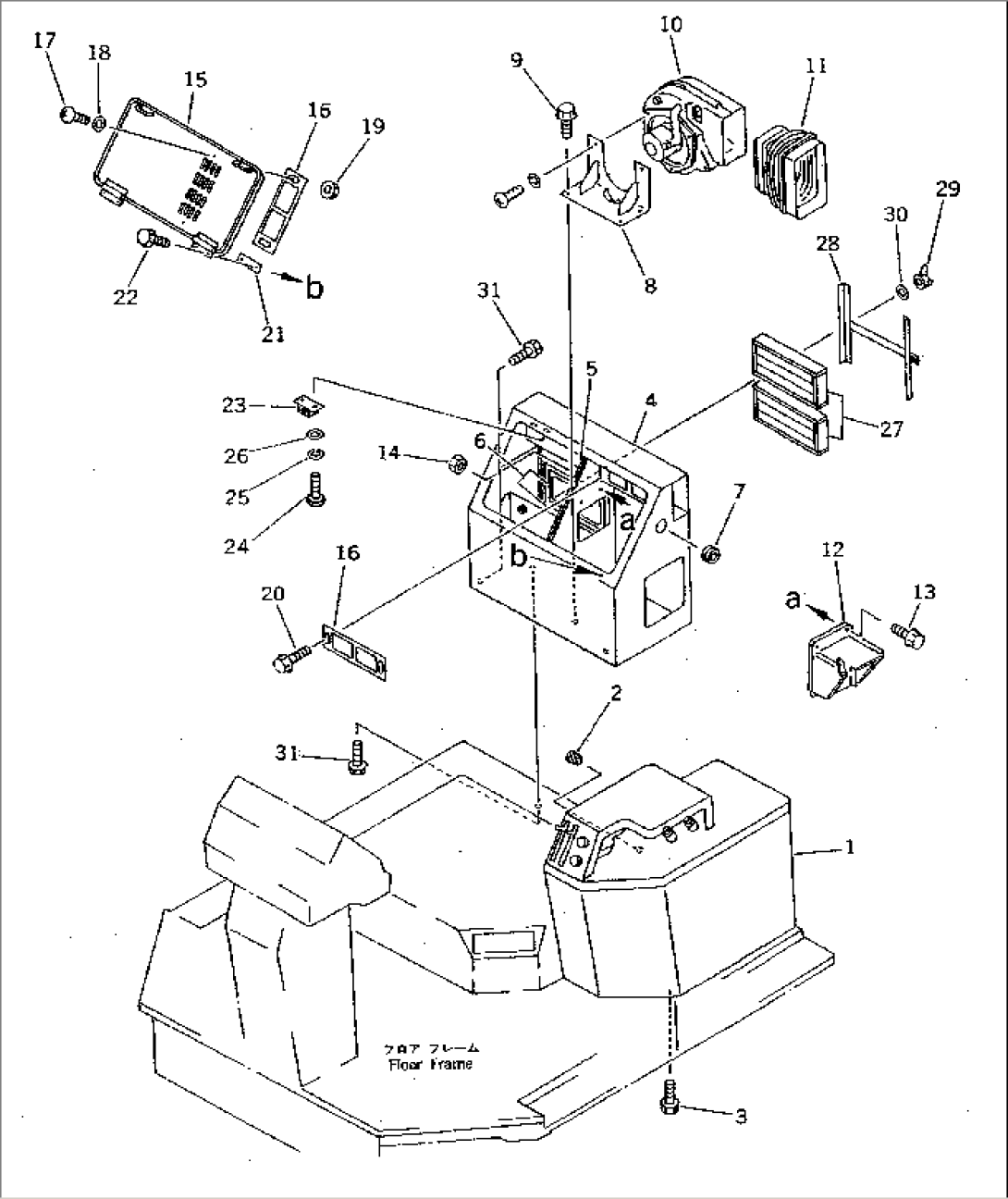

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (425-963-1111) | AIR CONDITIONER A. | 10516-@ | |
| 1 | (425-963-1110) | AIR CONDITIONER A. | 10501-10515 | |
| 2 | 07049-01215 | PLUG | 10501-@ | |
| 3 | 01435-01220 | BOLT | 10501-@ | |
| 4 | 428-963-1250 | BOX ASS'Y | 10501-10529 | |
| 5 | 421-T43-1230 | SHEET | 10501-10529 | |
| 6 | 427-963-1310 | INSULATOR | 10501-@ | |
| 7 | 08037-02512 | GROMMET | 10501-@ | |
| 8 | 425-963-1210 | BRACKET | 10501-@ | |
| 9 | 01435-00816 | BOLT | 10501-@ | |
| 10 | (425-963-1160) | BLOWER ASS'Y,(SEE FIG.5533) | 10050-@ | |
| 11 | 425-963-1180 | DUCT | 10050-@ | |
| 12 | 425-963-1170 | DAMPER ASS'Y | 10050-@ | |
| 13 | 01435-00816 | BOLT | 10501-@ | |
| 14 | 01584-00806 | NUT | 10501-@ | |
| 15 | 421-T43-1310 | COVER | 10501-10529 | |
| 16 | 423-T43-1430 | FILTER | 10501-@ | |
| 17 | 01220-40820 | SCREW | 10050-@ | |
| 18 | 01643-30823 | WASHER | 10501-@ | |
| 19 | 01584-00806 | NUT | 10501-@ | |
| 20 | 01435-00816 | BOLT | 10501-@ | |
| 21 | 421-T43-1320 | PLATE | 10501-10529 | |
| 22 | 01435-00616 | BOLT | 10501-@ | |
| 23 | 09452-14503 | CATCHER | 10501-10529 | |
| 24 | 01220-40308 | SCREW | 10501-@ | |
| 25 | 01601-20307 | WASHER,SPRING | 10501-10529 | |
| 26 | 01641-20305 | WASHER | 10501-@ | |
| 27 | 421-07-12312 | FILTER | 10001-@ | |
| 28 | 426-07-11310 | HOLDER | 10001-@ | |
| 29 | 01540-20840 | NUT,WING | 10001-@ | |
| 30 | 01643-30823 | WASHER | 10001-@ | |
| 31 | 01435-01220 | BOLT | 10501-@ |
