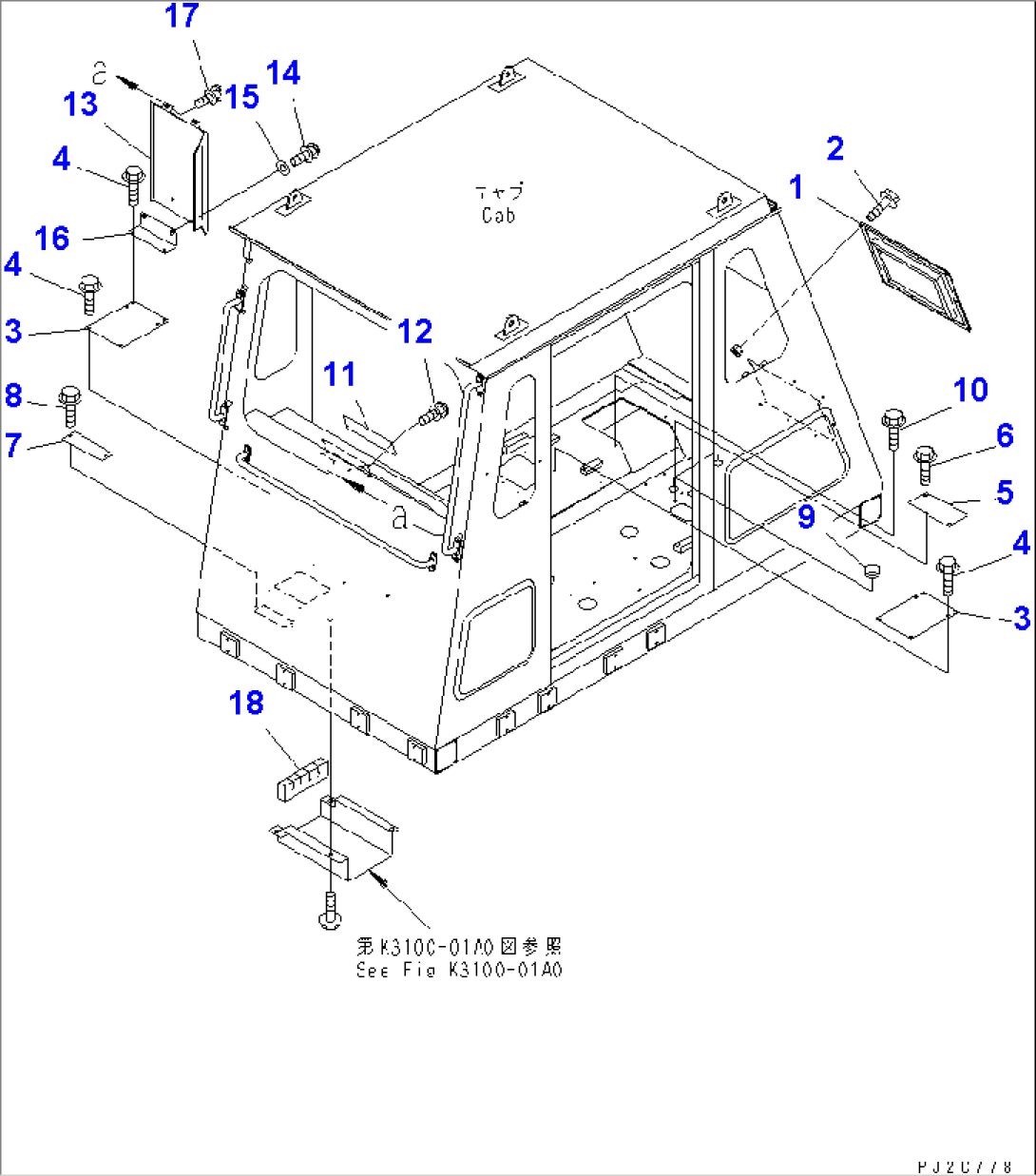

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-07-74110 | COVER | 1001-1200 | |
| 2 | 01435-00816 | BOLT | 1001-1200 | |
| 3 | 567-07-74120 | COVER | 1001-1200 | |
| 4 | 01435-00816 | BOLT | 1001-@ | |
| 5 | 567-07-74130 | COVER | 1001-1200 | |
| 6 | 01435-01016 | BOLT | 1001-1200 | |
| 7 | 567-07-71550 | COVER | 1001-1200 | |
| 8 | 01435-00816 | BOLT | 1001-1200 | |
| 9 | 09415-02512 | CAP | 1001-1200 | |
| 10 | 01435-01016 | BOLT | 1001-1200 | |
| 11 | 567-54-43921 | PLATE | 1001-1200 | |
| 12 | 01023-20616 | SCREW | 1001-@ | |
| 13 | 567-07-71590 | COVER | 1001-1200 | |
| 14 | 01023-20616 | SCREW | 1001-1200 | |
| 15 | 01640-20610 | WASHER | 1001-1200 | |
| 16 | 567-07-71610 | BRACKET | 1001-1200 | |
| 17 | 01023-20616 | SCREW | 1001-1200 | |
| 18 | 567-06-41280 | SEAL | 1001-@ |
