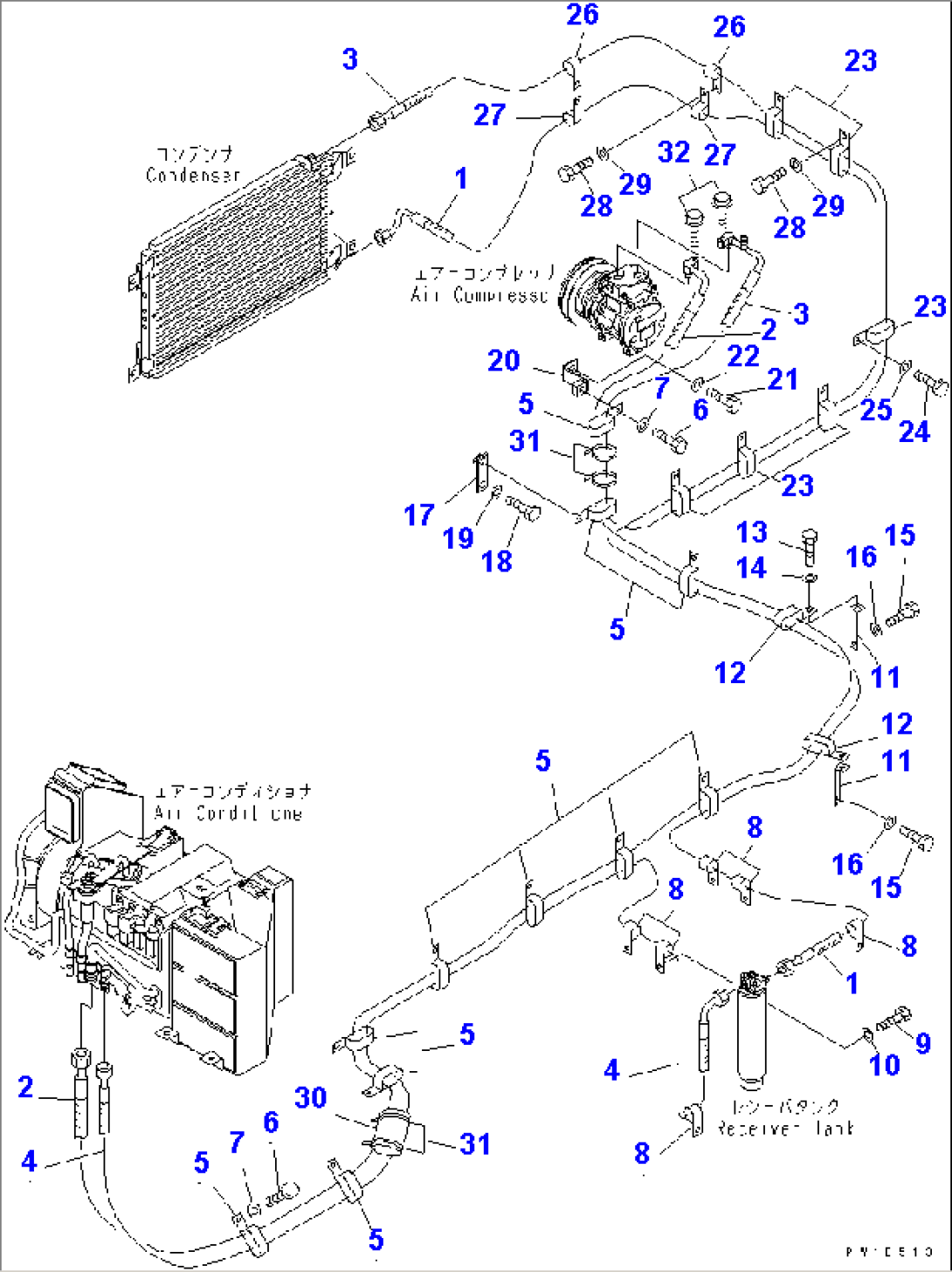

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-979-7781 | HOSE¤ 5700MM | 31001- | |
| 20Y-979-3150 | O-RING | 30001- | ||
| 2 | 209-979-7790 | HOSE¤ 5600MM | 31001- | |
| 20Y-979-3130 | O-RING | 30001- | ||
| 3 | 209-979-7531 | HOSE¤ 4200MM | 31001- | |
| 20Y-979-3140 | O-RING | 30001- | ||
| 4 | 209-979-7741 | HOSE¤ 4400MM | 31001- | |
| 20Y-979-3150 | O-RING | 30001- | ||
| 5 | 04435-52112 | CLIP | 31001- | |
| 6 | 01010-81225 | BOLT | 31001- | |
| 7 | 01643-31232 | WASHER | 31001- | |
| 8 | 04434-51612 | CLIP | 31001- | |
| 9 | 01010-81225 | BOLT | 31001- | |
| 10 | 01643-31232 | WASHER | 31001- | |
| 11 | 195-06-41930 | BRACKET | 31001- | |
| 12 | 04435-52110 | CLIP | 31001- | |
| 13 | 01010-81020 | BOLT | 31001- | |
| 14 | 01643-31032 | WASHER | 31001- | |
| 15 | 01010-81230 | BOLT | 31001- | |
| 16 | 01643-31232 | WASHER | 31001- | |
| 17 | 209-04-77140 | PLATE | 31001- | |
| 18 | 01010-81225 | BOLT | 31001- | |
| 19 | 01643-31232 | WASHER | 31001- | |
| 20 | 209-979-7980 | PLATE | 31001- | |
| 21 | 01010-81225 | BOLT | 31001- | |
| 22 | 01643-31232 | WASHER | 31001- | |
| 23 | 04435-51912 | CLIP | 31001- | |
| 24 | 01010-81225 | BOLT | 31001- | |
| 25 | 01643-31232 | WASHER | 31001- | |
| 26 | 04434-51912 | CLIP | 31001- | |
| 27 | 04434-51612 | CLIP | 31001- | |
| 28 | 01010-81225 | BOLT | 31001- | |
| 29 | 01643-31232 | WASHER | 31001- | |
| 30 | 205-62-53780 | COVER | 31001- | |
| 31 | 08034-20536 | BAND | 31001- | |
| 32 | 01435-00630 | BOLT | 31001- |
