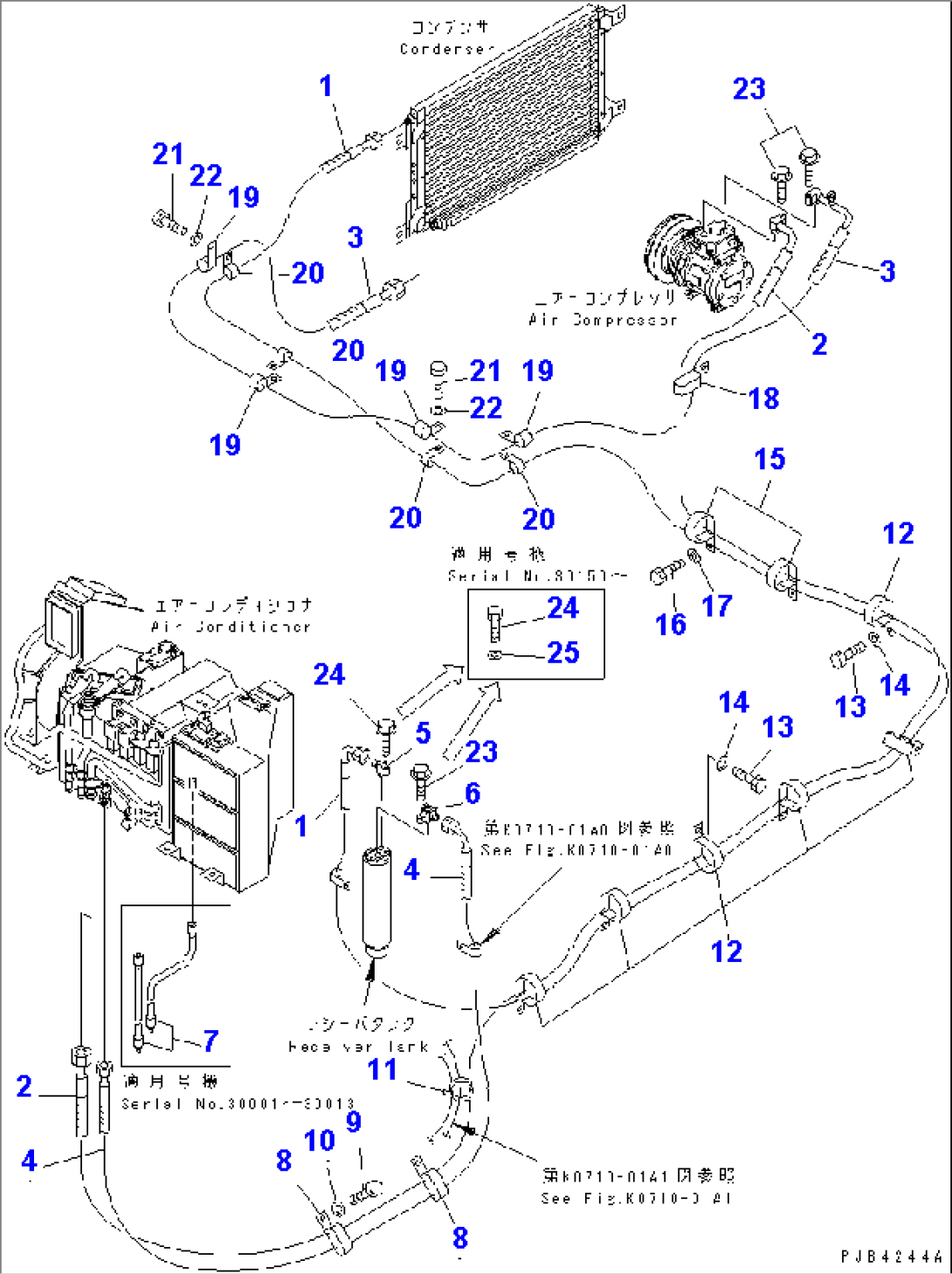

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-979-7421 | HOSE | 30001-30999 | |
| 1 | 20Y-979-3150 | O-RING | 30001-@ | |
| 2 | 209-979-7430 | HOSE | 30001-30999 | |
| 2 | 20Y-979-3130 | O-RING | 30001-@ | |
| 3 | 209-979-7440 | HOSE | 30001-30999 | |
| 3 | 20Y-979-3140 | O-RING | 30001-@ | |
| 4 | 209-979-7451 | HOSE | 30001-30999 | |
| 4 | 20Y-979-3150 | O-RING | 30001-@ | |
| 5 | 209-979-7460 | JOINT | 30001-@ | |
| 5 | 20Y-979-3150 | O-RING | 30001-@ | |
| 6 | 17A-911-1671 | JOINT | 30001-@ | |
| 6 | 20Y-979-3150 | O-RING | 30001-@ | |
| 7 | (209-979-1250) | HOSE | 30001-30013 | |
| 8 | 04435-52112 | CLIP | 30001-30999 | |
| 9 | 01010-81230 | BOLT | 30001-30999 | |
| 10 | 01643-31232 | WASHER | 30001-30999 | |
| 11 | 08034-00536 | BAND | 30001-30999 | |
| 12 | 20Y-62-15950 | CLIP | 30001-30999 | |
| 13 | 01010-81225 | BOLT | 30001-30999 | |
| 14 | 01643-31232 | WASHER | 30001-30999 | |
| 15 | 20Y-62-15951 | CLIP | 30001-30999 | |
| 16 | 01010-81225 | BOLT | 30001-30999 | |
| 17 | 01643-31232 | WASHER | 30001-30999 | |
| 18 | 04435-52110 | CLIP | 30001-30999 | |
| 19 | 04434-51912 | CLIP | 30001-30999 | |
| 20 | 04434-51612 | CLIP | 30001-30999 | |
| 21 | 01010-81230 | BOLT | 30001-30999 | |
| 22 | 01643-31232 | WASHER | 30001-30999 | |
| 23 | 01435-00630 | BOLT | 30001-30999 | |
| 24 | 01010-80625 | BOLT | 30150-@ | |
| 24 | 01435-00625 | BOLT | 30001-30149 | |
| 25 | 01643-30623 | WASHER | 30150-@ |
