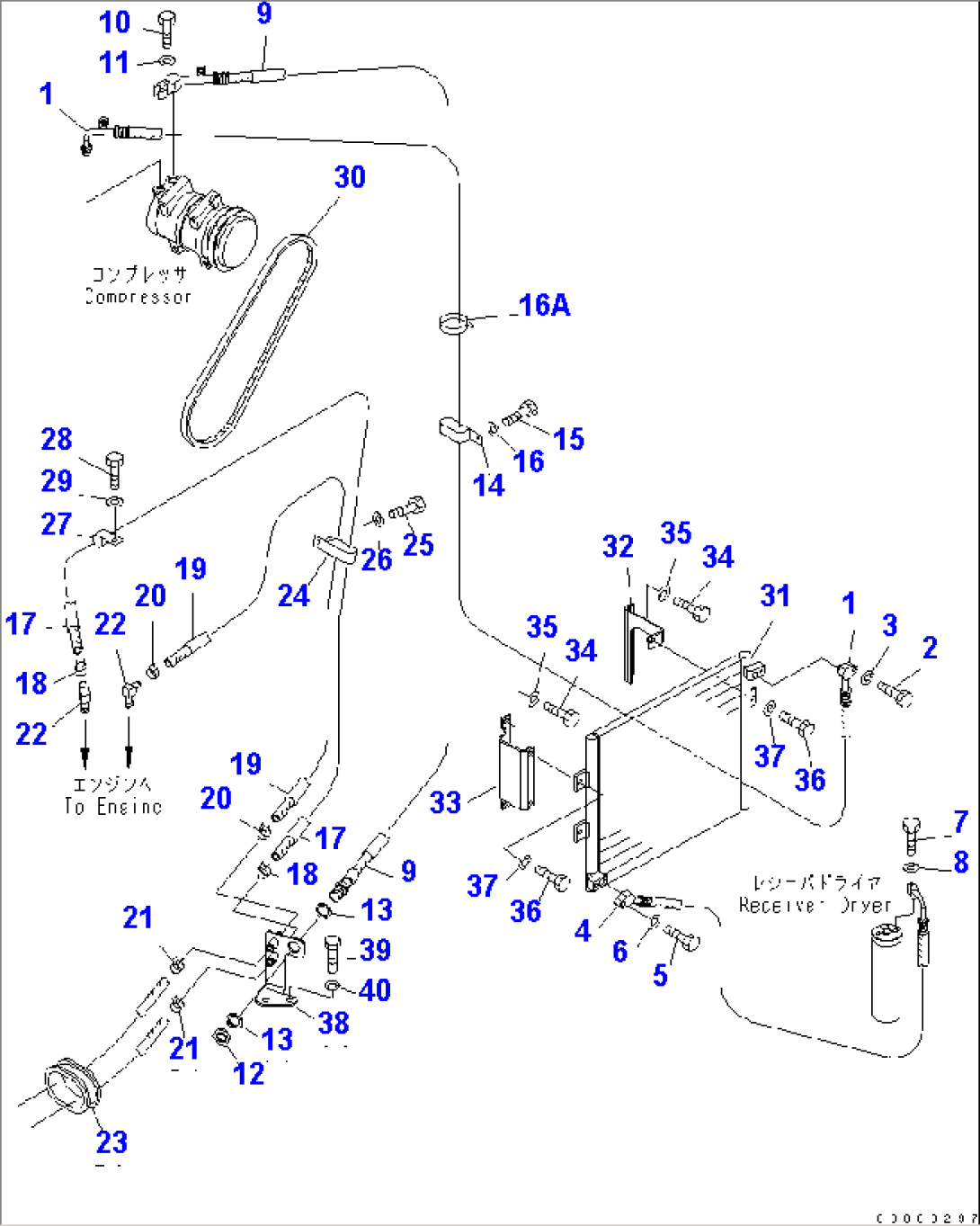

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21W-979-4160 | HOSE | 22001- | |
| 2 | 01010-80835 | BOLT | 22001- | |
| 3 | 01643-30823 | WASHER | 22001- | |
| 4 | 21W-979-4151 | HOSE | 22001- | |
| 5 | 01010-80835 | BOLT | 22001- | |
| 6 | 01643-30823 | WASHER | 22001- | |
| 7 | 01010-80630 | BOLT | 22001- | |
| 8 | 01643-30623 | WASHER | 22001- | |
| 9 | 21W-979-4140 | HOSE | 22001- | |
| 10 | 01050-51045 | BOLT | 22001- | |
| 11 | 01643-31032 | WASHER | 22001- | |
| 12 | 21W-979-4330 | NUT | 22001- | |
| 13 | 21W-979-4340 | WASHER | 22001- | |
| 14 | 22M-977-1140 | CLIP | 22001- | |
| 15 | 01010-81020 | BOLT | 22001- | |
| 16 | 01643-31032 | WASHER | 22001- | |
| 16A | 08034-20536 | BAND | 22001- | |
| 17 | 21W-979-4311 | HOSE ASS'Y | 22001- | |
| 18 | 11Y-09-11160 | CLIP | 22001- | |
| 19 | 21W-979-4321 | HOSE ASS'Y | 22001- | |
| 20 | 11Y-09-11160 | CLIP | 22001- | |
| 21 | 09479-02400 | CLAMP | 22001- | |
| 22 | 20M-977-8130 | ELBOW | 23501- | |
| 20M-977-8130 | ELBOW | 22001-23500 | ||
| 23 | 21W-979-4380 | GROMMET | 22001- | |
| 24 | 196-911-3310 | CLIP | 22001- | |
| 25 | 01010-81220 | BOLT | 22001- | |
| 26 | 01643-31232 | WASHER | 22001- | |
| 27 | 04434-52711 | CLIP | 22001- | |
| 28 | 01010-81020 | BOLT | 22001- | |
| 29 | 01643-31032 | WASHER | 22001- | |
| 30 | 04120-21743 | V-BELT | 22001- | |
| 31 | 21W-979-4120 | CONDENSER ASS'Y | 22001- | |
| 32 | 21W-979-4191 | BRACKET | 22001- | |
| 33 | 21W-979-4211 | BRACKET | 22001- | |
| 34 | 01010-80820 | BOLT | 22001- | |
| 35 | 01643-30823 | WASHER | 22001- | |
| 36 | 01010-80820 | BOLT | 22001- | |
| 37 | 01643-30823 | WASHER | 22001- | |
| 38 | 21W-979-4281 | JOINT | 22001- | |
| 39 | 01010-81225 | BOLT | 22001- | |
| 40 | 01643-31232 | WASHER | 22001- |
